Installation

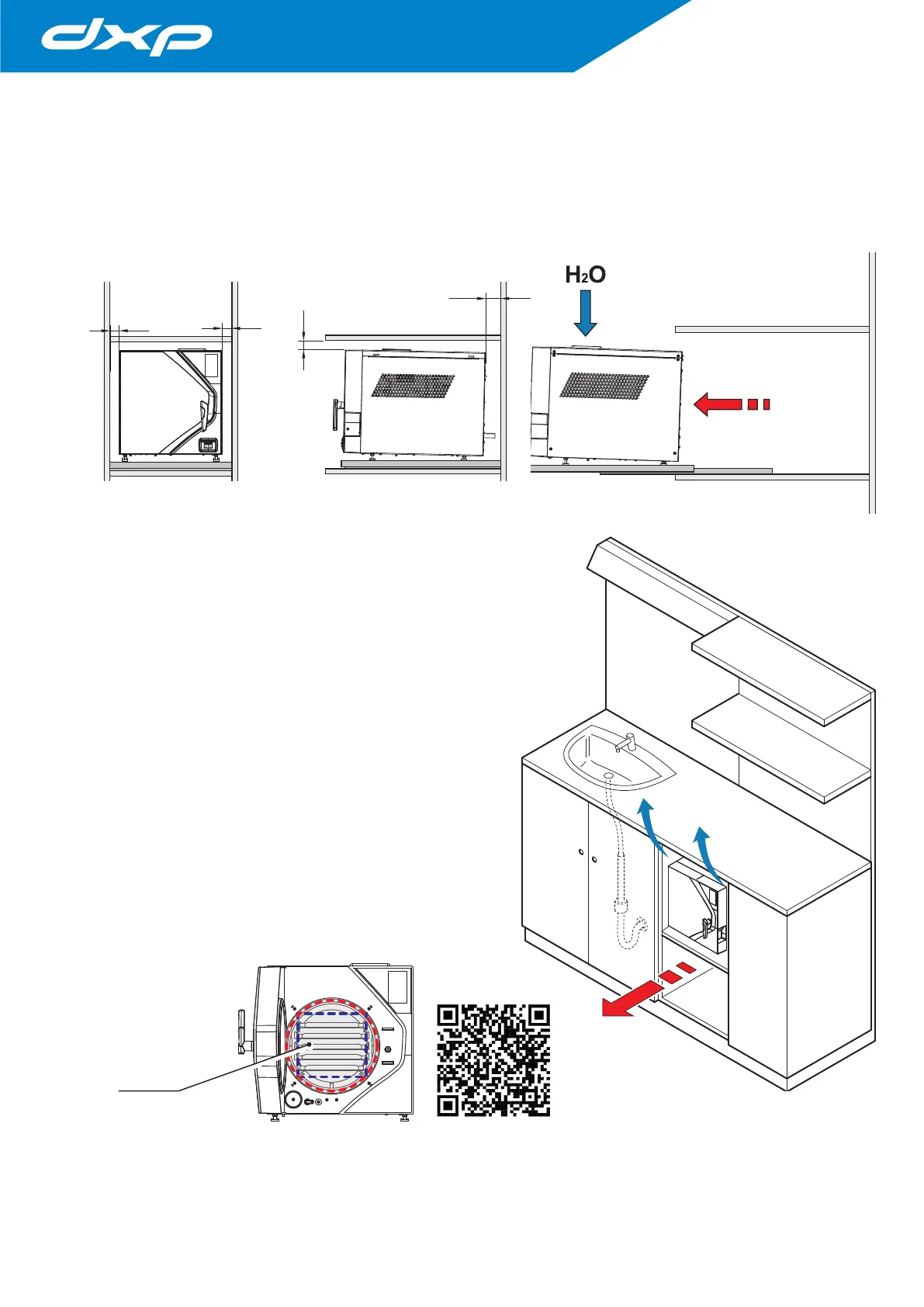

In the case of built-in installation with a shelf above the device, a space of at least 5 cm should be left between the
bottom of the shelf and the top of the device.
Place the device on a mobile shelf with a sliding rail extraction system to allow filling of the deionized water tank,
positioned on the top.
For installation inside a cabinet, leave a ventilation
space of at least 5-6 cm between the bottom of the
shelf and the top of the device.
Place the device on a mobile shelf with a sliding rail
extraction system to allow filling of the deionized water
tank, positioned on the top, and access to the main
switch at the back of the device.
If the drain pipe under an adjacent sink is used for the
drain of the Purity device (optional), place the device at
a greater height than the trap to allow proper drainage
of the liquids by gravity.
STERILIZATION CHAMBER
LOAD CAPACITY
The trays of varying widths to fit the circular shape
of the sterilization chamber allow an increase of loading
capacity.
+ 20%
> 5 cm
> 5 cm
> 5 cm
> 5 cm
