39

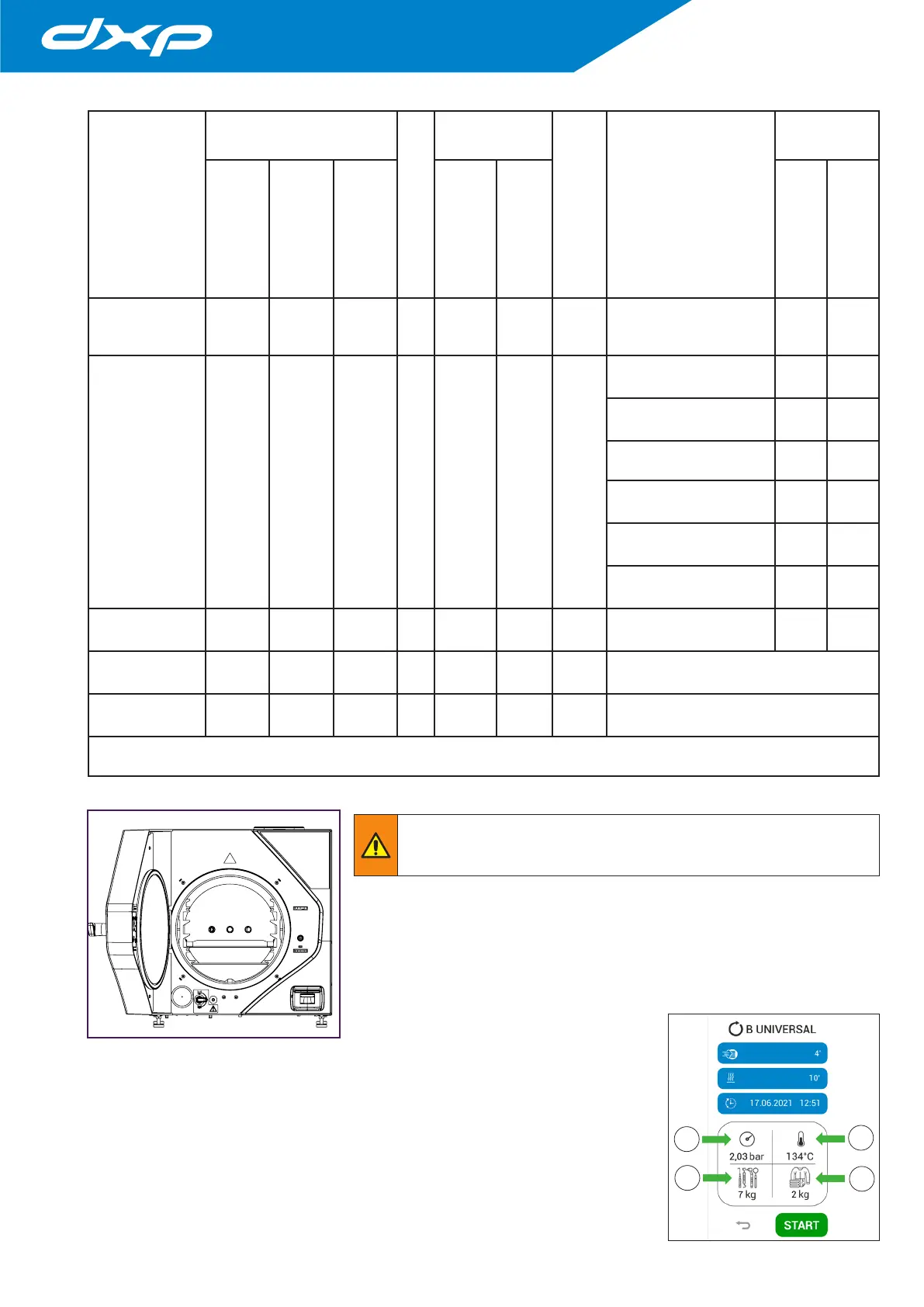

Using the sterilizer
Program
Parameters
Cycle class
Process
values
Cycle total time
(with maximum load)
Type of Load
Maximum
load*
Sterilization
time
Pre-vacuum
phases
Drying time
Temperature
Pressure
DXPclave 18
DXPclave 24
B FAST** 3’30” 3 5’ B 134 °C
2,03
bar
29’
solids, hollows
single wrapped and
unwrapped instruments
0,5 kg 0,7 kg
B 121 20’30” 3 16’ B 121 °C
1,04
bar
82’
Unrapped solid and
hollow instruments
5 kg 7 kg
Wrapped solid and
hollow loads
3,5 kg 5 kg
Double wrapped solid
and hollow instruments
2 kg 3,5 kg
Unwrapped porous
instruments
1 kg 2 kg
Wrapped porous
instruments
1 kg 2 kg
Double wrapped
porous instruments
1 kg 2 kg
S FAST 3’30” 2 7’ S 134 °C
2,03
bar
32’
Unrapped solid
instruments
1 kg 2 kg
B&D HELIX 3’30” 3 4’ / 134 °C
2,03
bar
/
Helix Test Pack or equivalent
B&D Test Pack or equivalent
VACUUM / / / / <35°C
-0,86
bar
/ Empty Chamber
*: Load including trays.
**The B Fast program must be carried out using a single tray, to be
placed in the second slot from the bottom.
The S Fast doesn’t guarantee class B sterilization.
After choosing the cycle, a new menu appears on the screen, containing various
information. The central box summarizes the main data relating to the chosen
cycle (pressure [1], temperature [2], maximum solid load [3] and maximum porous
load [4] ), while the three buttons located in the upper area allow you to modify the
following sterilization process parameters:
• Changing the sterilization time;
• Changing the drying time;
• Cycle start delay.
1
3
2
4
