Oceanic GEO 2 - Norm Surface Alt 1 Display; Norm Surface Alt 2 Display

39

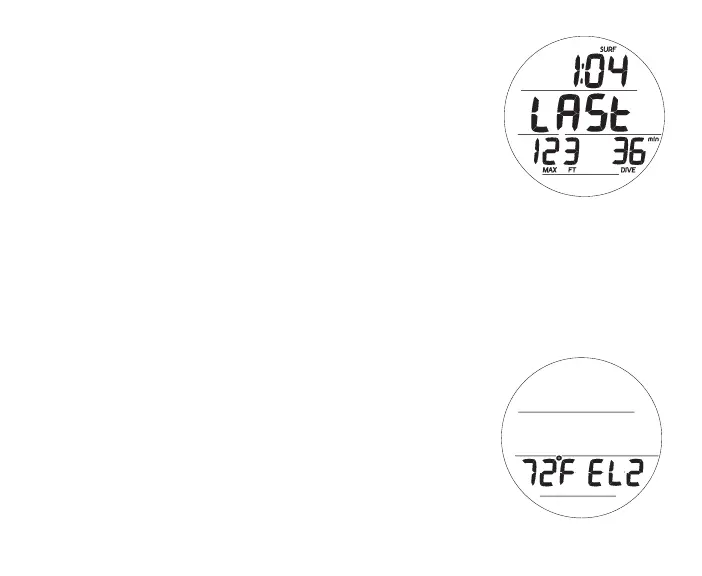

NORM SURF ALT 1, information includes (Fig. 30):
> SI* (hr:min) with SURF icon, prior to Last dive
> Graphic LAST, indicating data is for dive previously
conducted while still in NORM mode
> Max Depth* of dive previously conducted while still in
NORM mode with MAX and FT (or M) icons
> EDT* (Elapsed Dive Time up to 999 min) with DIVE and min
icons
* dashes if no previous dive conducted
• A (< 2 sec) - to access ALT 2.
• A (hold) - to scroll forward through Menu items.
• M (< 2 sec) - to step back to Main.
• L (press) - to activate Backlight.
NORM SURF ALT 2, information includes (Fig. 31):
> Temperature with ° icon and graphic F (or C)
> Altitude graphic, if EL2 (to EL7), blank if Sea level
• A (< 2 sec) - to access ALT 3 (if a Nitrox dive has been
conducted, bypassed to Fly/Sat if not).
• A (hold) - to scroll forward through Menu items.
• M (< 2 sec) - to step back to ALT 1.
• L (press) - to activate Backlight.
Fig.31-NORMSURFALT2
Fig.30-NORMSURFALT1
(Lastdive'sdata)
