DV 3 (DELAYED VIOLATION 3)
Upon descent deeper than the MOD**, the audible will sound
and the alarm LED will flash. Also, the Up Arrow will flash, and
Current Depth and Max Depth will only indicate 3 dashes ( - - - )
signifying that you are too deep (Fig. 107).
**MOD is Max Operating Depth. Refer to the Specifications in the
back.
Upon ascending above the MOD, Current Depth will be re-
stored. Max Depth will display 3 dashes for the remainder of
that dive and will be recorded in the Log.

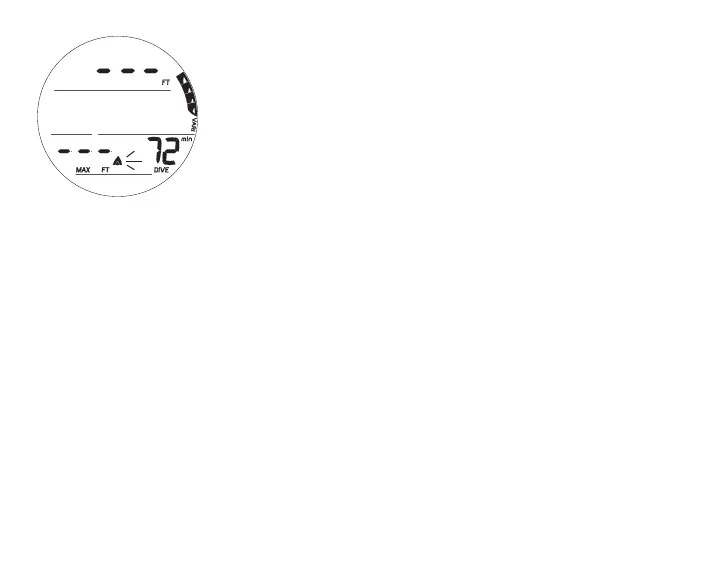

Fig.107-GAUGDIVEDV3
