Oki MB491 - Settings for each Dialing Type

Basic Settings for Faxing (for MB471, MB491, ES4191 MFP only)
-43-
Setup
1
Connecting PBX, Home Telephone or
Business Phone
Plug the [Telephone cable] connected to the
[Public Line (Analog)] into the [LINE
connection] of your machine.
Remove the telephone connector cover.
Plug the telephone cable connected to a control
device including PBX, etc. into the [TEL
connection] of your machine.
- Home Telephone -
In general, many telephones are connected with
one or two telephone lines, and the internal
communication and door phone can be done. This
is simple switching equipment for household.
- Business Phone -
In general, it can accommodate more than two
telephone lines, these telephone lines can be
shared with a lot of telephones, and the internal
communication can be done. This is simple
switching equipment.
Connecting as an Internal Telephone
Plug the [Telephone cable] connected to a
control device including PBX, etc. into the [LINE
connection] of your machine.
Memo
z Set [PBX Line] to [ON]. Refer to "PBX Connecting" P. 45
in detail.
Settings for each dialing type
The factory default [MF (Tone)/DP (Pulse)] is
set to [Tone].
z For push-button phones, if you hear a "Beep, boop,
beep" sound, leave [MF (Tone)/DP (Pulse)] as
[Tone].
z For push-button type phones, if you do not hear a
"Beep, boop, beep" sound, or if you are using a
rotating-dial type phone, set [MF (Tone)/DP
(Pulse)] to [Pulse].
 How to Configure Settings
1
Press the <SETTING> key on the
operator panel.
2 Press the to select [Admin Setup],
and press .
3 Enter the administrator password.
The factory default password is "aaaaaa".
4 Select [Enter], and press .
5 Press the to select [User Install],
and press .
6 Press , select [MF (Tone)/DP
(Pulse)], and then press .

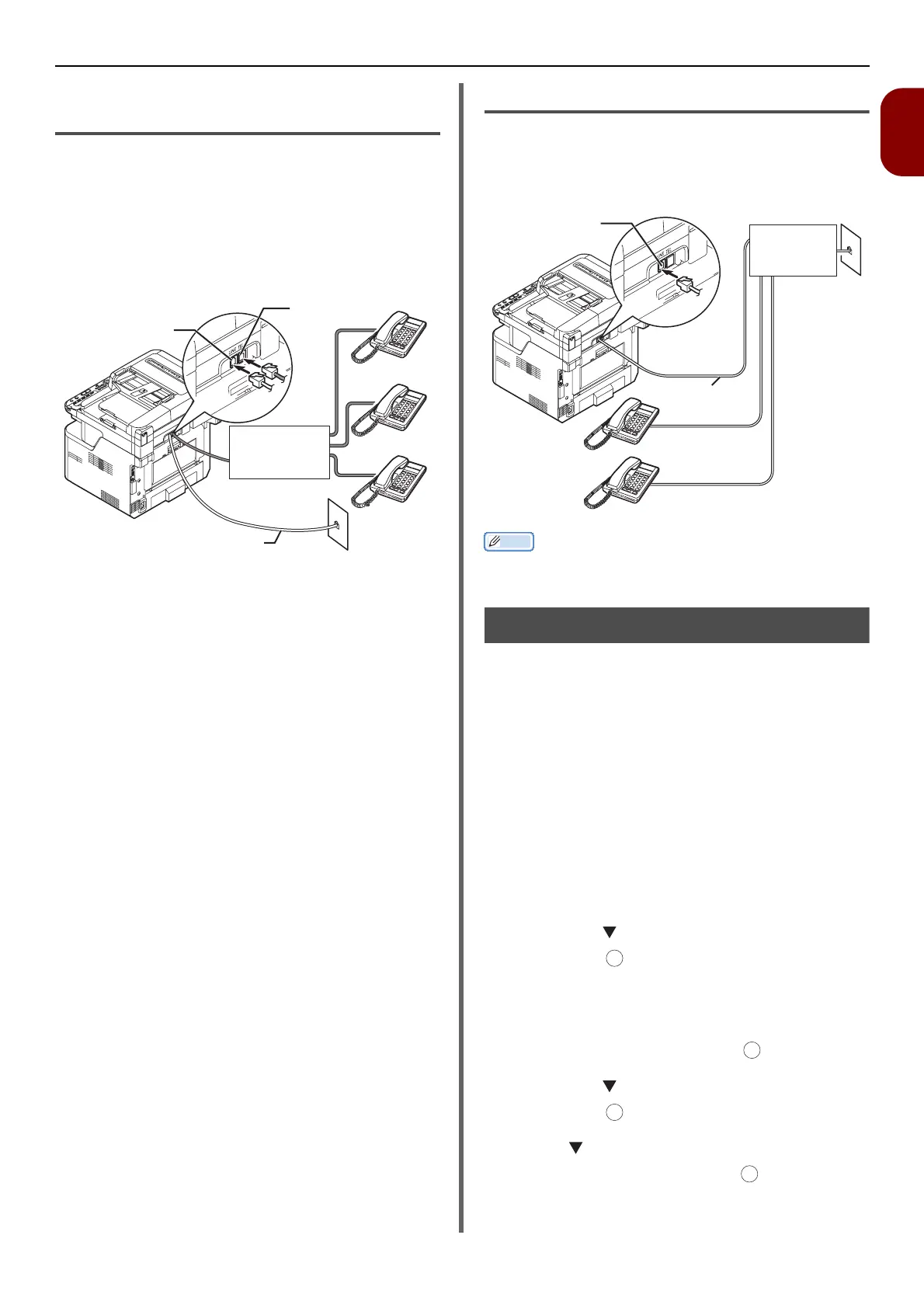

LINE connection
TEL connection
Telephone cable
Public Line
(Analog)
Control device
including PBX,
etc.
LINE connection
Public Line
(Analog)
Telephone cable
Control device
including PBX,
etc.
OK
OK
OK
OK
