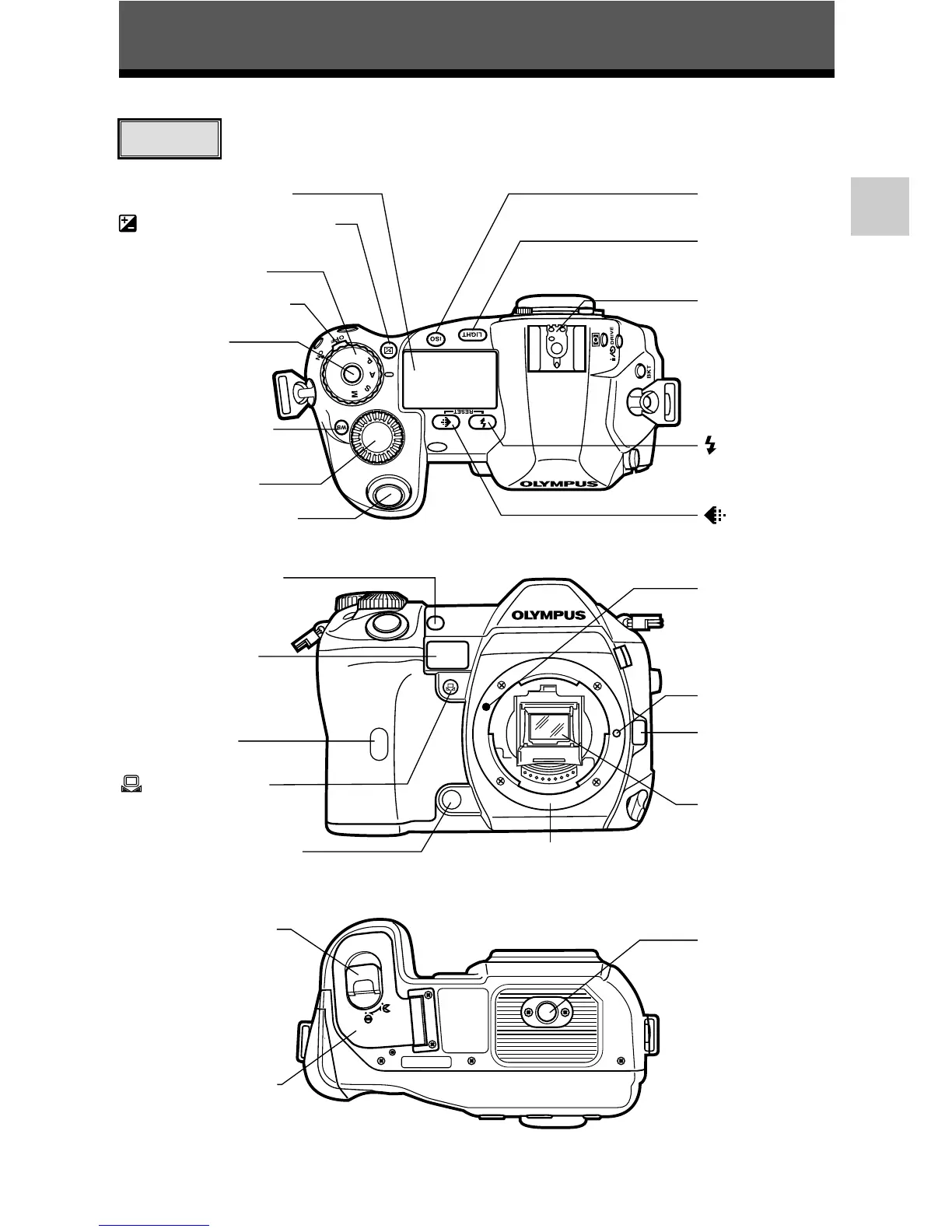

Names of parts
Camera
Hot shoe
~ P. 99
LIGHT (Control
panel illumination)
button
~ P. 37
ISO button
~ P. 83
Control panel ~ P. 11
(Exposure compensation)
button
~ P. 65
Mode dial
~ P. 56
Power switch
~ P. 26
Mode dial lock
~ P. 56
Sub dial
~ P. 33
WB (White balance)
button ~ P. 87
(Record
mode) button
~ P. 81
Shutter button ~ P. 49
(Flash mode)
button
~ P. 103
White balance sensor
~ P. 85
Self-timer/Remote
control lamp,
AF illuminator
~ P. 55, 74-76
Remote control
receiver
~ P. 76
(One-touch WB)
button
~ P. 89
Preview button
~ P. 65
Lens release
button
~ P. 22
Lens lock pin
Mirror
~ P. 171
Mount
Lens attachment
mark
~ P. 22
Tripod socket
Battery compartment
lock
~ P. 18
Battery compartment
cover
~ P. 18
(Attach the lens after removing the body cap
from the camera to prevent dust and dirt from
entering the camera body.)
