Olympus EVOLT E-500 - Control Panel Screen

194
Names of parts
12
Information

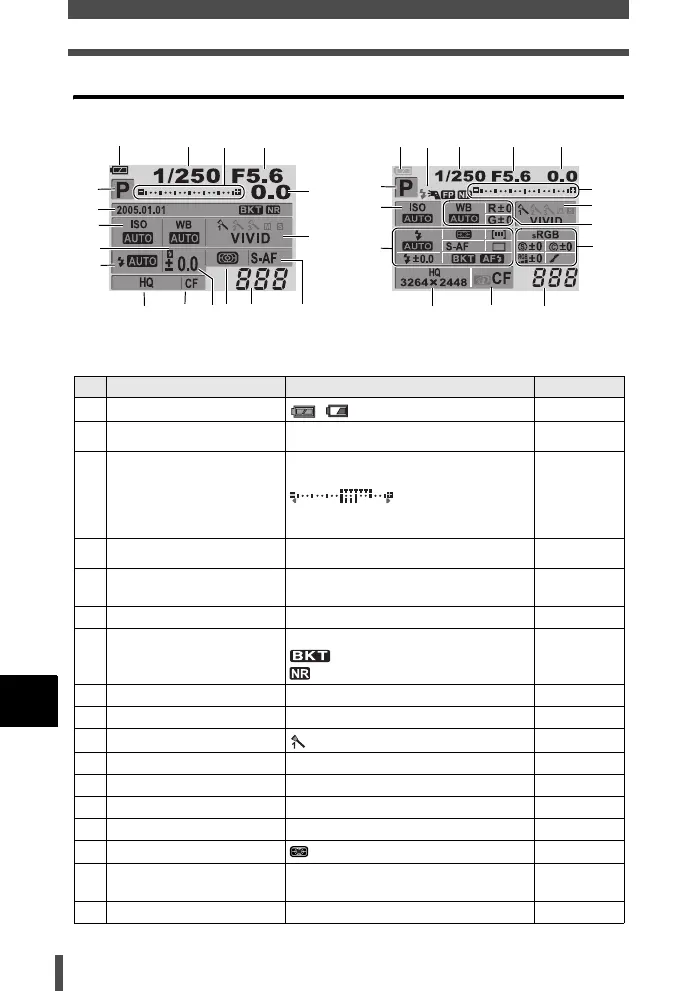

Control panel screen
Items Indication examples Ref. page
1 Battery check
,
–
2 Shutter speed 1/2000
P. 42 - P. 45
3
Exposure compensation
indicator
Exposure level indicator
Flash intensity level
indicator
P. 8 0
P. 4 5
P. 5 6
4 Aperture value F2.8
P. 41 - P. 45
5 Exposure mode
AUTO, P, A, S, M, i, l, &, j,
/
P. 3 4
6 Exposure compensation +2.0 P. 79
7
Date/Time
Auto bracketing
Noise reduction
’05.12.23, 21:56
P. 138
P. 4 9
P. 9 5
8 ISO AUTO, 100, 200, 400 P. 82
9 White balance 1, 5 P. 87
10 Picture mode
VIVID
P. 9 3
11 Flash mode H, # P. 5 3
12 Record mode RAW+SHQ P. 31
13 Card xD, CF P. 26
14 Flash intensity control #+2.0 P. 56
15 Metering mode
, 4, 5, 5HI, 5SH
P. 7 7
16
Number of storable still
pictures
135 –
17 Focus mode S-AF P. 70
Normal Detailed
1234 1246
5
7
8
9
11
6
10
17
12 13 14 16
22 13 16
5
8
20
3
10
19
21
15
18
