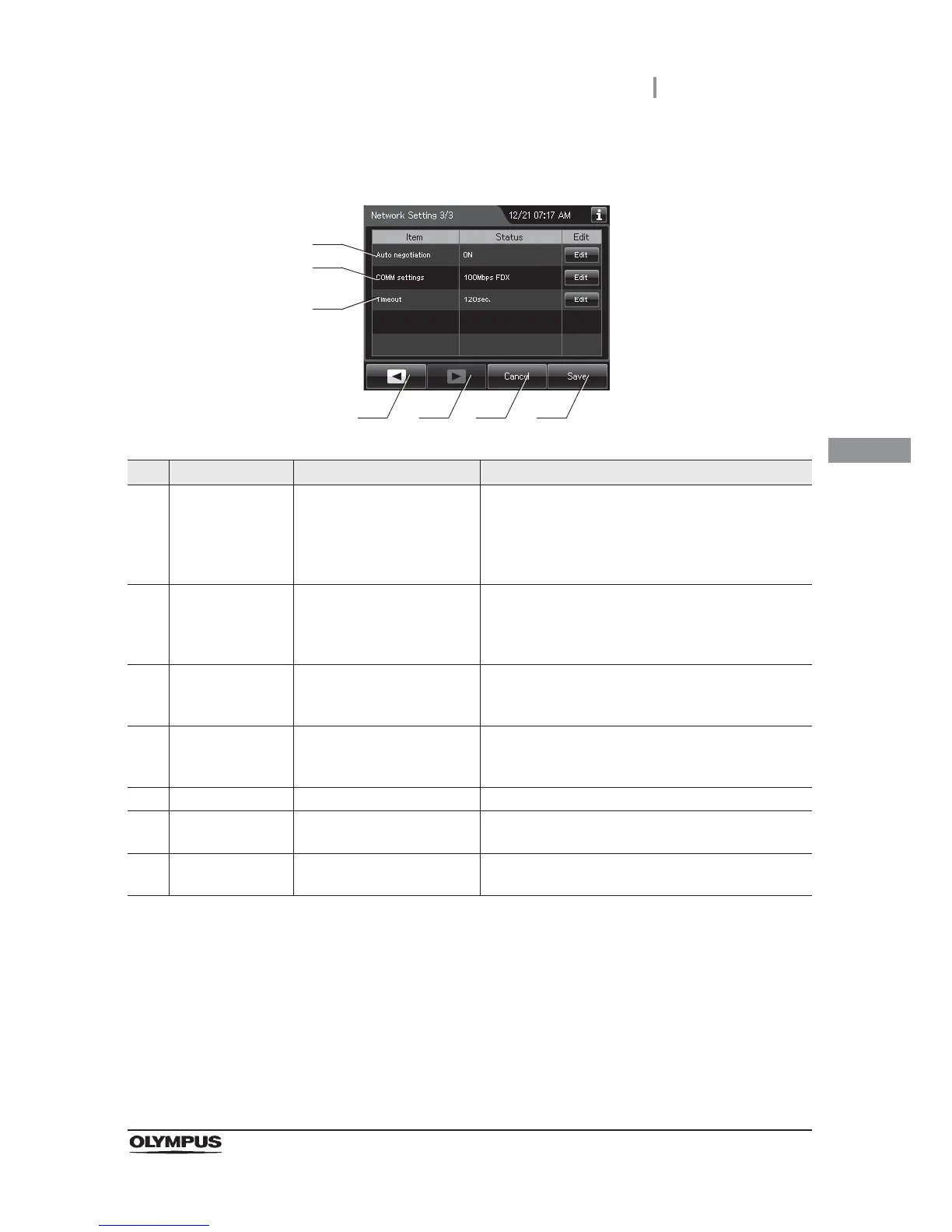

No. Item/Button Setting options Description
1 Auto negotiation ON (default),
OFF
The status of auto negotiation is displayed.
Each press of the “Edit” button switches the setting
values alternately.
OFF: The auto negotiation is disabled.
ON: The auto negotiation is enabled.
2 COMM Settings 100 Mbps full duplex (default),
100 Mbps half duplex,
10 Mbps full duplex,
10 Mbps half duplex
The communication method is displayed.
Each press of the “Edit” button switches the
communication method.
3 Timeout 1 – 255 seconds
(default: 120 seconds)
The time-out time is displayed.
Press the “Edit” button to open the screen for use in
input.
4 Previous page
button
– Press to return to the previous page. When there is no
further page to turn back to, the button turns gray and
becomes unavailable.
5 Next page button – This button is unavailable on this page
6 Cancel – Returns to the Setting menu without saving the edited
information.
7 Save – Returns to the Setting menu after saving the edited
information.
4 Press the “Save” button to save the edited information.
1
4 5 6 7
2
3
To Next Page
