© 2011 Omnicell, Inc. OmniRx Service Guide/67-2023 Rev F
Electronics Sled 1-5
Printer Removal
5. Remove the four screws (two on each side) that secure the printer assembly to the cover.

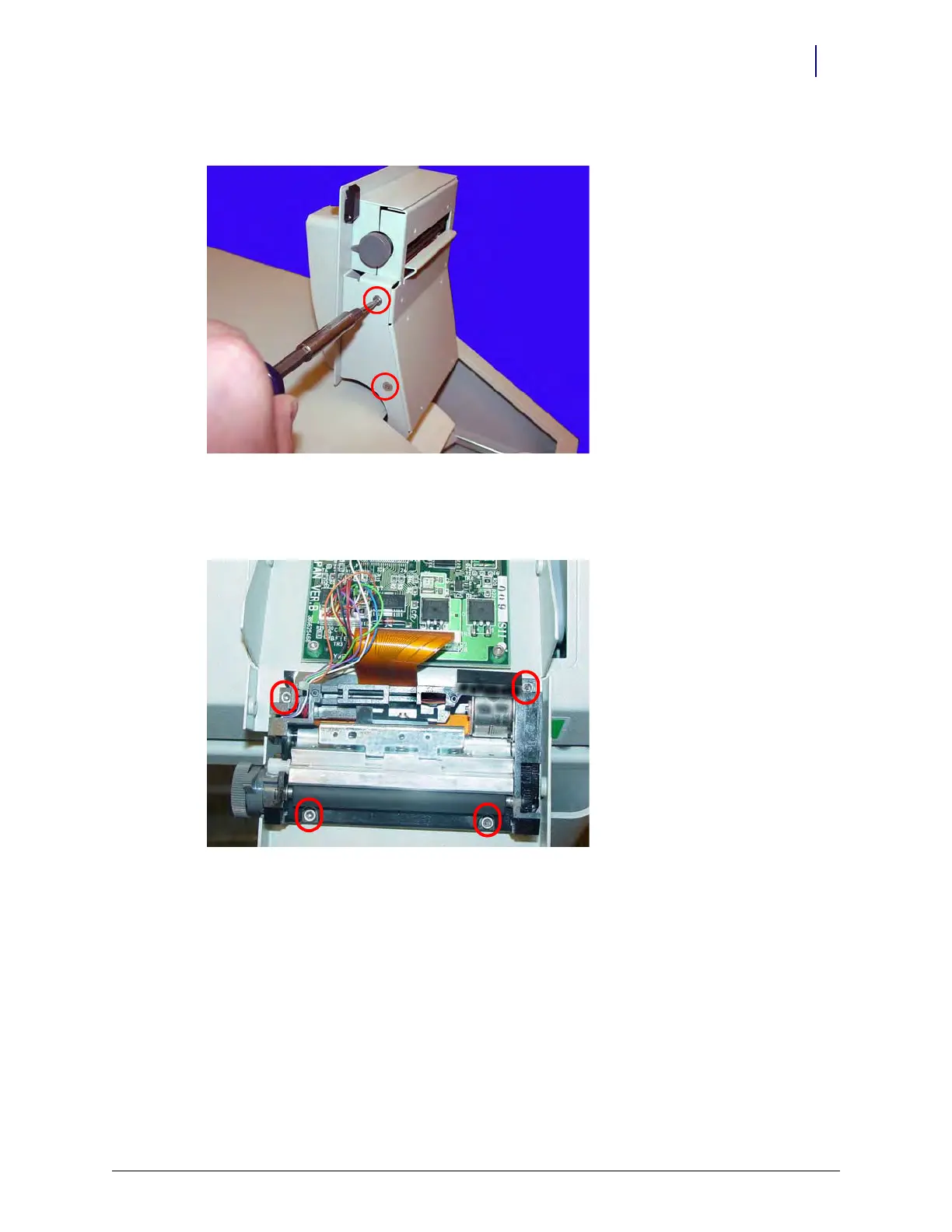

Figure 1-8. Remove the printer assembly screws
6. Remove the printer assembly.
7. Remove the four screws that secure the lower assembly to the frame.
Figure 1-9. Remove the lower assembly screws
