OmniCell G4 - Replace the Hard Drive

© 2011 Omnicell, Inc. OmniRx Service Guide/67-2023 Rev F
CT PC E-Box 6-5
Remove/Replace the Hard Drive
Replace the Hard D r iv e
1. Set the hard drive into place inside the E-Box. Make sure not to pinch any wires that may be
present inside the E-Box.

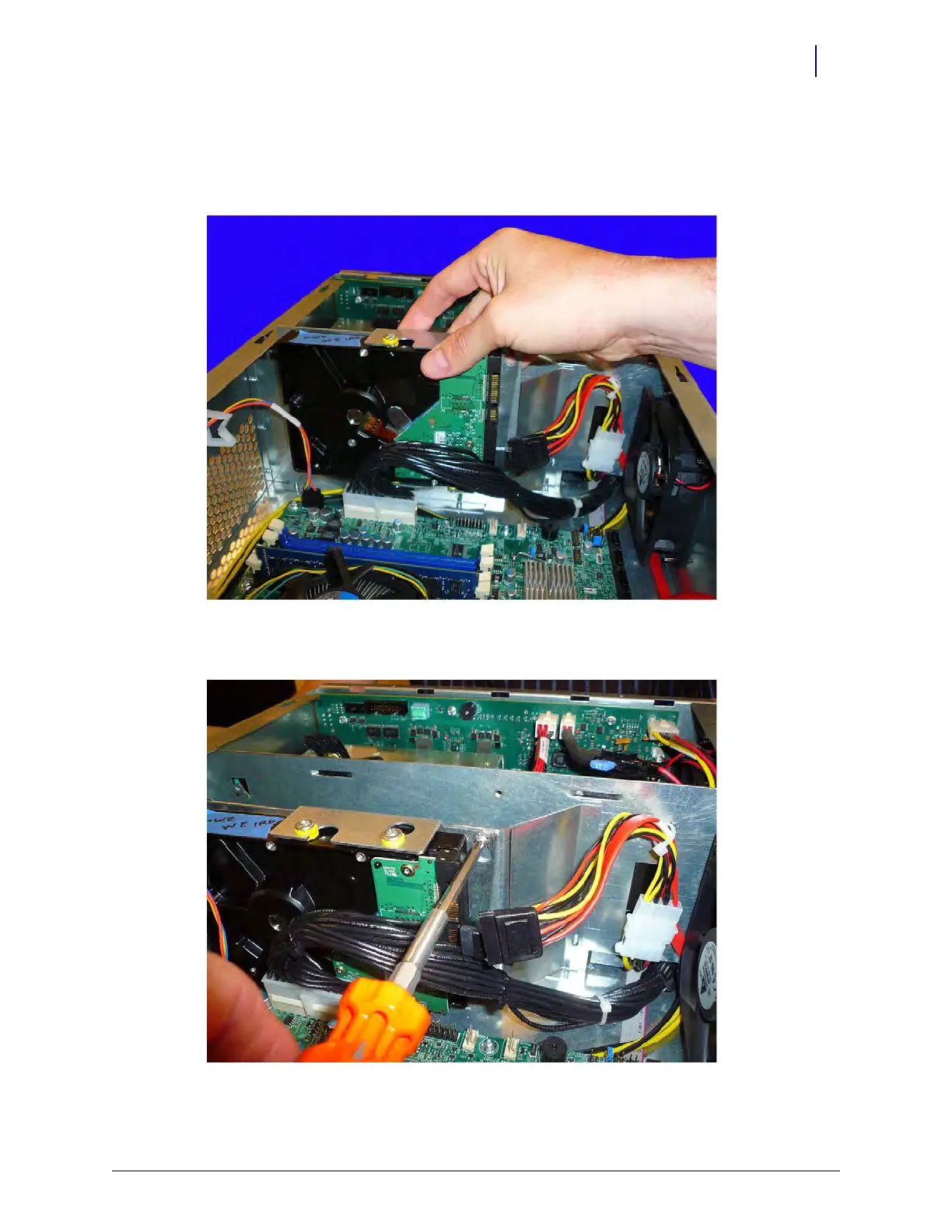

Figure 6-6. Replace the hard drive
2. Tighten the screw that connects the hard drive plate to the E-Box wall.
Figure 6-7. Tighten the screw that secures the hard drive to the E-Box wall
