OmniCell G4 - Replace the Battery

© 2011 Omnicell, Inc. OmniRx Service Guide/67-2023 Rev F
CT PC E-Box 6-11
Remove/Replace the Battery
Replace the Ba tter y
1. Set the battery into place inside the E-Box. Make sure not to pinch any wires coming from the
power entry module.
2. Replace the velcro straps that secure the battery to the E-Box frame.

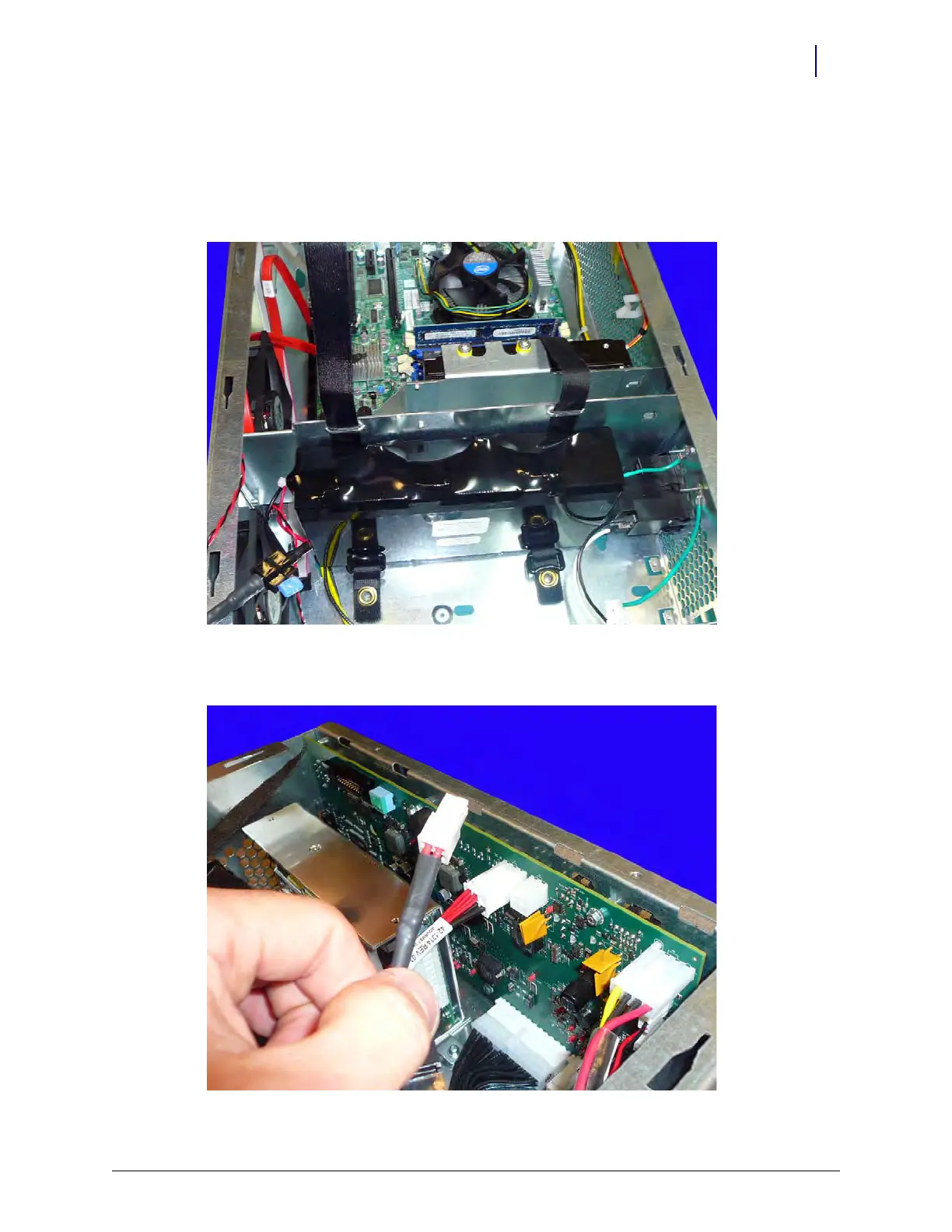

Figure 6-15. Set the battery on the straps and secure the straps
3. Connect the cable that connects the battery to the PowerCom4 board.
Figure 6-16. Connect the battery cable to the PowerCom4 board
