OmniCell G4 - Set the G4 Sled on the Omnirx Frame

© 2011 Omnicell, Inc. OmniRx Service Guide/67-2023 Rev F
OmniRX G4 Service Guide 5-15
Introduction
Set the G4 Sled on the OmniRx Frame
1. Lift the G4 console onto the OmniRx frame. Ensure that the wireway cable is laid over the edge
of the frame and available.

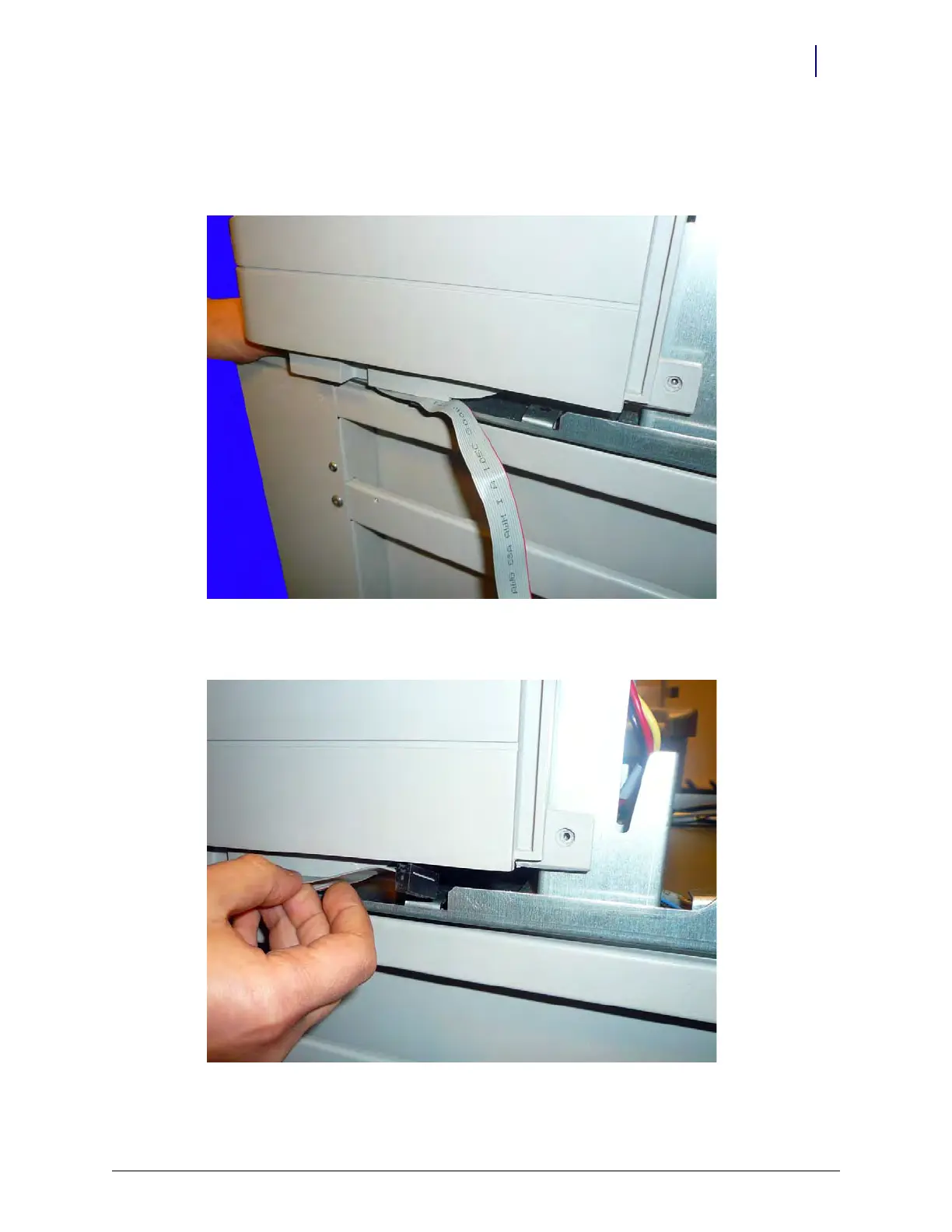

Figure 5-23. Place the G4 console on the OmniRx with the wireway calbe free
2. Feed the wireway cable through the back of the console frame.
Figure 5-24. Feed the wireway cable through the back of the G4 sled
