5-14 OmniRX G4 Service Guide
Introduction
OmniRx Service Guide/67-2023 Rev F © 2011 Omnicell, Inc.
3. Remove the screw located behind the printer bay that secures the sled to the Rx frame.

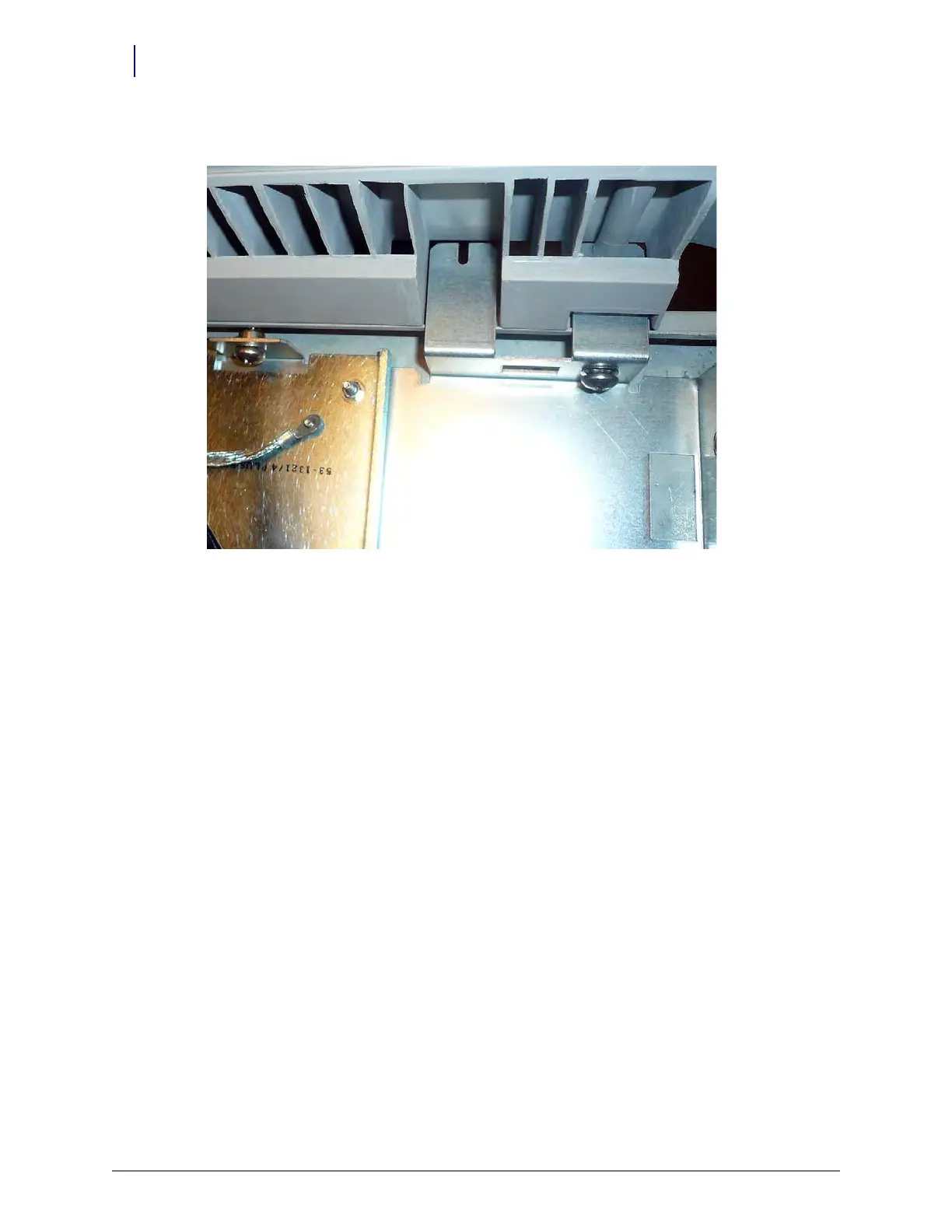

Figure 5-22. Remove the screw that secures the Rx sled to the frame
4. Lift the OmniRx sled up and remove it from the frame.
