© 2011 Omnicell, Inc. OmniRx Service Guide/67-2023 Rev F
OmniRX G4 Service Guide 5-13
Introduction
2. Remove the two screws that secure the sled to the OmniRx frame on the back of the sled.

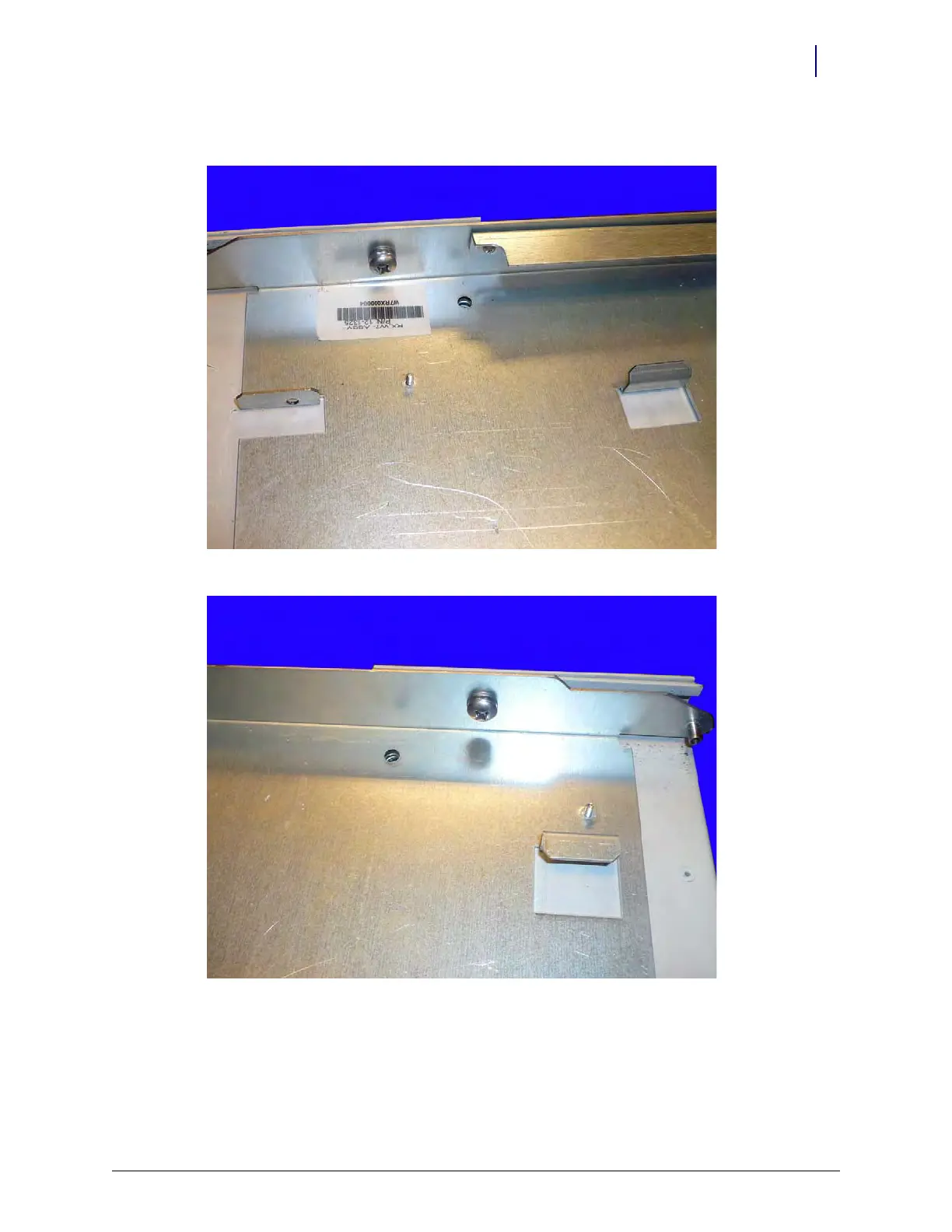

Figure 5-20. Remove the screw on the right rear side of the sled
Figure 5-21. Remove the screw on the left rear side of the sled
