6-12 CT PC E-Box

Remove/Replace the Power Supply

Remove the Power

1. Disconnect the cable that connects the power supply to the PowerCom4 board.

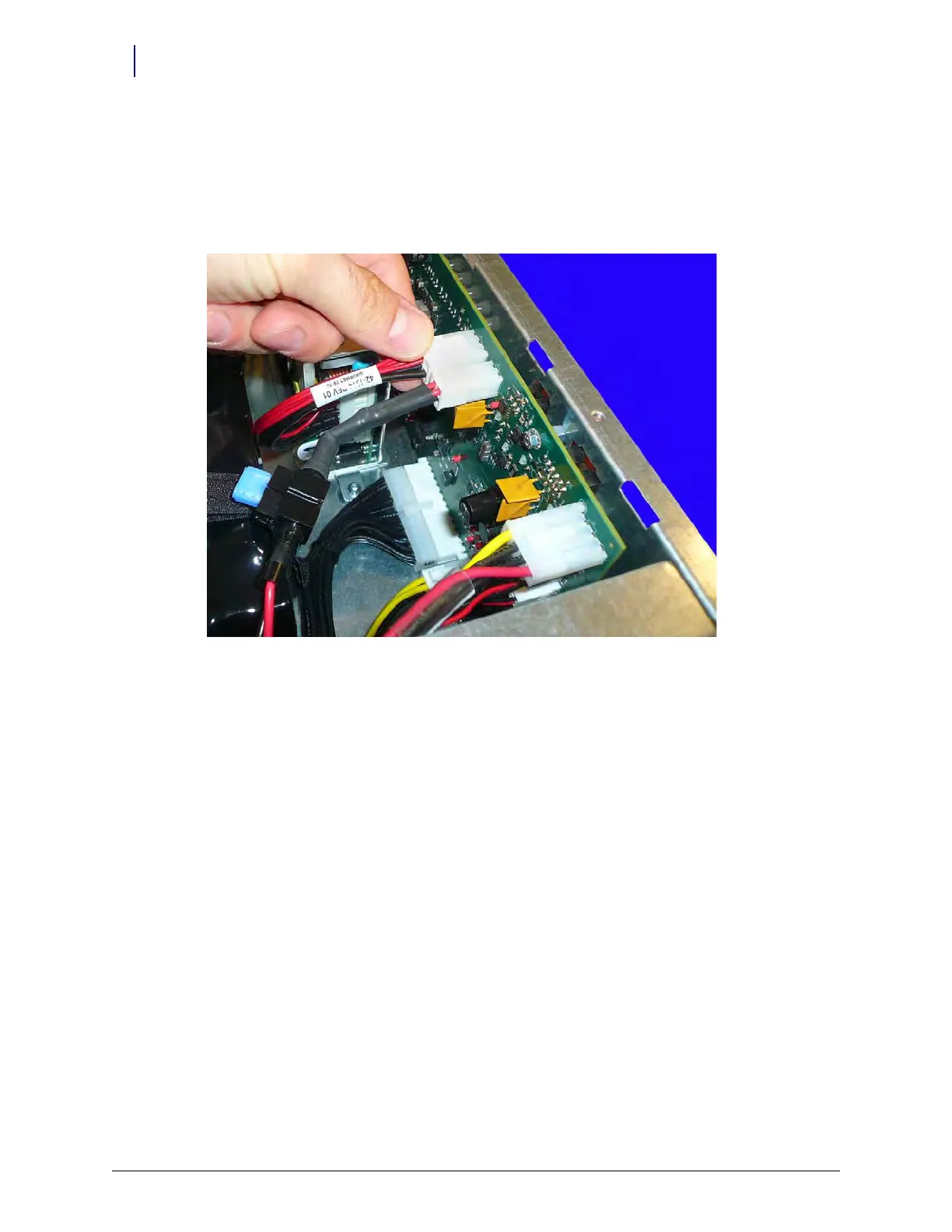

Figure 6-17. Disconnect the power supply cable from the PowerCom4 board.
