© 2011 Omnicell, Inc. OmniRx Service Guide/67-2023 Rev F
CT PC E-Box 6-17
Remove/Replace the Power Supply
5. Connect the power supply power cable to the PowerCom4 board.

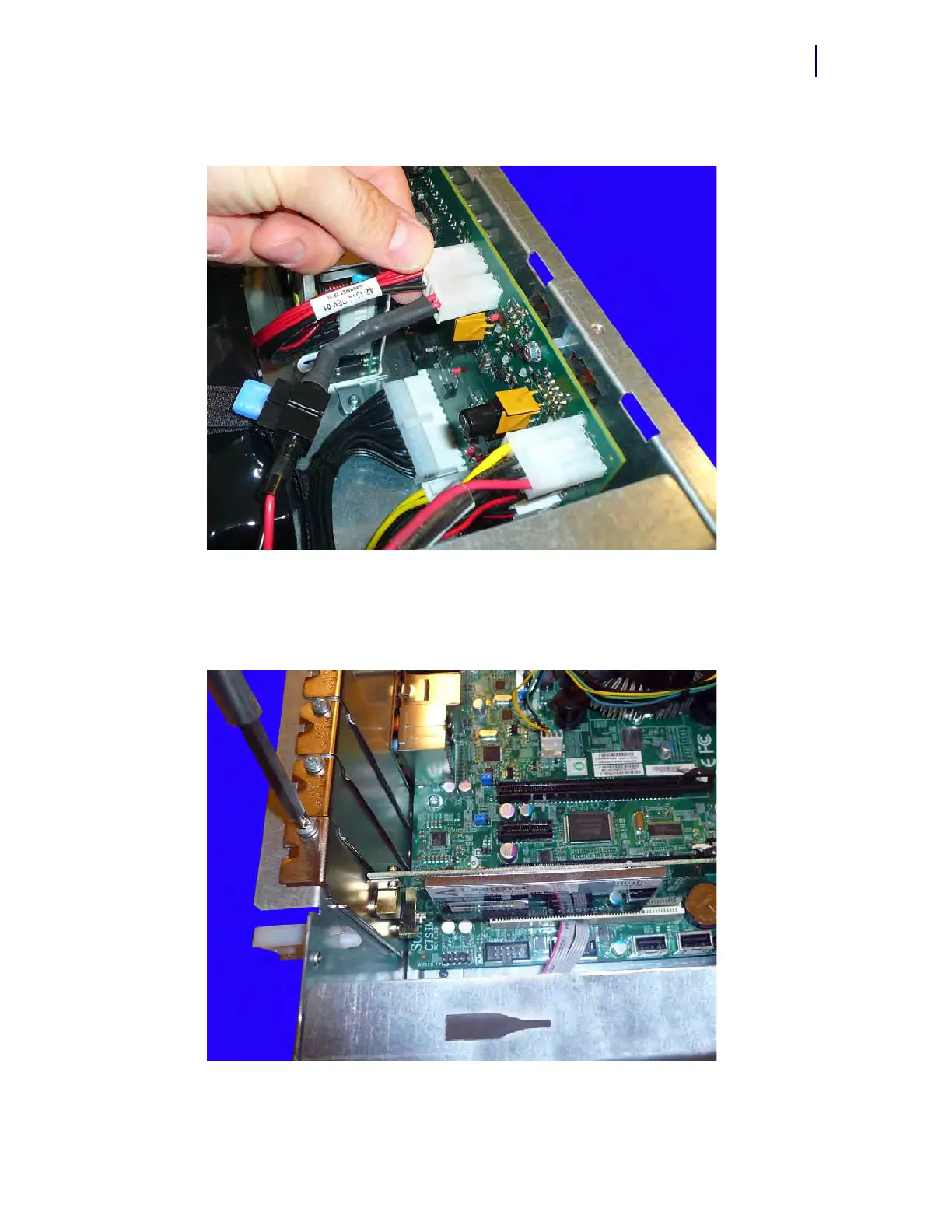

Figure 6-25. Connect the power supply power cable to the PowerCom4 board
Remove the wireless
c
a
rd
1. Remove the screw that secures the wireless card to the E-Box frame.
Figure 6-26. Remove the screw securing the wireless card to the E-Box
To Next Page
