OmniCell G4 - Remove the OmniRx Keyboard

© 2011 Omnicell, Inc. OmniRx Service Guide/67-2023 Rev F
OmniRX G4 Service Guide 5-3
Introduction
Remove the Keyboard
1. Remove the two screws on the under side of the OmniRx G4 console that secure the keyboard.

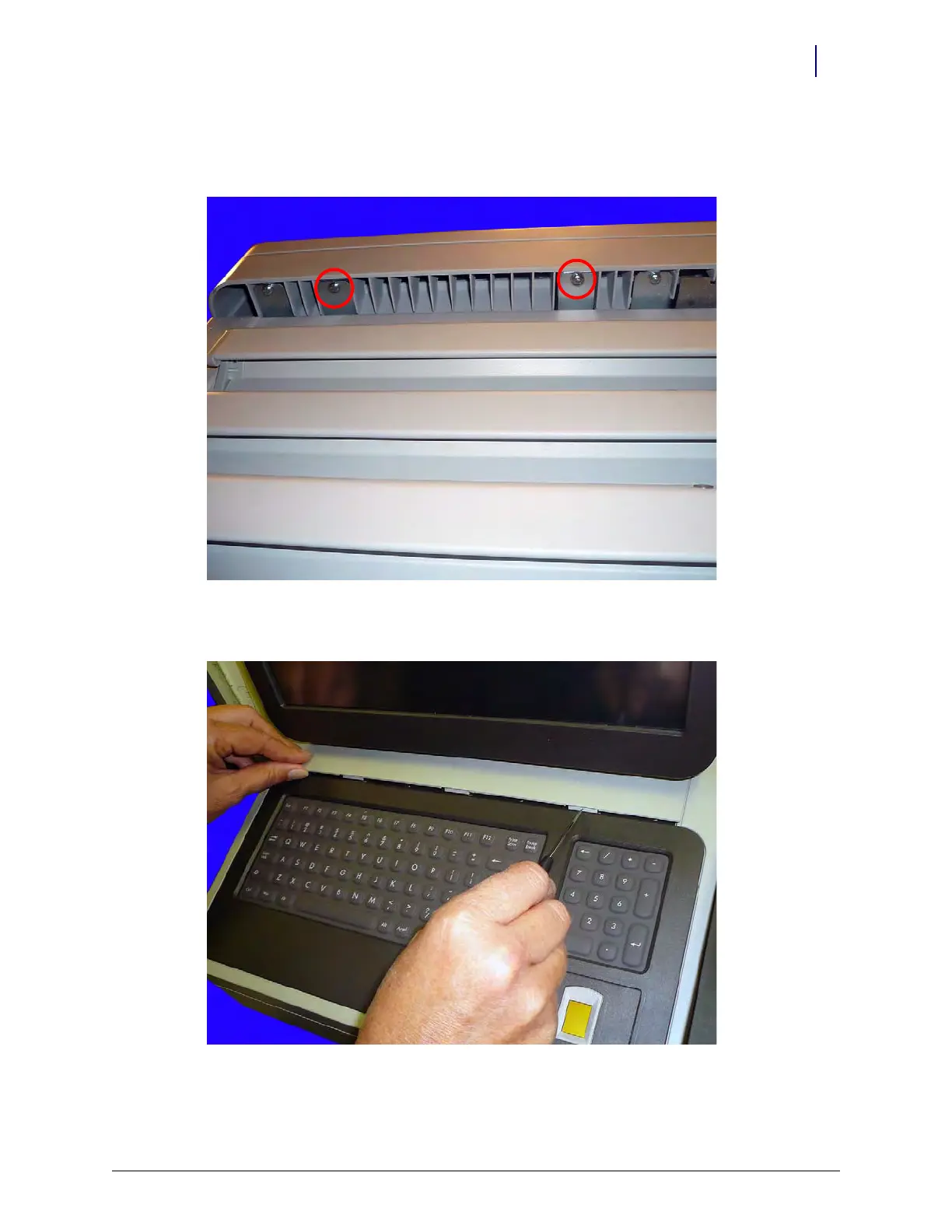

Figure 5-3. Remove the bottom two keyboard screws
2. Remove the cosmetic cover on the front of the keyboard tray.
Figure 5-4. Remove the cosmetic cover on the front of the OmniRx
