OmniRx G4 Console Upgrade 4-13
Add the G4 Console
9. Ensure the wireway cable is out of the way of the surface so that it is not pinched or damaged
when the G4 sled is added.
Add the G4 Console
1. Lift the G4 console onto the OmniRx frame, leaving the wireway cable exposed.

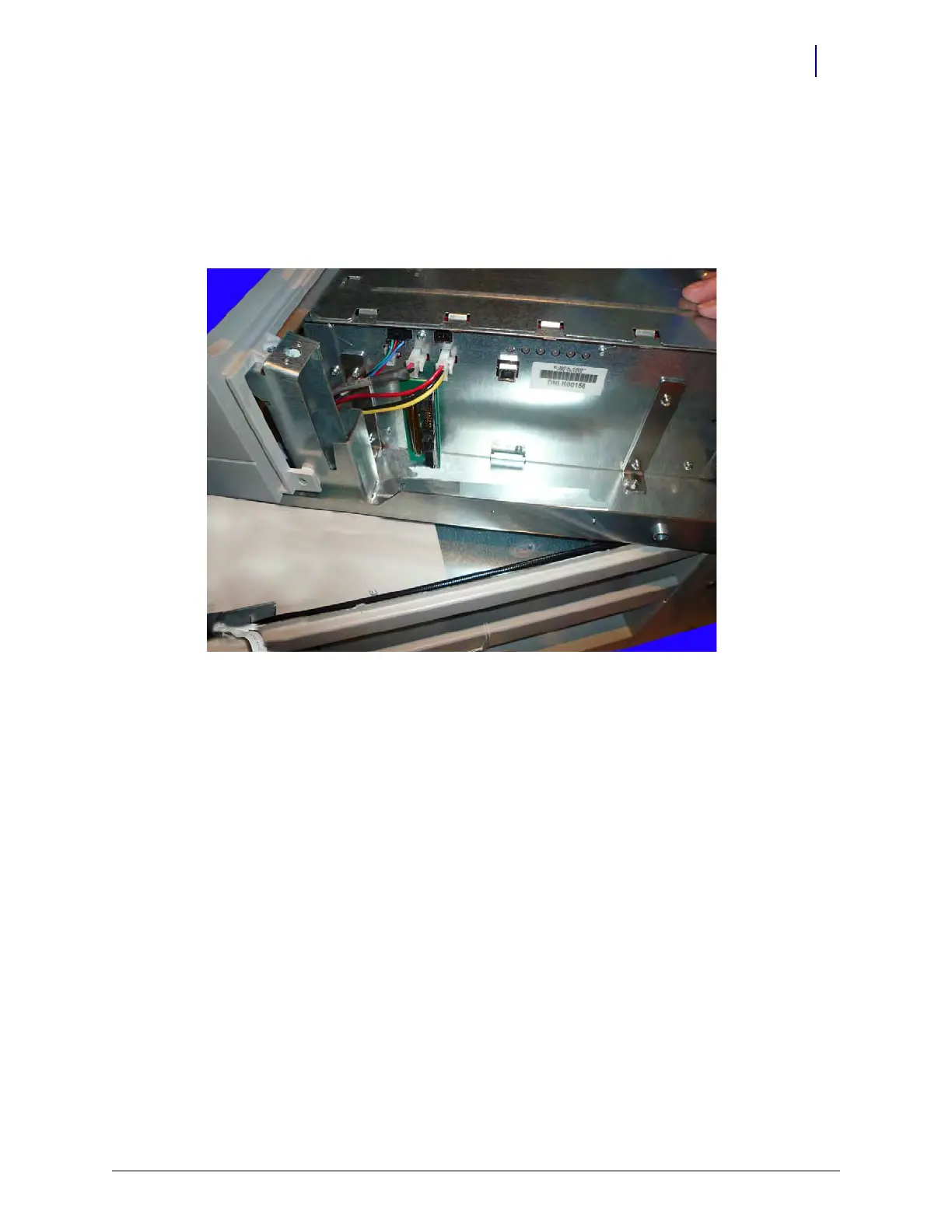

Figure 4-21. Place the G4 console on the OmniRx with the wireway cable free
