6-16 CT PC E-Box
Remove/Replace the Power Supply
OmniRx Service Guide/67-2023 Rev F © 2011 Omnicell, Inc.
3. Slide the power supply into place underneath the two tabs on the E-Box frame.

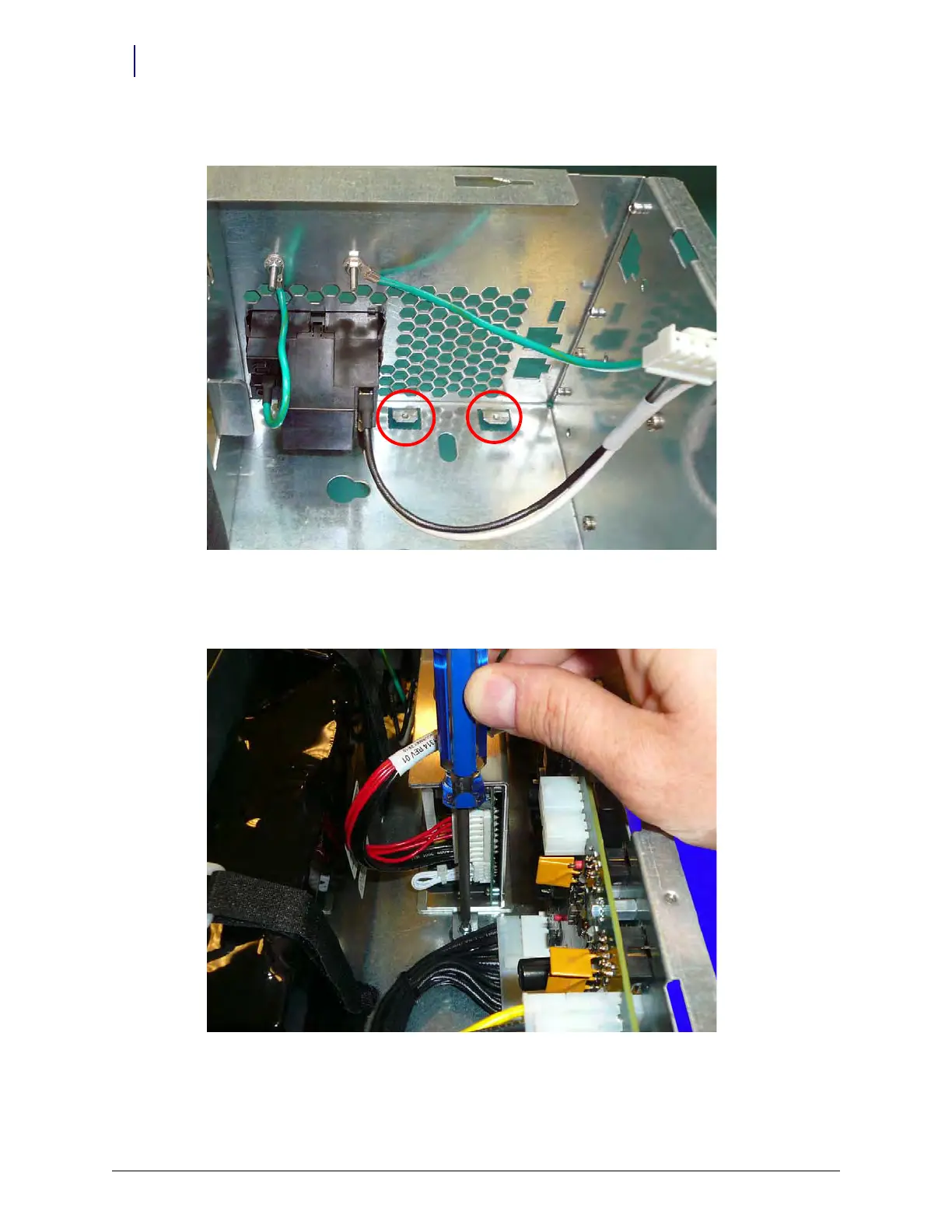

Figure 6-23. Tabs to secure the power supply
4. Secure the power supply to the E-Box by replacing the screw that secures the power supply to
the E-Box.
Figure 6-24. Replace the screw that secures the power supply to the E-Box
