CT PC E-Box 6-9
Remove/Replace the Fans
2. Replace the four screws that secure each cooling fan to the E-Box.

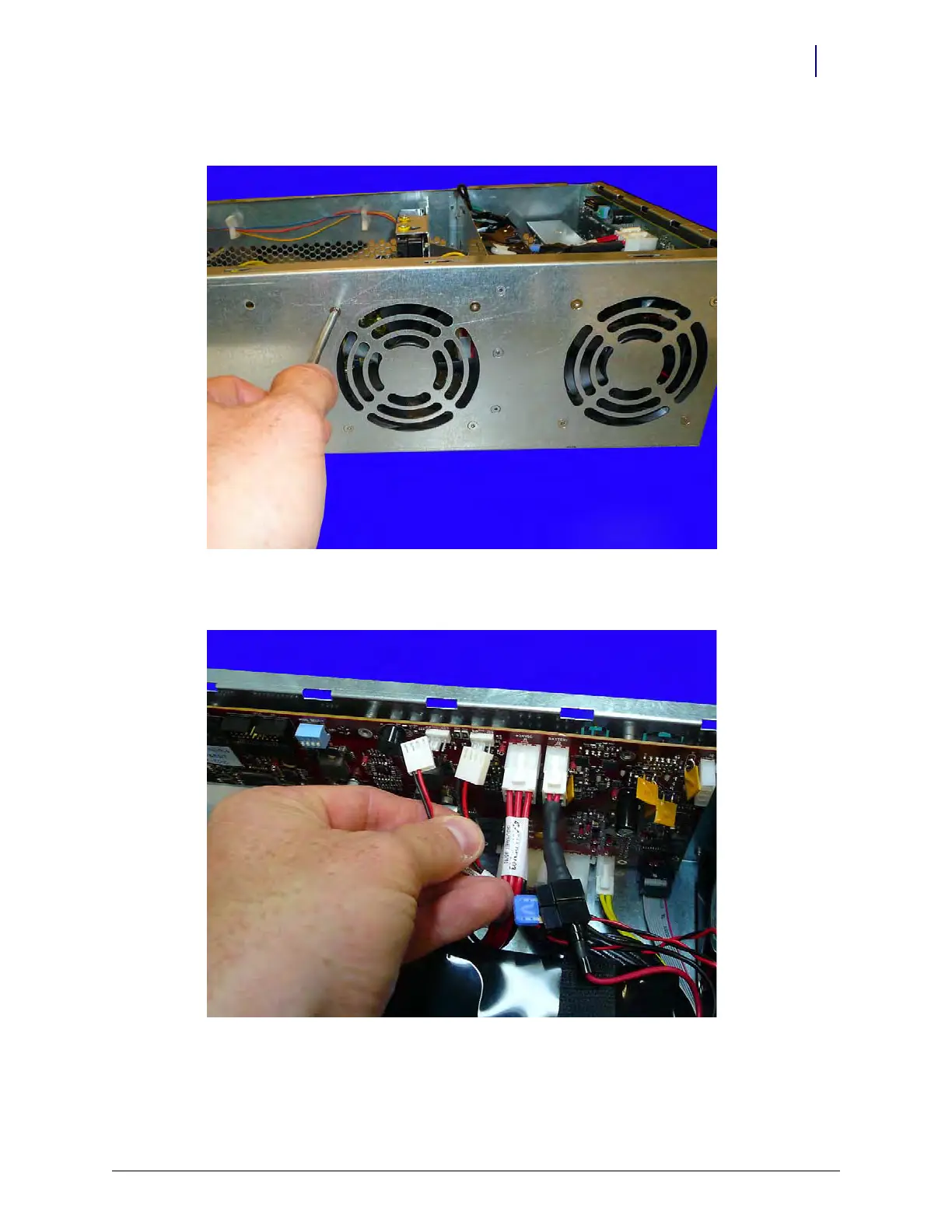

Figure 6-11. Replace the screws securing the fans to the E-Box
3. Connect the fan cables to the PowerCom4 board.
Figure 6-12. Connect the fan cables to the PowerCom4 board
