© 2011 Omnicell, Inc. OmniRx Service Guide/67-2023 Rev F
OmniRX G4 Service Guide 5-5
Introduction
5. Remove the nut that secures the keyboard ground cable.

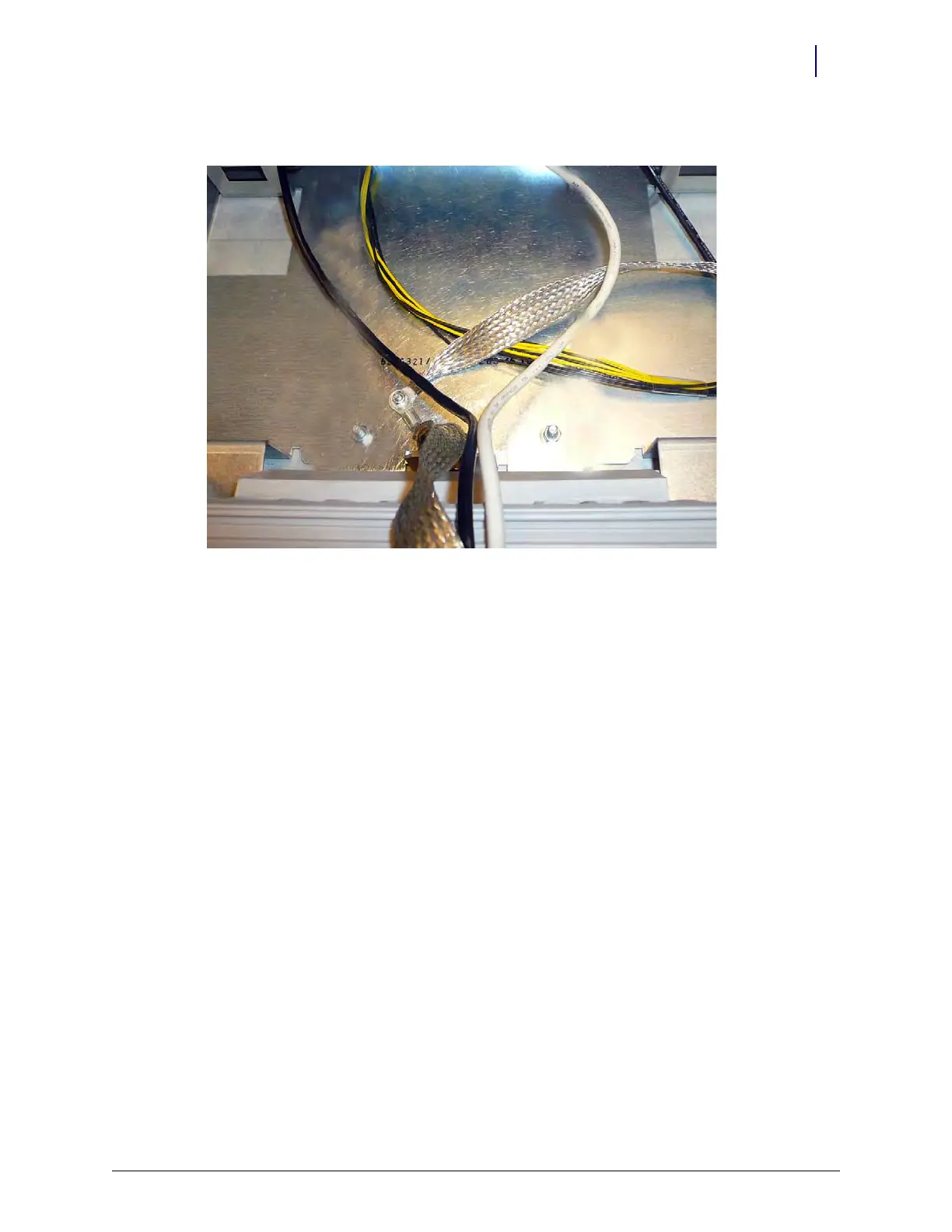

Figure 5-7. Remove the keyboard ground cable nut
6. Remove the ground cable.
7. Disconnect the Fingerprint scanner USB cable (if present) and the keyboard cable from the
side of the E-Box.
8. Remove the keyboard from the OmniRx.
