© 2011 Omnicell, Inc. OmniRx Service Guide/67-2023 Rev F
OmniRX G4 Service Guide 5-9
Introduction
4. Loosen the two screws on the right-hand side of the E-Box that secure the E-Box to the
OmniRx frame.

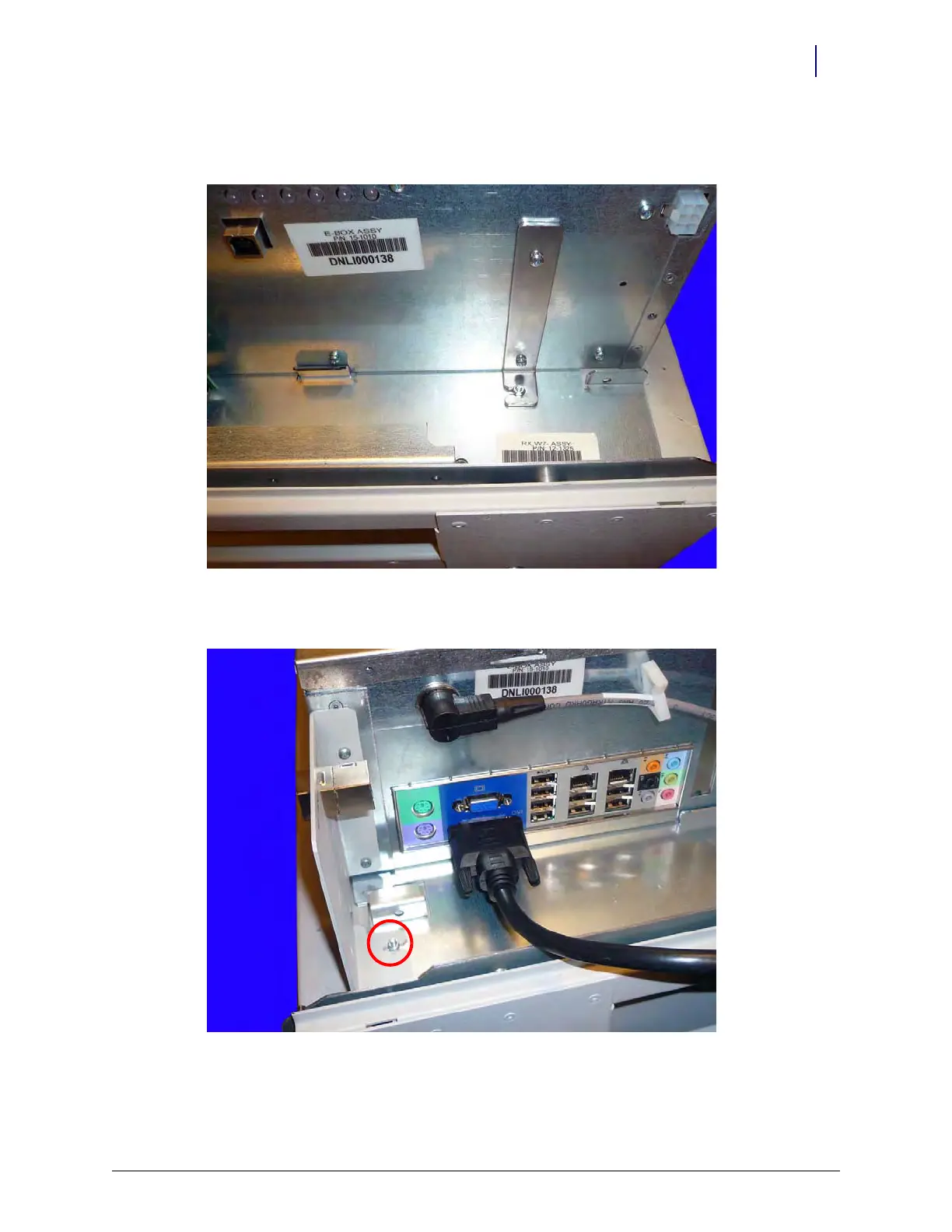

Figure 5-13. Loosen the screws that secure the E-Box t the OmniRx frame
5. Loosen the two screws securing the bracket on the left-hand side of the E-Box.
Figure 5-14. Loosen the bracket screw
