Omron CJ2M-CPU Series User Manual

3 I/O Specifications and Wiring for Pulse I/O Modules
3-10
CJ2M CPU Unit Pulse I/O Module User’s Manual
z Corresponding Connector-Terminal Block Conversion Unit Terminals

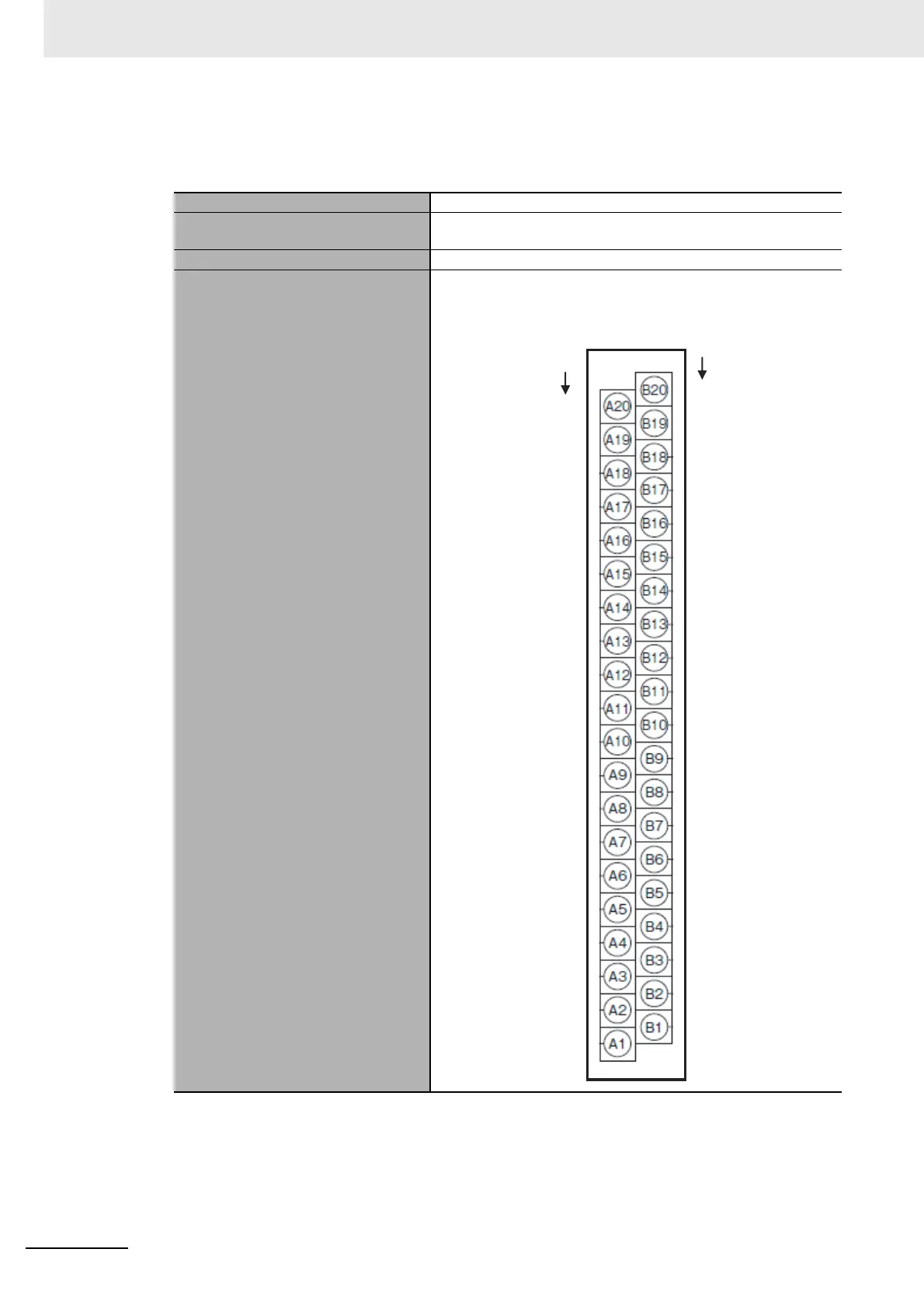

The following figure shows the corresponding terminals on the Connector-Terminal Block Conver-
sion Unit when it is connected to a Pulse I/O Module.
Pulse I/O Module CJ2M-MD211, CJ2M-MD212
Connector-Terminal Block Conver-
sion Unit
XW2D-40G6
Connecting Cable XW2Z-@@@K
7
9
11
1
3
5
13
15
17
23
25
27
35
37
39
29
31
33
19
21
8
10
12
2
4
6
14
16
18
24
26
28
36
38
40
30
32
34
20
22
XW2D-40G6 Connector-Terminal
Block Conversion Unit
Pulse I/O Module
connector pin numbers
Pulse I/O Module
connector pin numbers

Omron CJ2M-CPU Series Specifications

General

Power Supply	24 VDC
Number of Instructions	Over 400 instructions
Model	CJ2M-CPU11, CJ2M-CPU12, CJ2M-CPU13, CJ2M-CPU14, CJ2M-CPU15
Program Capacity	5K steps to 60K steps
I/O Capacity	Up to 2, 560 points
Communication Ports	Ethernet, USB, RS-232C
Execution Time	0.04 µs per basic instruction
Operating Temperature	0 to 55°C
Position Control	Supported
High-speed Counter	100 kHz max.
Pulse Output	100 kHz max.
Maximum Units	40 units
Storage Temperature	-20 to 75°C
Interrupt Inputs	Supported
