Other Instructions Section 3-29
Description When the execution condition is ON, TOCV(285) executes the following oper-
ations.
1. The CP-series PLC memory address specified in S is converted to its
equivalent CP-series data area address. (An index register (IR0 to IR15)
must be specified for S.)
2. TOCV(284) determines the CV-series PLC memory address that corre-
sponds to the same CP-series data area address.
3. The CV-series PLC memory address is output to D.

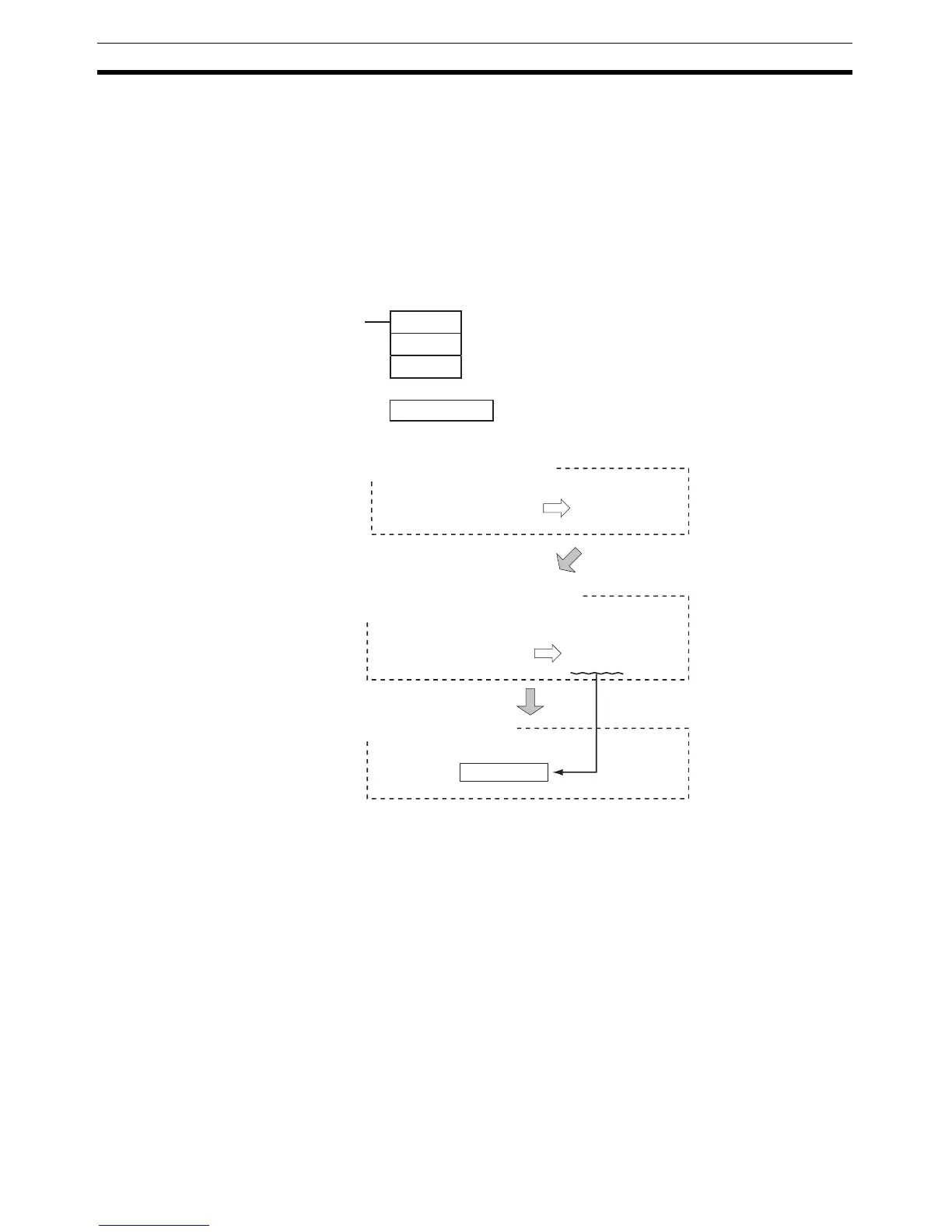

The following example shows TOCV(285) used to convert the PLC memory
address in IR1.
TOCV
IR1
D100
10001 Hex
IR1
2001 Hex
D1
D1
10001 Hex
D100
2001 Hex
1. The CP-series PLC memory address is
converted to its equivalent CP-series data
area address.
CP-series PLC
memory address
CP-series data
area address
CV-series data
area address
CV-series PLC
memory address
2. The corresponding CP-series data
area address is converted to its CV-series
PLC memory address.
Storage
3. The CV-series PLC memory
address is stored in D.
