Programming Concepts Section 1-1
1-1-13 Inputting Mnemonics
A logical start is accomplished using an LD/LD NOT instruction. The area
from the logical start until the instruction just before the next LD/LD NOT
instruction is considered a single instruction block.
Create a single rung consisting of two instruction blocks using an AND LD
instruction to AND the blocks or by using an OR LD instruction to OR the

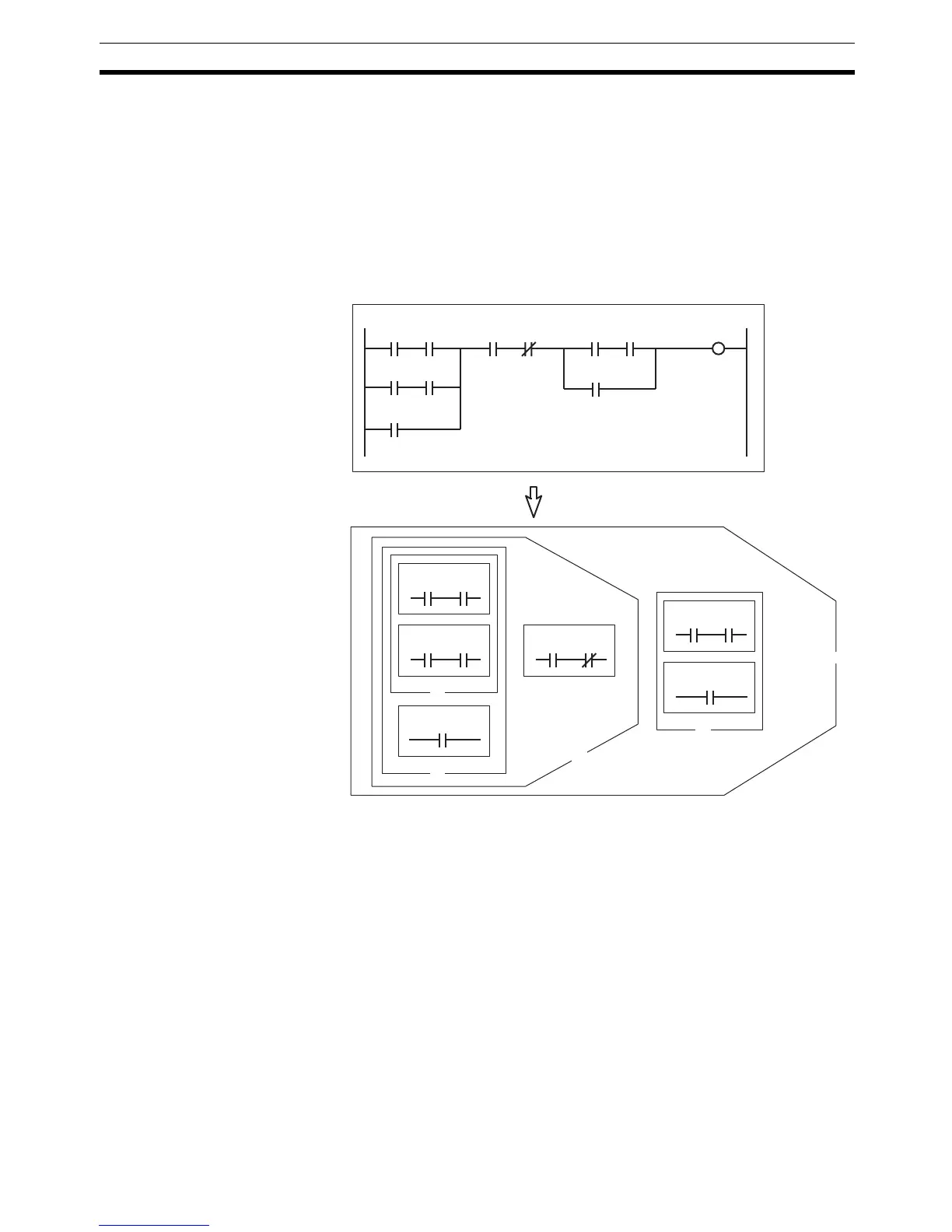

blocks. The following example shows a complex rung that will be used to
explain the procedure for inputting mnemonics (rung summary and order).
1,2,3... 1. First separate the rung into small blocks (a) to (f).
0.00 0.01
(a)
10.00 10.01
(b)
(1)
5.00
(c)
(2)
0.02
(d)
0.03
(3)
0.04 0.05
(e)
0.06
(f)
(4)
(5)
0.030.00 0.01 0.02
10.00
W0.000.04 0.05
10.01
5.00
0.06
