Network Instructions Section 3-24
3-24-6 EXPLICIT MESSAGE SEND: EXPLT(720)
Purpose Sends an explicit message with any service code.
This instruction can be used in the CP1H CPU Units only. It cannot be used in
the CP1L CPU Units. If EXPLT(720) is used in a CP1L CPU Unit, Error Flag
(ER) will be turned ON.

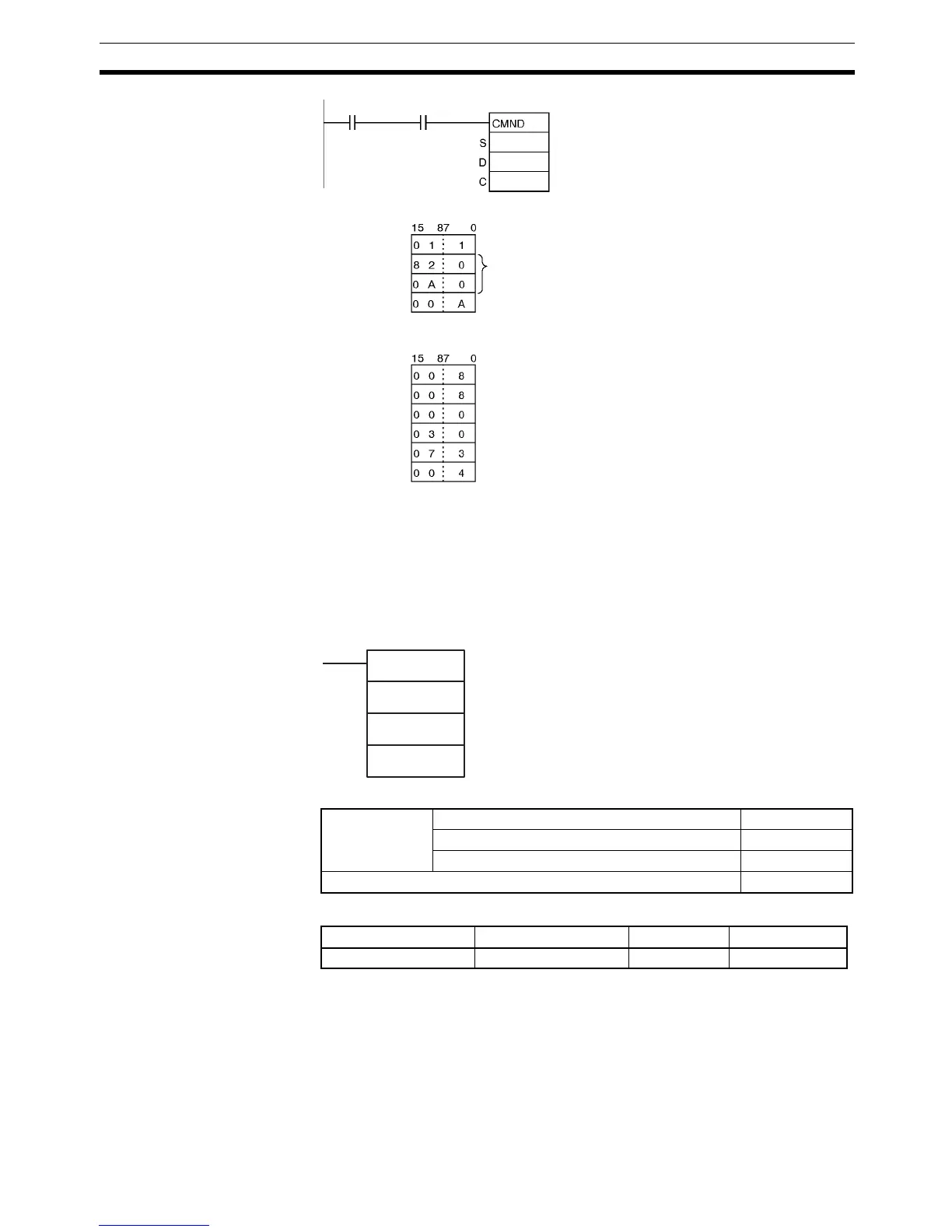

Ladder Symbol
Variations
Applicable Program Areas
0
0
0
0
0
1
0
0
0
6
0.00 A202.07
D100
D200
D300
S: D100
S+1: D101
S+2: D102
S+3: D103
C: D300
C+1: D301
C+2: D302
C+3: D303
C+4: D304
C+5: D305
Command code: 0101 hexadecimal (MEMORY AREA READ)
D10 (Data area = 82 hexadecimal, address = 000A00)
Number of words to read = 0A hexadecimal (10 decimal)
Bytes of command data: 0008 (8 decimal)
Bytes of response data: 0018 (24)
Transmit to the local network and the device itself
Node number 3, unit address 00 (CPU Unit)
Response requested, port number 7, 3 retries
Response monitoring time: 0064 hexadecimal (10 seconds)
EXPLT(720)
S
D
C
S: First word of send message
D: First word of received message
C: First control word
Variations Executed Each Cycle for ON Condition EXPLT(720)
Executed Once for Upward Differentiation @EXPLT(720)
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification Not supported
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
To Next Page
