113
Sequence Output Instructions Section 3-3

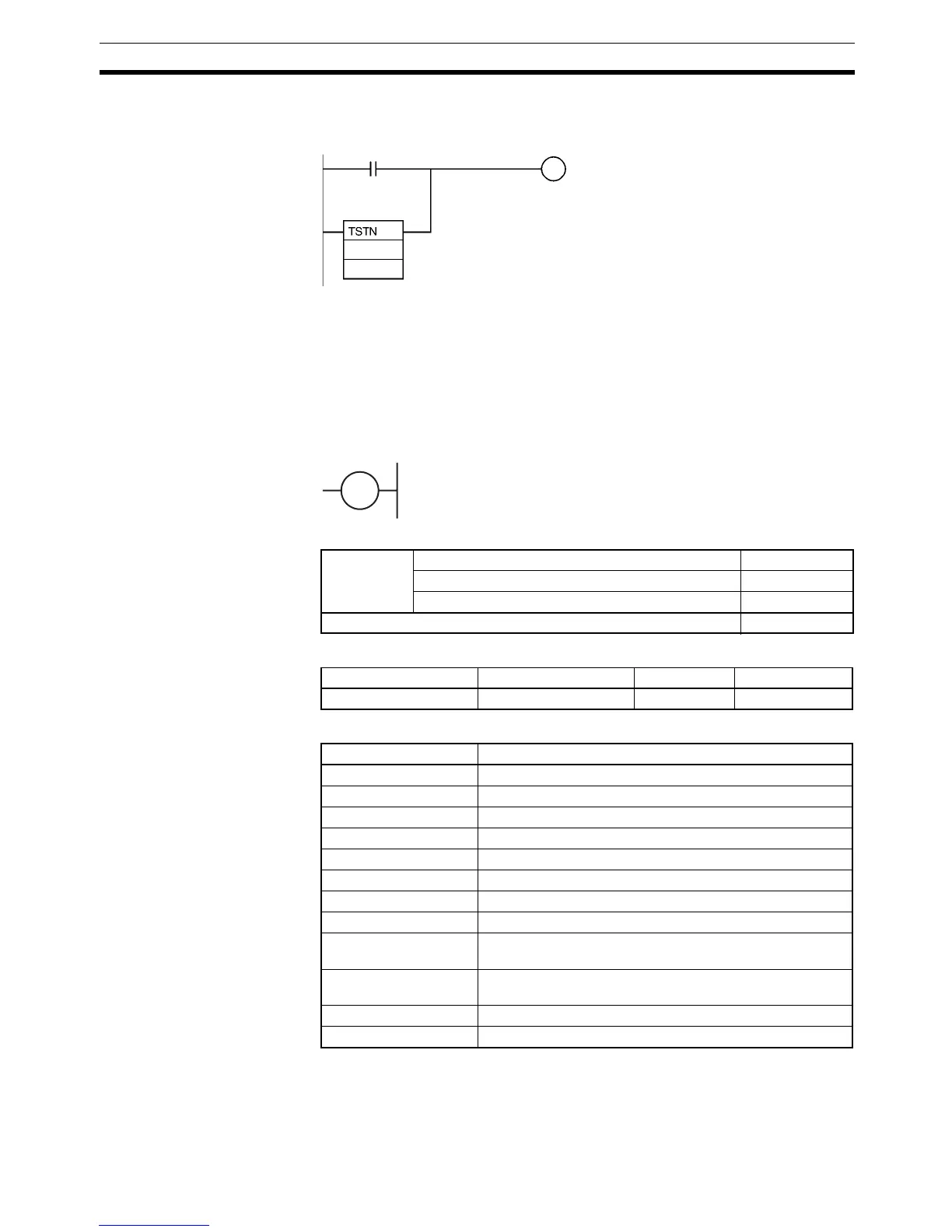

In the following example, CIO 100.02 is turned ON when CIO 0.01 is ON or bit
3 of D10 is OFF.
3-3 Sequence Output Instructions
3-3-1 OUTPUT: OUT
Purpose Outputs the result (execution condition) of the logical processing to the speci-
fied bit.
Ladder Symbol
Variations
Applicable Program Areas
Operand Specifications
&3
0.01
100.02
D10
Variations Executed Each Cycle for ON Condition OUT
Executed Once for Upward Differentiation Not supported.
Executed Once for Downward Differentiation Not supported.
Immediate Refreshing Specification !OUT
Block program areas Step program areas Subroutines Interrupt tasks
Not allowed OK OK OK
Area OUT bit operand
CIO Area CIO 0.00 to CIO 6143.15
Work Area W0.00 to W511.15
Holding Bit Area H0.00 to H511.15
Auxiliary Bit Area A448.00 to A959.15
Timer Area ---
Counter Area ---
TR Area TR0 to TR15
DM Area ---
Indirect DM addresses
in binary
---
Indirect DM addresses
in BCD
---
Constants ---
Data Registers ---
To Next Page
