Sequence Input Instructions Section 3-2

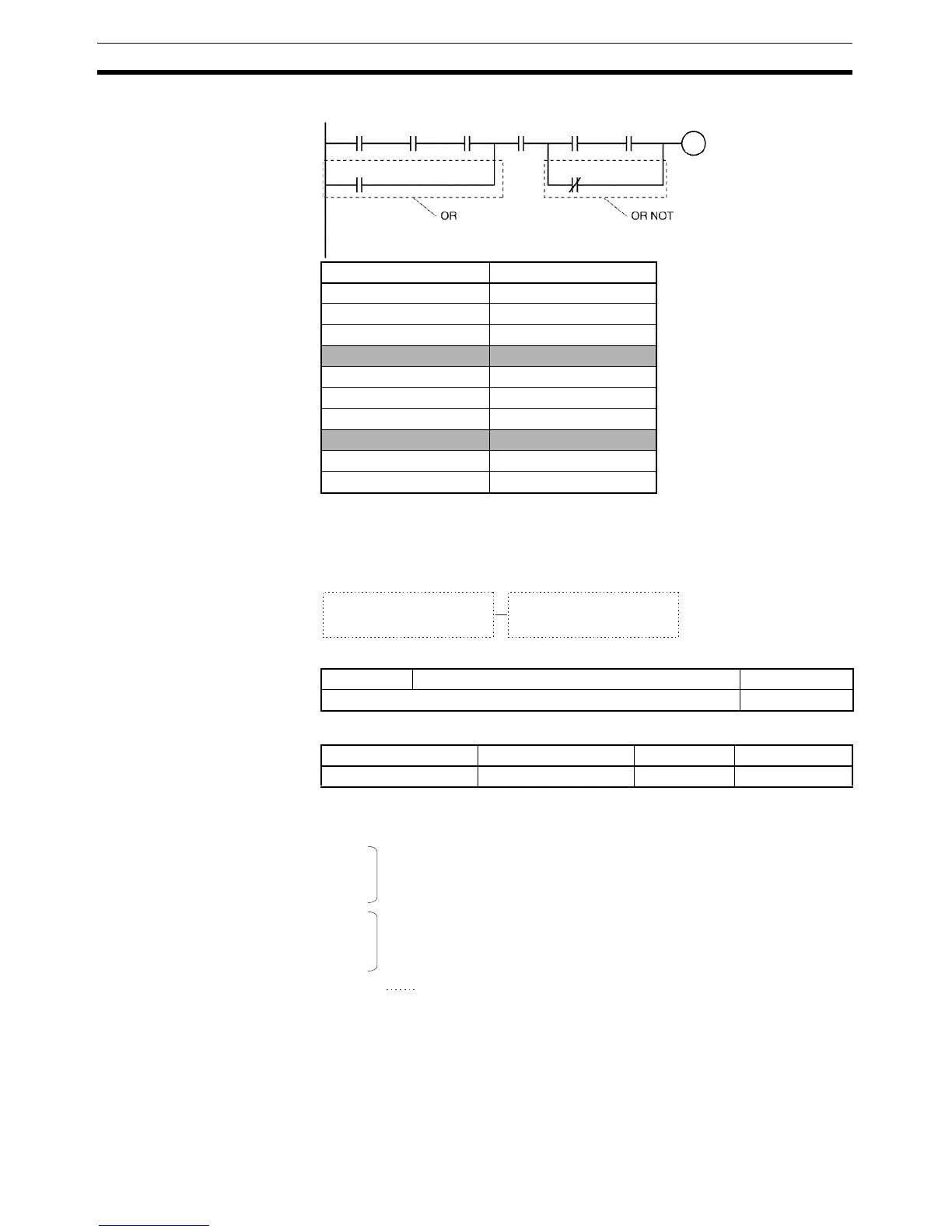

Example
3-2-7 AND LOAD: AND LD
Purpose Takes a logical AND between logic blocks.
Ladder Symbol
Variations
Applicable Program Areas
Description AND LD connects in series the logic block just before this instruction with
another logic block.
The logic block consists of all the instructions from a LOAD or LOAD NOT
instruction until just before the next LOAD or LOAD NOT instruction on the
same rungs.
Instruction Operand
LD 0.00
AND 0.01
AND 0.02
OR 0.03
AND 0.04
LD 0.05
AND 0.06
OR NOT 0.07
AND LD ---
OUT 100.00
100.00
0.060.05
0.07
0.040.020.010.00
0.03
Logic block Logic block
Variations Creates ON Each Cycle AND Result is ON AND LD
Immediate Refreshing Specification Not supported.
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
LD
LD
AND LD
Logic block A
Logic block B
Serial connection between logic block A and logic block B.
to
to
