Using Tasks Section 2-2
2-2-4 Examples of Tasks

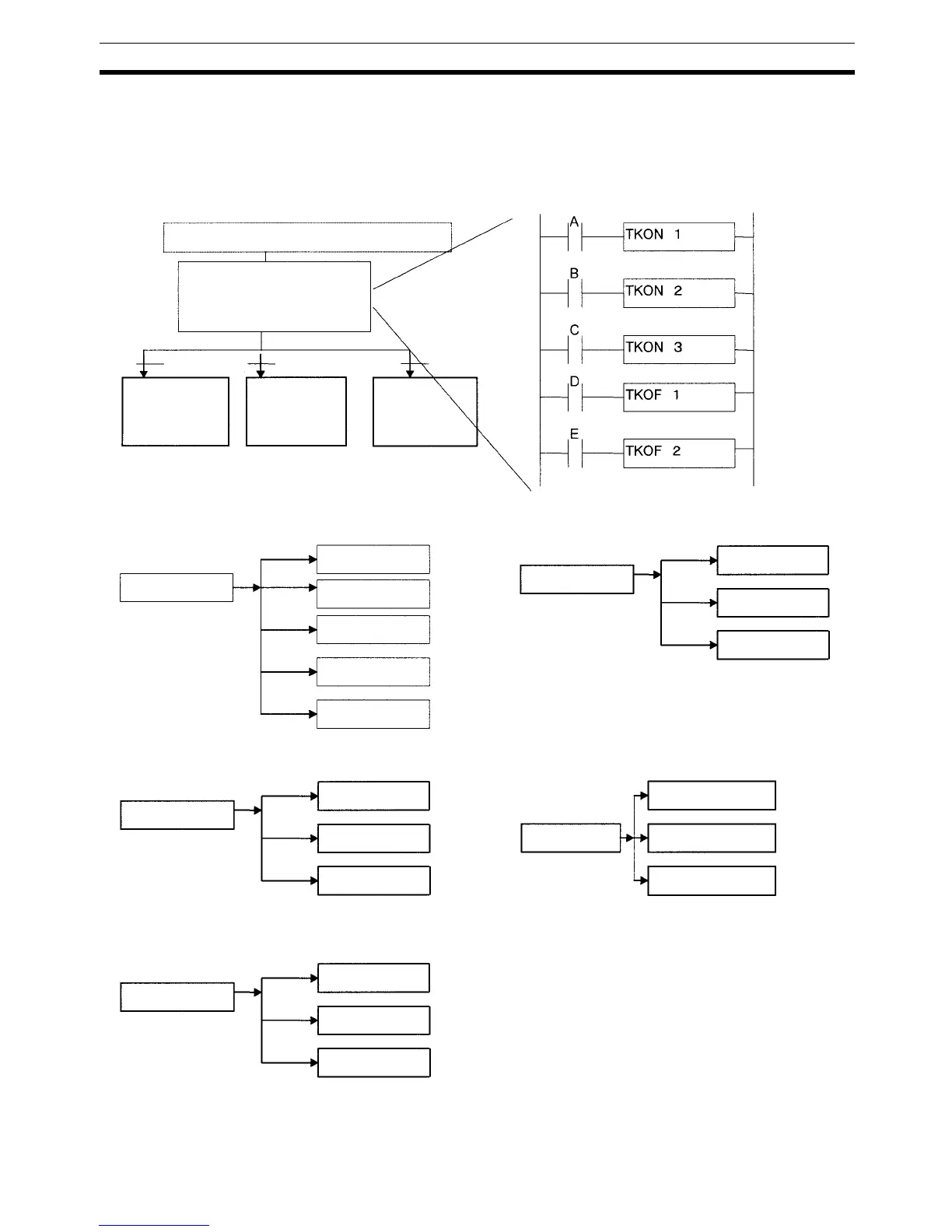

An overall control task that is set to go to READY status at the start of opera-
tion is generally used to control READY/Standby status for all other cyclic
tasks (including extra cyclic tasks). Of course, any cyclic task can control the
READY/Standby status of any other cyclic task as required by the application.
Combinations of the above classifications are also possible, e.g., classifica-
tion by function and process.
AB C
Cyclic task 1 Cyclic task 2 Cyclic task 3
MMI task
Product A task
Machining task
Product B task
Product C task
From Program Mode to Operating or Monitor Mode.
Cyclic task 0 with the startup at
the start of operation attribute
(overall control task)
Tasks Separated by Function
Overall control task
Conveyor task
Error monitoring
task
Communications
task
Analog processing
task
Tasks Separated by Product
Overall control task
Tasks Separated by Process
Assembly task
Conveyor task
Overall control task
Developer C task
Developer B task
Developer A task
Overall control
task
Tasks Separated by Developer
Overall control task
A-section control
task
B-section control
task
C-section control
task
Tasks Separated by Controlled Section
