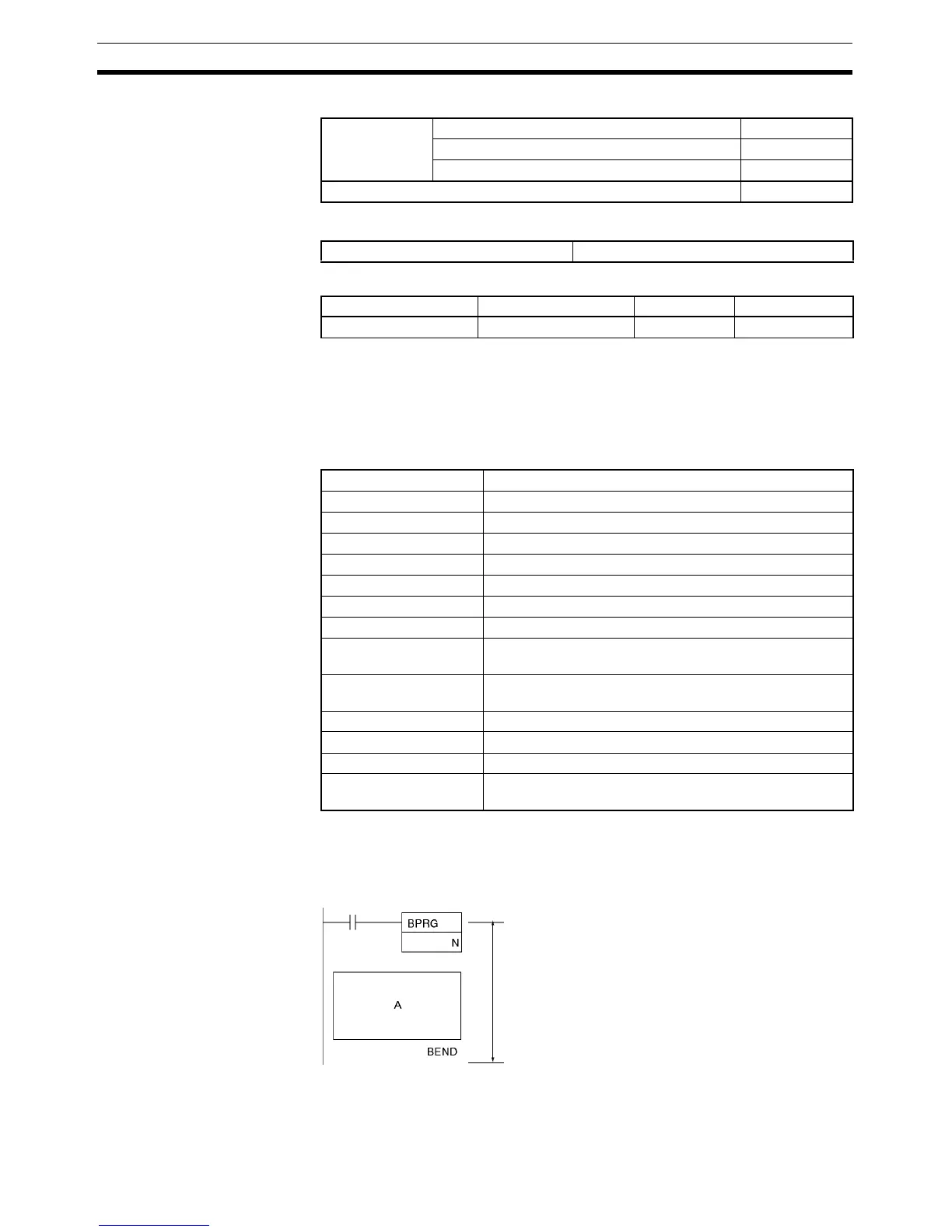

Block Programming Instructions Section 3-30
Variations BPRG(096)
BEND(801)
Applicable Program Areas
Note BPRG(096) is allowed only once at the beginning of each block program.
Operands N: Block Program Number
The block program number must be between 0 and 127 decimal.
Operand Specifications
(BPRG(096))
Description BPRG(096) executes the block program with the block number designated in
N, i.e., the one immediately after it and ending with BEND(801). All instruc-
tions between BPRG(096) and BEND(801) are executed with ON execution
conditions (i.e., unconditionally).
When the execution condition for BPRG(096) is OFF, the block program will
not be executed and no execution time will be required for the instruction in
the block program.
Variations Executed Each Cycle for ON Condition BPRG(096)
Executed Once for Upward Differentiation Not supported.
Executed Once for Downward Differentiation Not supported.
Immediate Refreshing Specification Not supported.
Variations Always Executed in Block Program
Block program areas Step program areas Subroutines Interrupt tasks
(See note.) OK OK OK
Area N
CIO Area ---
Work Area ---
Holding Bit Area ---
Auxiliary Bit Area ---
Timer Area ---
Counter Area ---
DM Area ---
Indirect DM addresses
in binary
---
Indirect DM addresses
in BCD
---
Constants 0 to 127 (decimal)
Data Registers ---
Index Registers ---
Indirect addressing
using Index Registers
---
Block program
Executed when the execution
condition is ON.
To Next Page
