982
Block Programming Instructions Section 3-30

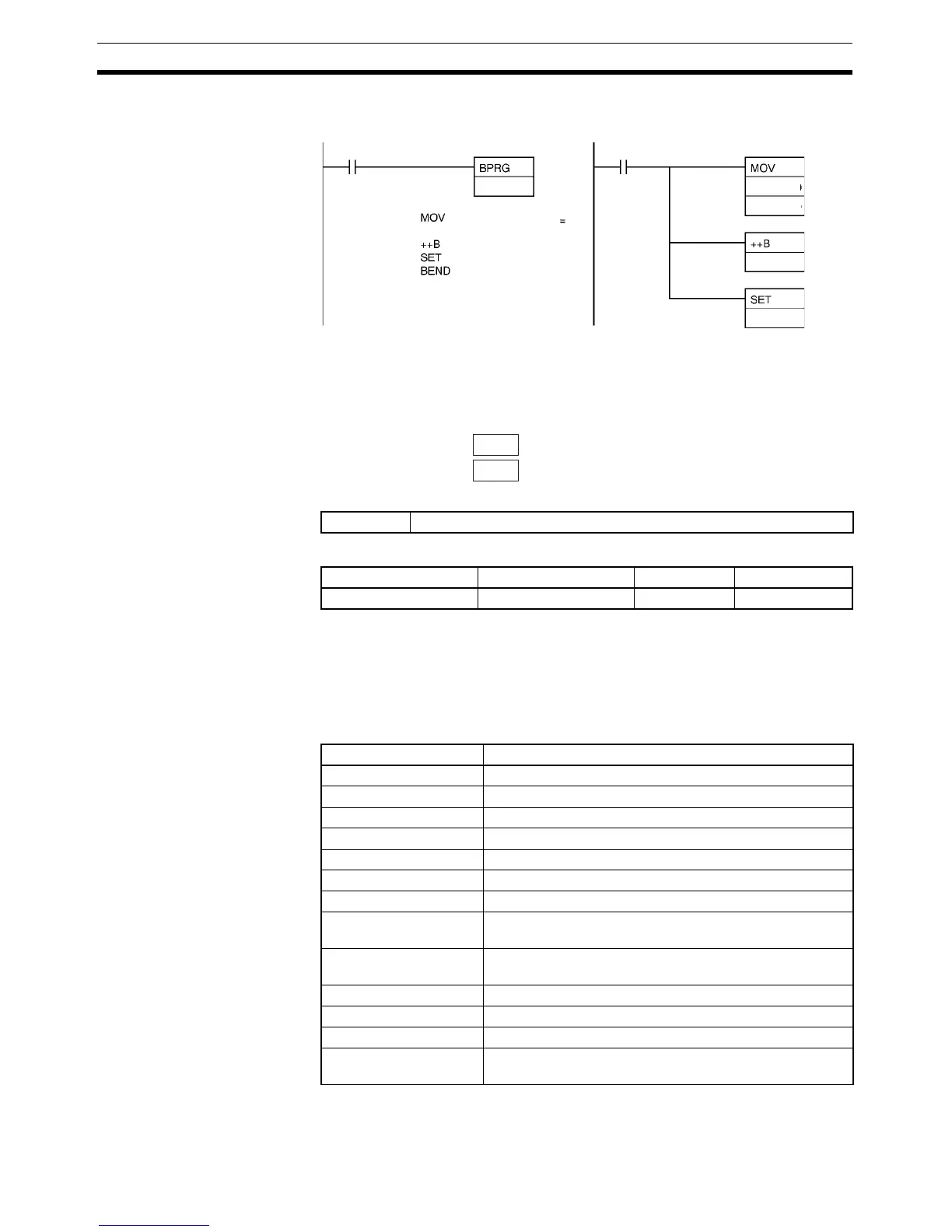

The two program sections shown below both execute MOV(021), ++B(594),
and SET for the same execution condition (i.e., when CIO 0.00 turns ON).
3-30-3 BLOCK PROGRAM PAUSE/RESTART: BPPS(811)/BPRS(812)
Purpose Pause and restart the specified block program from another block program.
Ladder Symbol
Variations
Applicable Program Areas
Note BPRG(096) and BPRS(812) must be used in block programming regions even
within subroutines and interrupt tasks.
Operands N: Block Program Number
The block program number must be between 0 and 127 decimal.
Operand Specifications
0
0.00 0.00
D100
D200
D200
100.00
D100
D200
D200
100.00
BPPS(811) N
BPRS(812) N
N: Block program number
Variations Always Executed in Block Program
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
Area N
CIO Area ---
Work Area ---
Holding Bit Area ---
Auxiliary Bit Area ---
Timer Area ---
Counter Area ---
DM Area ---
Indirect DM addresses
in binary
---
Indirect DM addresses
in BCD
---
Constants 0 to 127 (decimal)
Data Registers ---
Index Registers ---
Indirect addressing
using Index Registers
---
