985
Block Programming Instructions Section 3-30

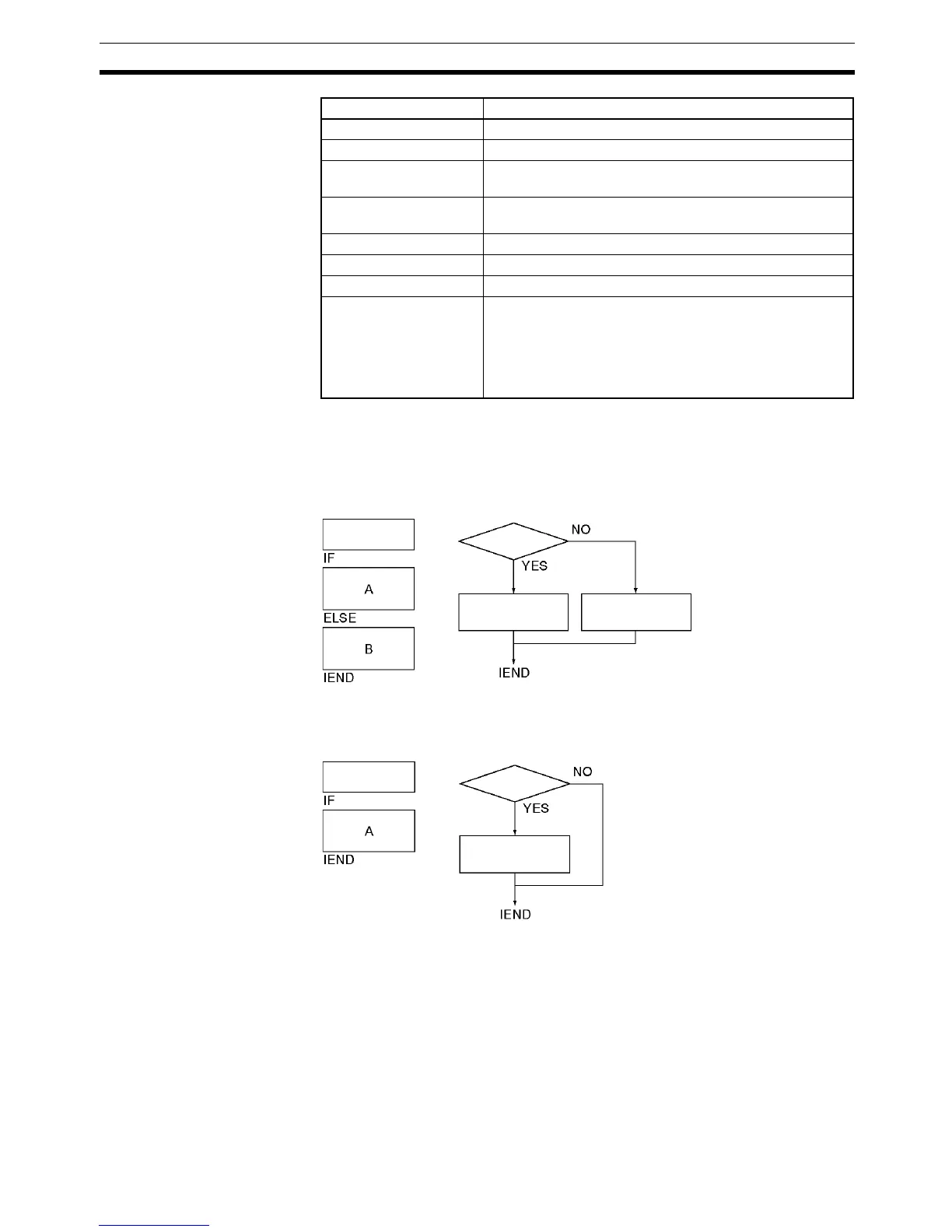

Description Operation without an Operand for IF(802)
If an operand bit is not specified, an execution must be created before IF(802)
starting with LD. If the execution condition is ON, the instructions between
IF(802) and ELSE(803) will be executed and if the execution condition is OFF,
the instructions between ELSE(803) and IEND(804) will be executed.
If the ELSE(803) instruction is omitted and the execution condition is ON, the
instructions between IF(802) and IEND(804) will be executed and if the execu-
tion condition is OFF, only the instructions after IEND(804) will be executed.
Clock Pulses 0.02 s, 0.1 s, 0.2 s, 1 s, 1 min
DM Area ---
Indirect DM addresses
in binary
---
Indirect DM addresses
in BCD
---
Constants ---
Data Registers ---
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Area B
"B" executed
(after ELSE).
Execution
condition ON?
"A" executed (be-
tween IF and ELSE).
Execution
condition
Execution
condition ON?
"A" executed (be-
tween IF and IEND).
Execution
condition
To Next Page
