Block Programming Instructions Section 3-30

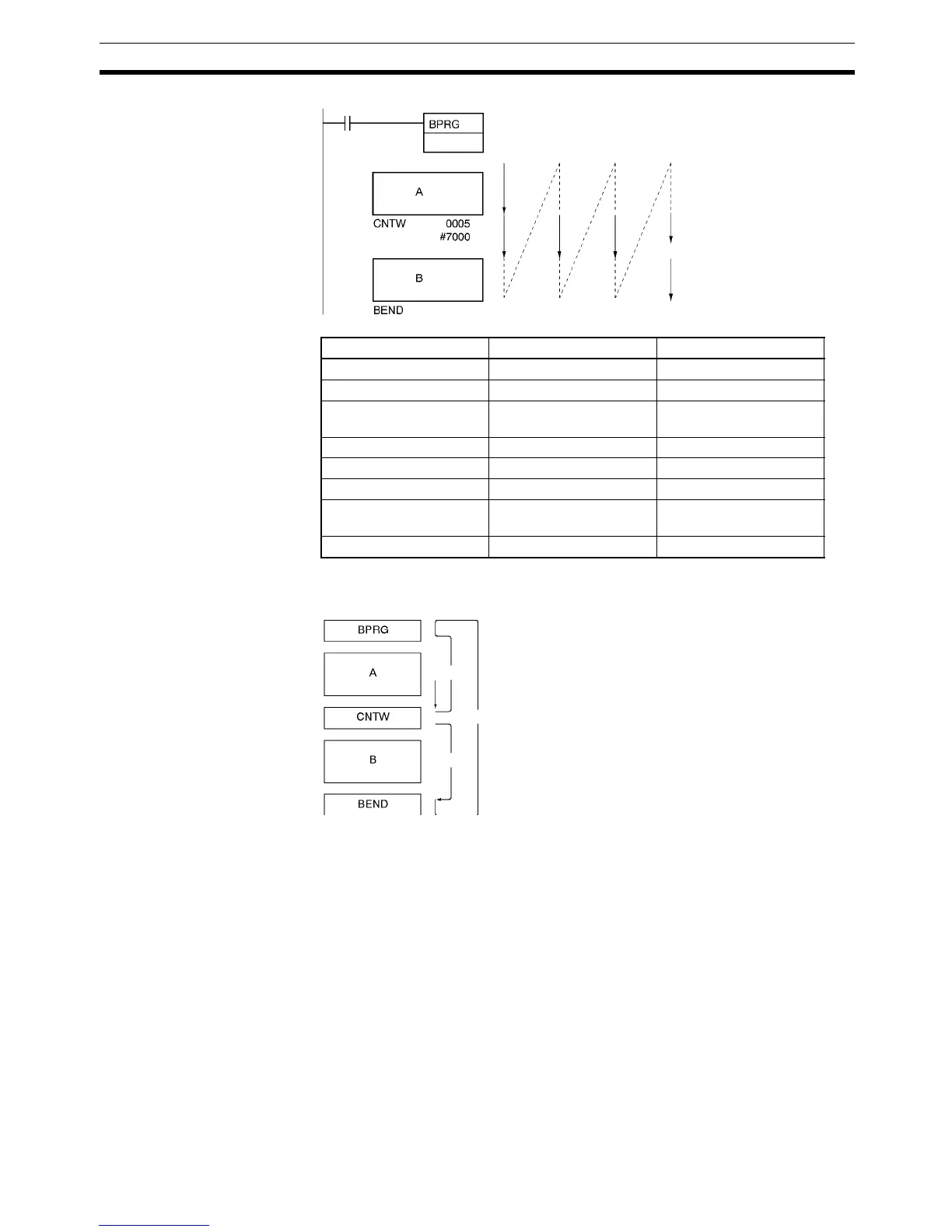

Program execution will flow from 2 to 3 to 4 and back to 2 during the 7,000
counts before “B” is executed, as shown in the following diagram.
3-30-9 HIGH-SPEED TIMER WAIT: TMHW(815) and TMHWX(817)
Purpose Delays execution of the rest of the block program until the specified time has
elapsed. Execution will be continued from the next instruction after
TMHW(815)/TMHWX(817) when the timer times out.
Ladder Symbol PV Refresh Method: BCD
PV Refresh Method: Binary
Address Instruction Operand
000200 LD 0.00
000201 BPRG 0
.
.
A.
.
000210 CNTW 5
#7000
1.00
.
.
B.
.
000220 BEND ---
0
0.00
1.00
Counter counts out.
Updated
CIO 1.00
counted.
Updated
14
2
3
TMHW(815) N
SV
N: Timer number
SV: Set value
TMHWX(817) N
SV
N: Timer number
SV: Set value
