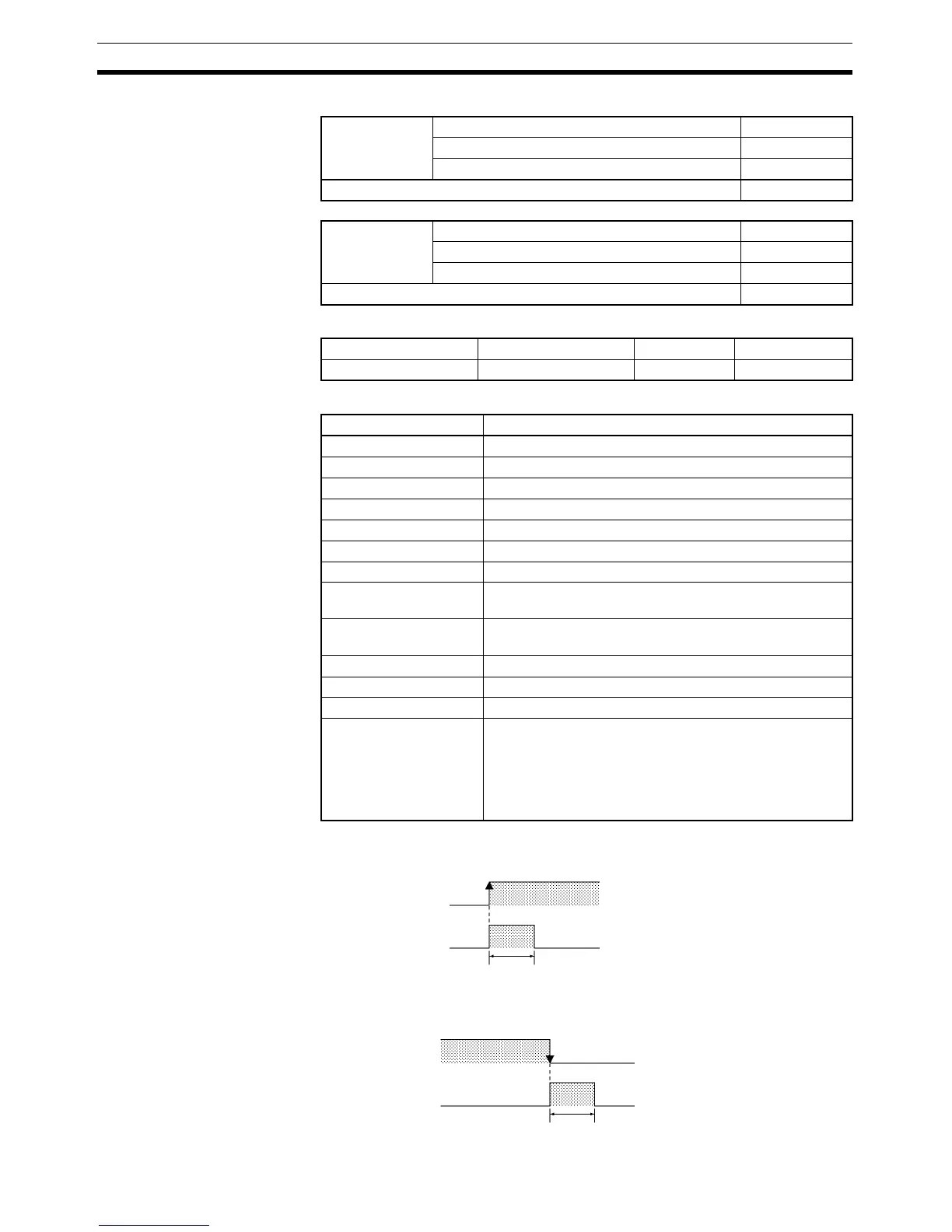

Sequence Output Instructions Section 3-3
Variations
Applicable Program Areas
Operand Specifications
Description When the execution condition goes from OFF to ON, DIFU(013) turns B ON.
When DIFU(013) is reached in the next cycle, B is turned OFF.
When the execution condition goes from ON to OFF, DIFD(014) turns B ON.
When DIFD(014) is reached in the next cycle, B is turned OFF.
Variations Executed Each Cycle for ON Condition Not supported
Executed Once for Upward Differentiation DIFU(013)
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification !DIFU(013)
Variations Executed Each Cycle for ON Condition Not supported
Executed Once for Upward Differentiation DIFD(014)
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification !DIFD(014)
Block program areas Step program areas Subroutines Interrupt tasks
Not allowed OK OK OK
Area B
CIO Area CIO 0.00 to CIO 6143.15
Work Area W0.00 to W511.15
Holding Bit Area H0.00 to H511.15
Auxiliary Bit Area A448.00 to A959.15
Timer Area ---
Counter Area ---
DM Area ---
Indirect DM addresses
in binary
---
Indirect DM addresses
in BCD
---
Constants ---
Data Registers ---
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047, IR0 to –2048 to +2047, IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –) IR0 to ,15–(– –) IR
Status of B
1 cycle
Execution condition
Status of B
1 cycle
Execution condition
