147
Sequence Control Instructions Section 3-4

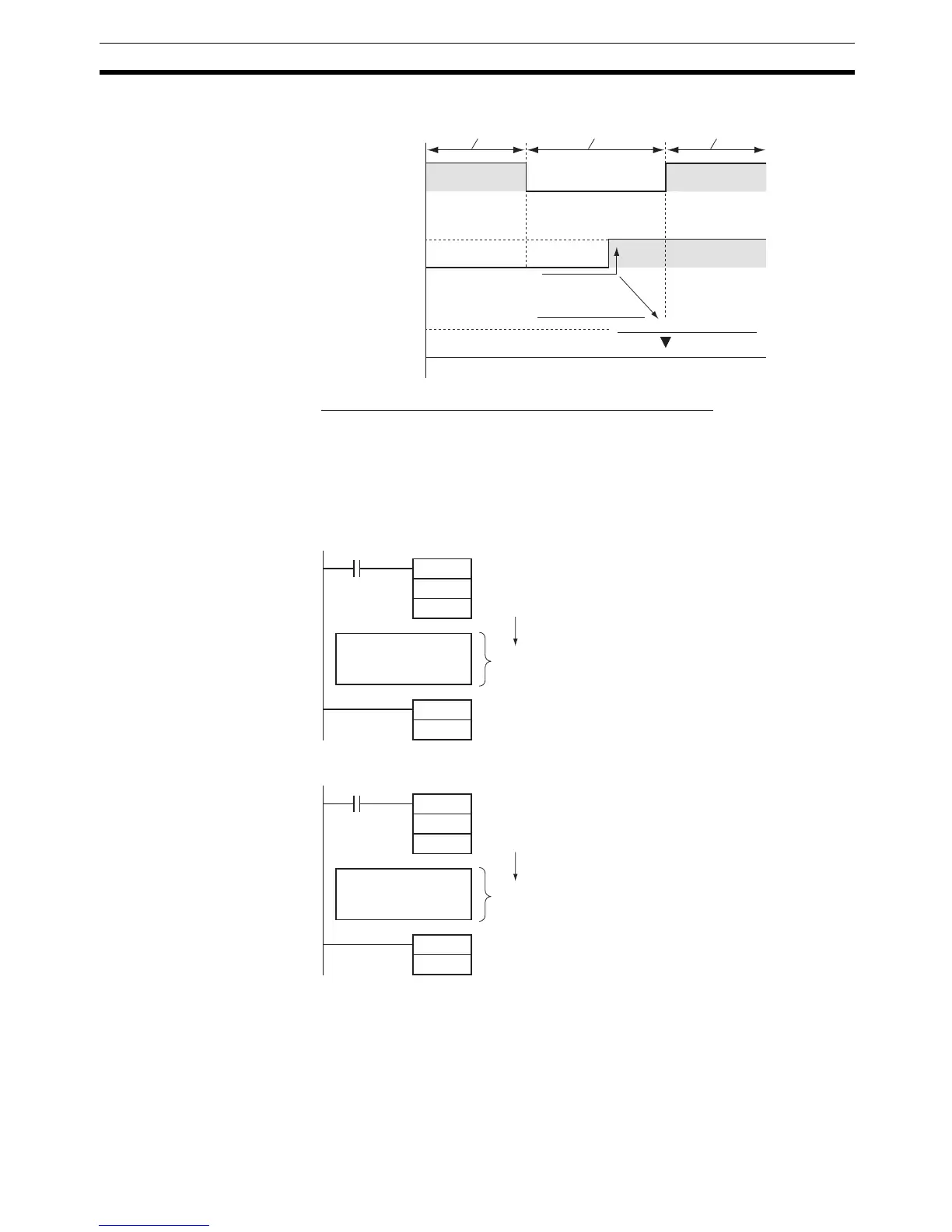

Timing Chart
Controlling Interlock Status from the CX-Programmer
An interlock can be engaged or released manually by force-resetting or force-
setting the Interlock Status Bit (specified with operand D of MILH(517) and
MILR(518)) from the CX-Programmer. The forced status of the Interlock Sta-
tus Bit has priority and overrides the interlock status calculated by program
execution.
Force-set: Releases the interlock.
Force-reset: Engages the interlock.
Note Program operation can be switched more efficiently by using interlocks with
MILH(517) or MILR(518).
ON
0.00
0.01
100.00
OFF
OFF
ON
ON
OFF
ON
OFF
DIFU(013) is not executed.
MILR(518) interlock
Not interlocked Interlocked Not interlocked
MILC
n
OFF
MILH
n
100.00
If CIO 100.00 is force-set (ON), the interlock is released.
CIO 100.00 is OFF when the interlock is engaged.
Program section
controlled by interlock
MILC
n
ON
MILH
n
100.00
If CIO 100.00 is force-reset (OFF), the interlock is engaged.
CIO 100.00 is ON when the interlock is not engaged.
Program section
controlled by interlock
