167
Sequence Control Instructions Section 3-4
Variations
Applicable Program Areas

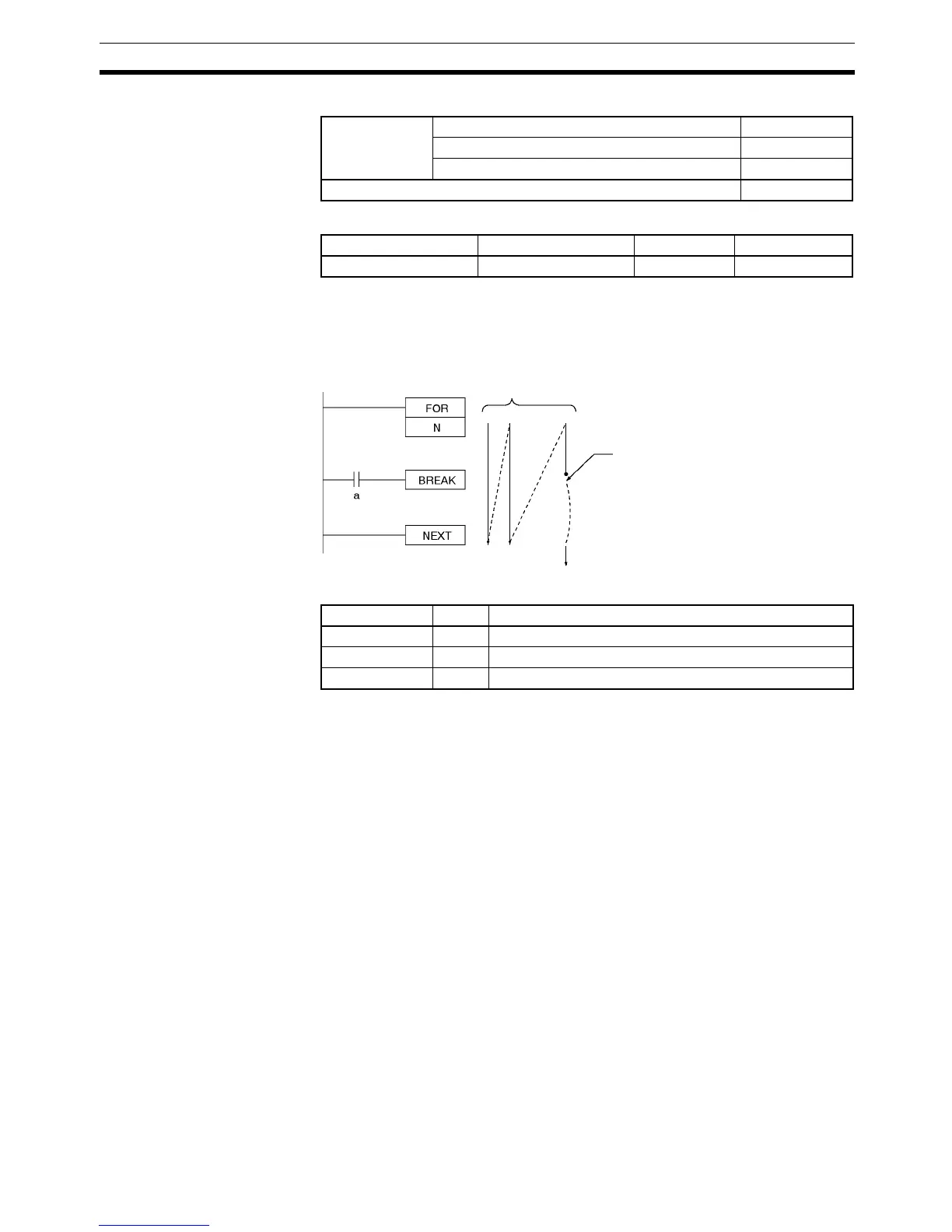

Description Program BREAK(514) between FOR(512) and NEXT(513) to cancel the
FOR-NEXT loop when BREAK(514) is executed. When BREAK(514) is exe-
cuted, the rest of the instructions up to NEXT(513) are processed as
NOP(000).
Flags
Precautions A BREAK(514) instruction cancels only one loop, so several BREAK(514)
instructions (the number of levels nested) are required to escape from nested
loops.
BREAK(514) can be used only in a FOR-NEXT loop.
Variations Executed Each Cycle for ON Condition BREAK(514)
Executed Once for Upward Differentiation Not supported
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification Not supported
Block program areas Step program areas Subroutines Interrupt tasks
Not allowed OK OK OK
N repetitions
Condition a ON
Processed as NOP(000).
Repetitions
forced to end.
Name Label Operation
Error Flag ER OFF
Equals Flag = OFF
Negative Flag N OFF
