Data Movement Instructions Section 3-7

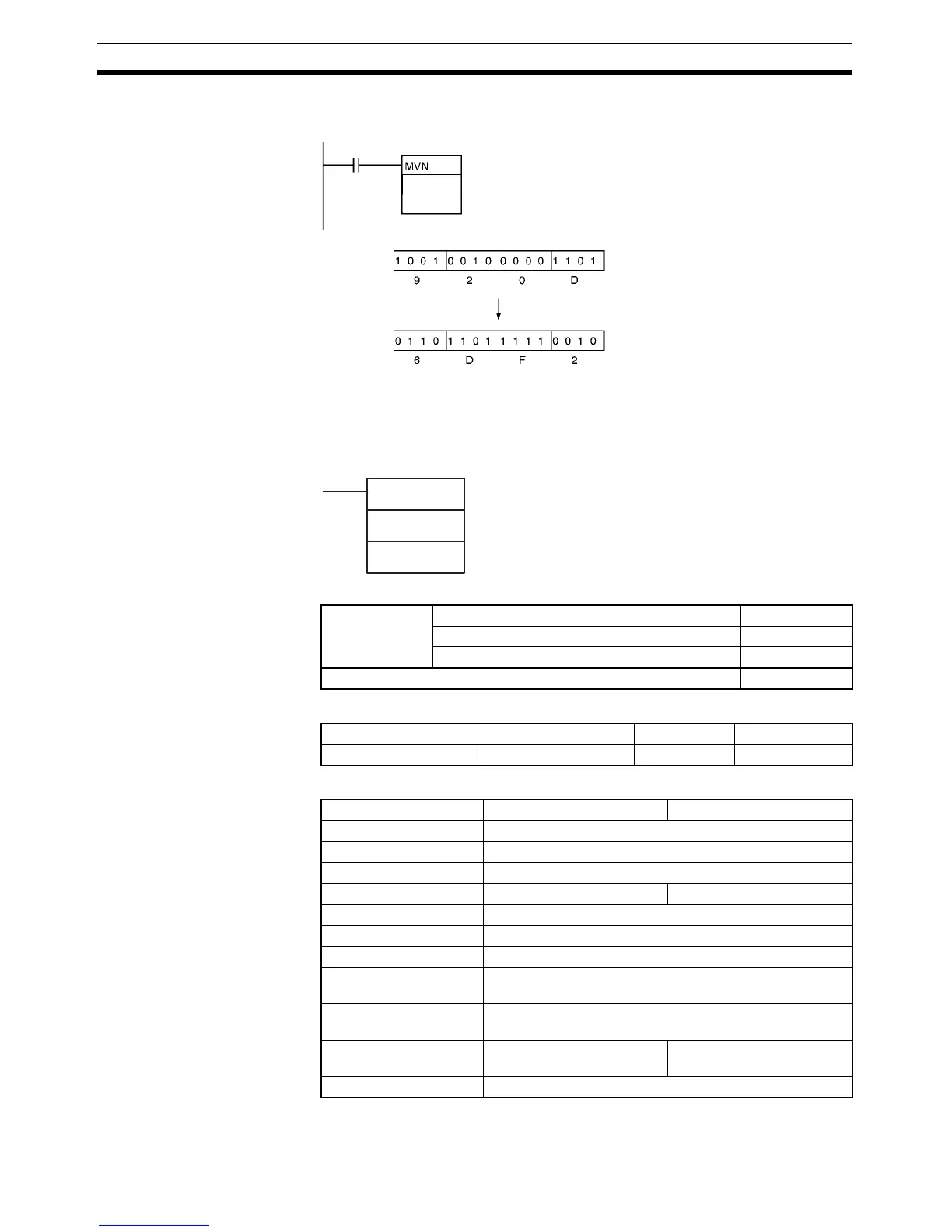

Example When CIO 0.00 is ON in the following example, the status of the bits in
CIO 200 is inverted and the result is copied to D100.
3-7-3 DOUBLE MOVE: MOVL(498)
Purpose Transfers two words of data to the specified words.
Ladder Symbol
Variations
Applicable Program Areas
Operand Specifications
0.00
200
D100
CIO 200
D100
S
D
MOVL(498)
S: First source word
D: First destination word
Variations Executed Each Cycle for ON Condition MOVL(498)
Executed Once for Upward Differentiation @MOVL(498)
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification Not supported
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
Area S D
CIO Area CIO 0 to CIO 6142
Work Area W0 to W510
Holding Bit Area H0 to H510
Auxiliary Bit Area A0 to A958 A448 to A958
Timer Area T0000 to T4094
Counter Area C0000 to C4094
DM Area D0 to D32766
Indirect DM addresses
in binary
@ D0 to @ D32767
Indirect DM addresses
in BCD
*D0 to *D32767
Constants #00000000 to #FFFFFFFF
(binary)
---
Data Registers ---
To Next Page
