Data Movement Instructions Section 3-7

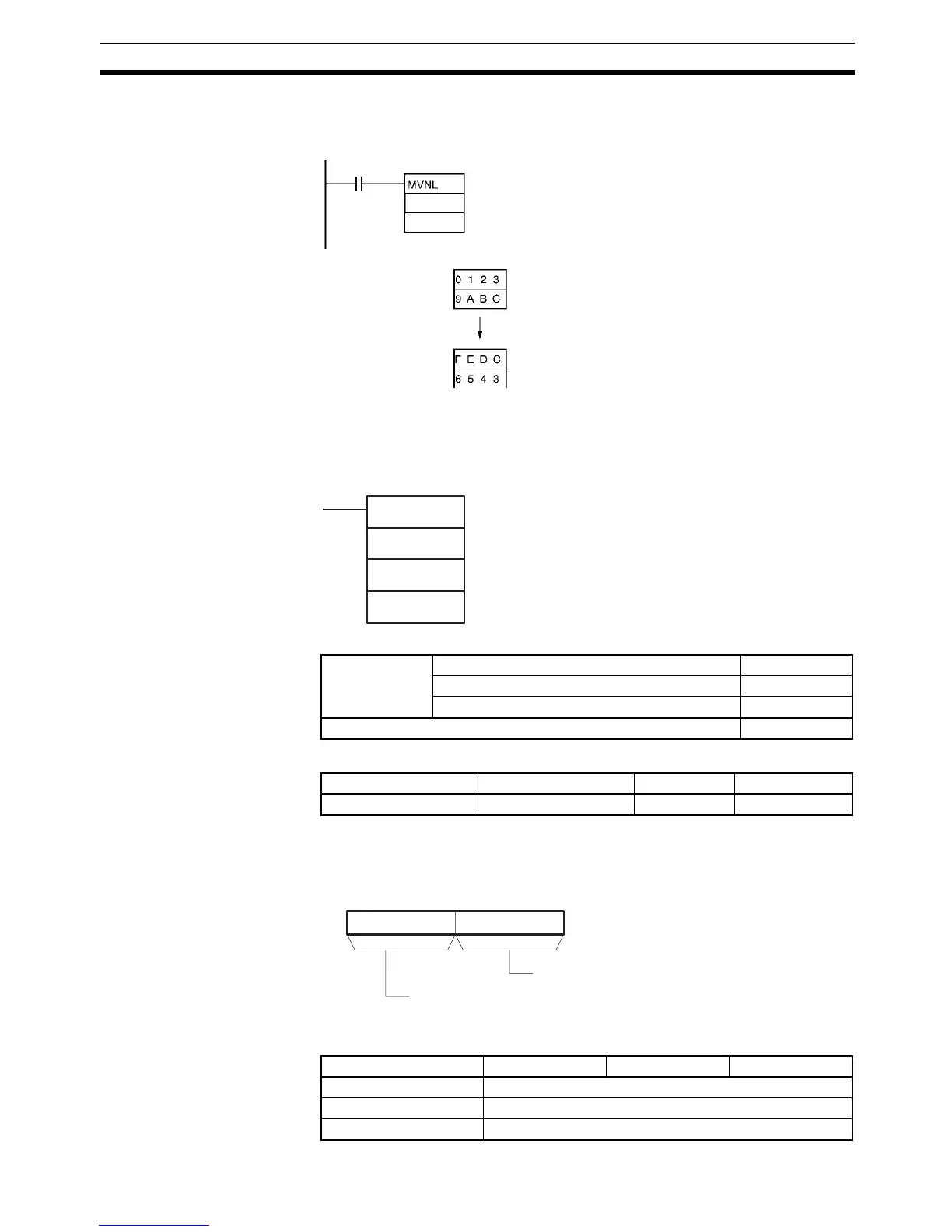

Examples When CIO 0.01 is ON in the following example, the status of the bits in D1001
and D1000 are inverted and the result is copied to D2001 and D2000. (The
original contents of D1001 and D1000 are left unchanged.)
3-7-5 MOVE BIT: MOVB(082)
Purpose Transfers the specified bit.
Ladder Symbol
Variations
Applicable Program Areas
Operands C: Control Word
The rightmost two digits of C indicate which bit of S is the source bit and the
leftmost two digits of C indicate which bit of D is the destination bit.
Operand Specifications
0.01
D1000
D2000
D1001
D1000
D2001
D2000
S
C
D
MOVB(082)
S: Source word or data
C: Control word
D: Destination word
Variations Executed Each Cycle for ON Condition MOVB(082)
Executed Once for Upward Differentiation @MOVB(082)
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification Not supported
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
15 8 07
C
Source bit: 00 to 0F
(0 to 15 decimal)
Destination bit: 00 to 0F
(0 to 15 decimal)
mn
Area S C D
CIO Area CIO 0 to CIO 6143
Work Area W0 to W511
Holding Bit Area H0 to H511
