Data Shift Instructions Section 3-8

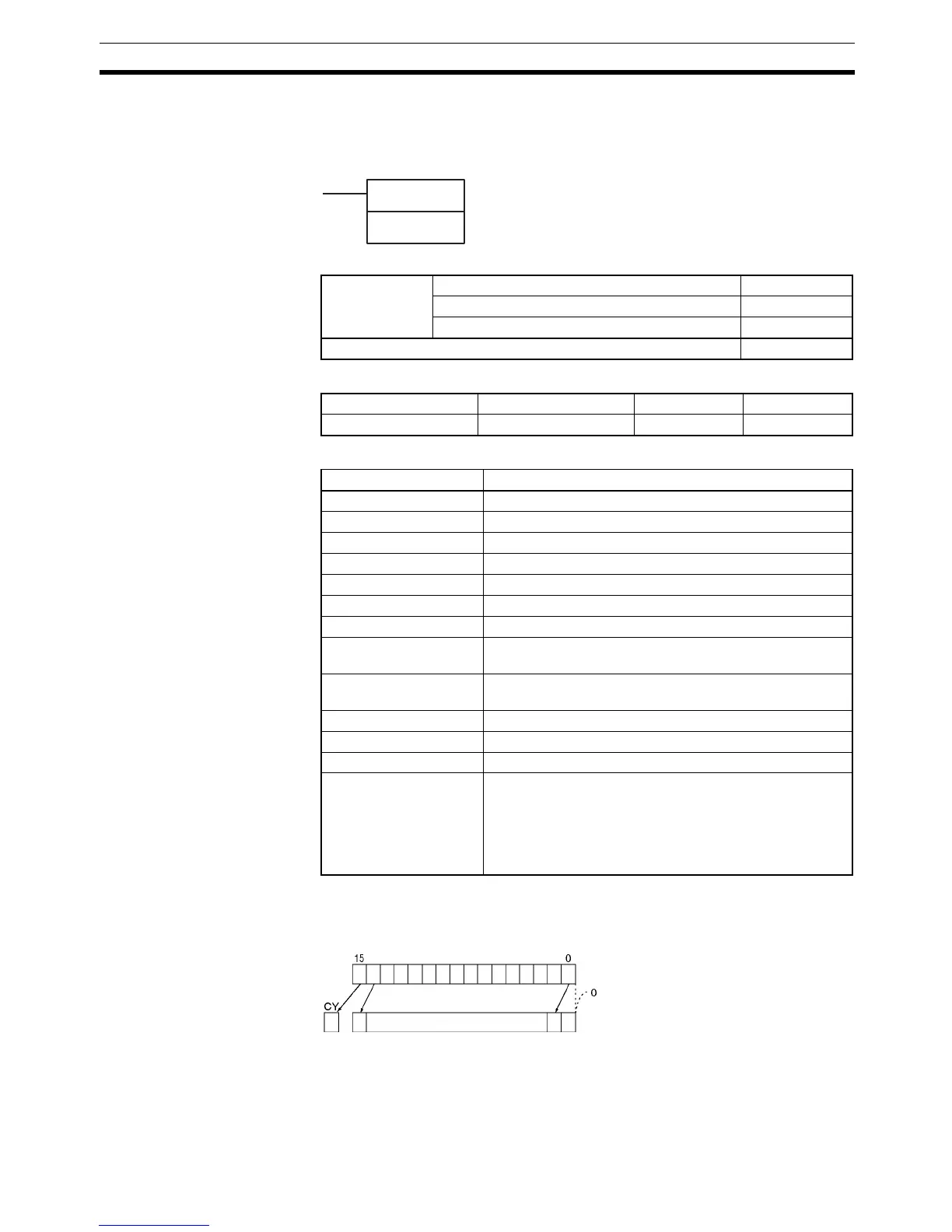

3-8-5 ARITHMETIC SHIFT LEFT: ASL(025)
Purpose Shifts the contents of Wd one bit to the left.
Ladder Symbol
Variations
Applicable Program Areas
Operand Specifications
Description ASL(025) shifts the contents of Wd one bit to the left (from rightmost bit to left-
most bit). “0” is placed in the rightmost bit and the data from the leftmost bit is
shifted into the Carry Flag (CY).
ASL(025)
Wd
Wd: Word
Variations Executed Each Cycle for ON Condition ASL(025)
Executed Once for Upward Differentiation @ASL(025)
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification Not supported
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
Area Wd
CIO Area CIO 0 to CIO 6143
Work Area W0 to W511
Holding Bit Area H0 to H511
Auxiliary Bit Area A448 to A959
Timer Area T0000 to T4095
Counter Area C0000 to C4095
DM Area D0 to D32767
Indirect DM addresses
in binary
@ D0 to @ D32767
Indirect DM addresses
in BCD
*D0 to *D32767
Constants ---
Data Registers DR0 to DR15
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
15 0
To Next Page
