Symbol Math Instructions Section 3-10
Examples When CIO 0.01 is ON in the following example, D201 and D200 will be
divided by D211 and D210 as 8-digit signed hexadecimal values, the quotient
will be output to D221 and D220, and the remainder will be output to D223
and D222.

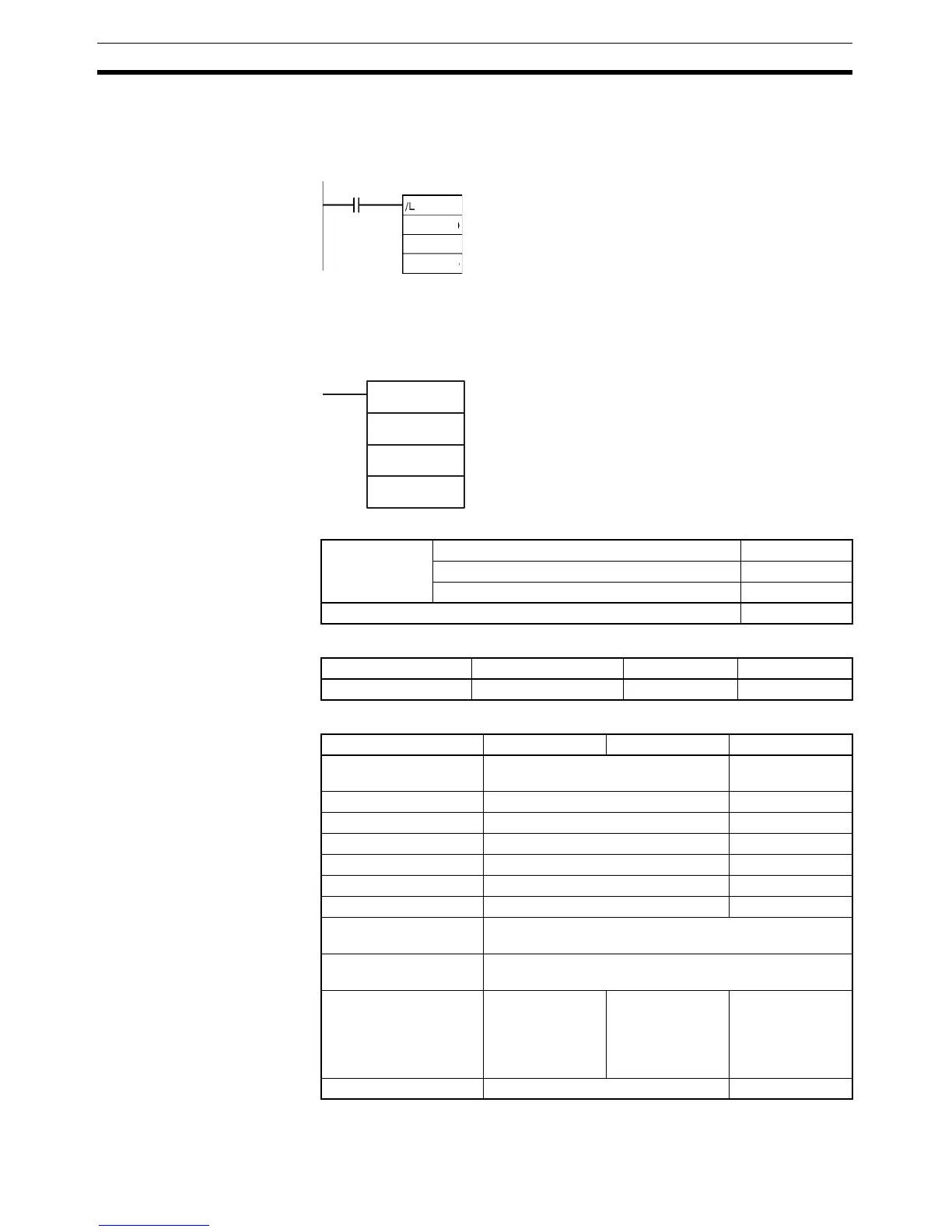

3-10-25 UNSIGNED BINARY DIVIDE: /U(432)
Purpose Divides 4-digit (single-word) unsigned hexadecimal data and/or constants.
Ladder Symbol
Variations
Applicable Program Areas
Operand Specifications
0.01
D200
D210
D220
/U(432)
R
Dd
Dr
Dd: Dividend word
Dr: Divisor word
R: Result word
Variations Executed Each Cycle for ON Condition /U(432)
Executed Once for Upward Differentiation @/U(432)
Executed Once for Downward Differentiation Not supported.
Immediate Refreshing Specification Not supported.
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
Area Dd Dr R
CIO Area CIO 0 to CIO 6143 CIO 0 to
CIO 6142
Work Area W0 to W511 W0 to W510
Holding Bit Area H0 to H511 H0 to H510
Auxiliary Bit Area A0 to A959 A448 to A958
Timer Area T0000 to T4095 T0000 to T4094
Counter Area C0000 to C4095 C0000 to C4094
DM Area D0 to D32767 D0 to D32766
Indirect DM addresses
in binary
@ D0 to @ D32767
Indirect DM addresses
in BCD
*D0 to *D32767
Constants #0000 to #FFFF
(binary)
&0 to &65535
(unsigned deci-
mal)
#0001 to #FFFF
(binary)
&1 to &65535
(unsigned deci-
mal)
---
Data Registers DR0 to 15 ---
