Conversion Instructions Section 3-11

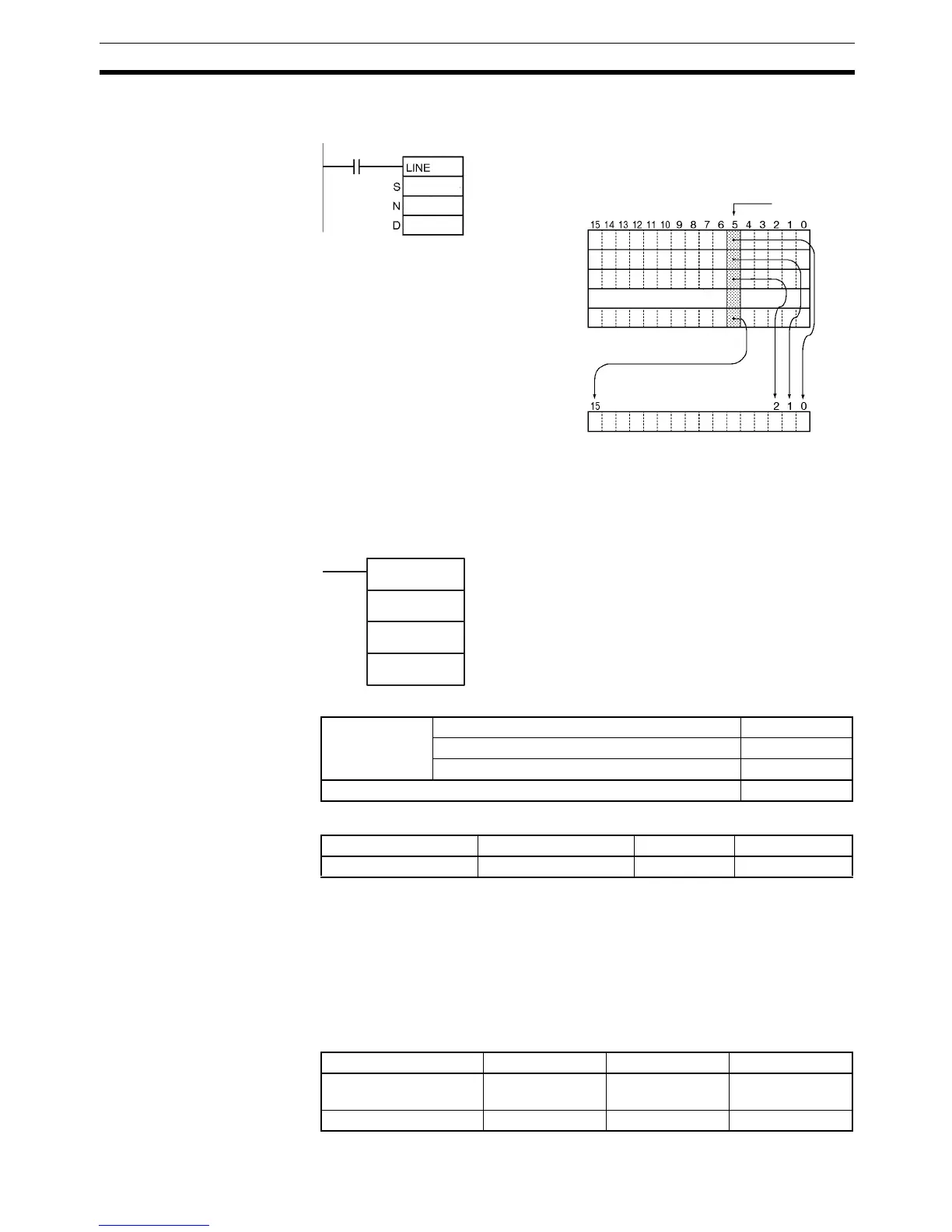

Example When CIO 0.00 is ON in the following example, LINE(063) copies bit 5 from
D100 to D115 to the 16 bits in D200.
3-11-13 LINE TO COLUMN: COLM(064)
Purpose Converts the 16 bits of the source word to a column of bits in a 16-word range
of destination words (the same bit number in 16 consecutive words).
Ladder Symbol
Variations
Applicable Program Areas
Operands D: First Destination Word
Specifies the first destination word. D and D+15 must be in the same data
area.
N: Bit Number
Specifies the bit number (0000 to 000F or &0 to &15) to be overwritten by the
source word.
Operand Specifications
N: #000
D: D200
to
&5
0.00
D100
D200
S: D100
D101
D102
to
D115
COLM(064)
S
D
N
S: Source word
D: First destination word
N: Bit number
Variations Executed Each Cycle for ON Condition COLM(064)
Executed Once for Upward Differentiation @COLM(064)
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification Not supported
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
Area S D N
CIO Area CIO 0 to
CIO 6143
CIO 0 to
CIO 6128
CIO 0 to
CIO 6143
Work Area W0 to W511 W0 to W496 W0 to W511
