419
Conversion Instructions Section 3-11

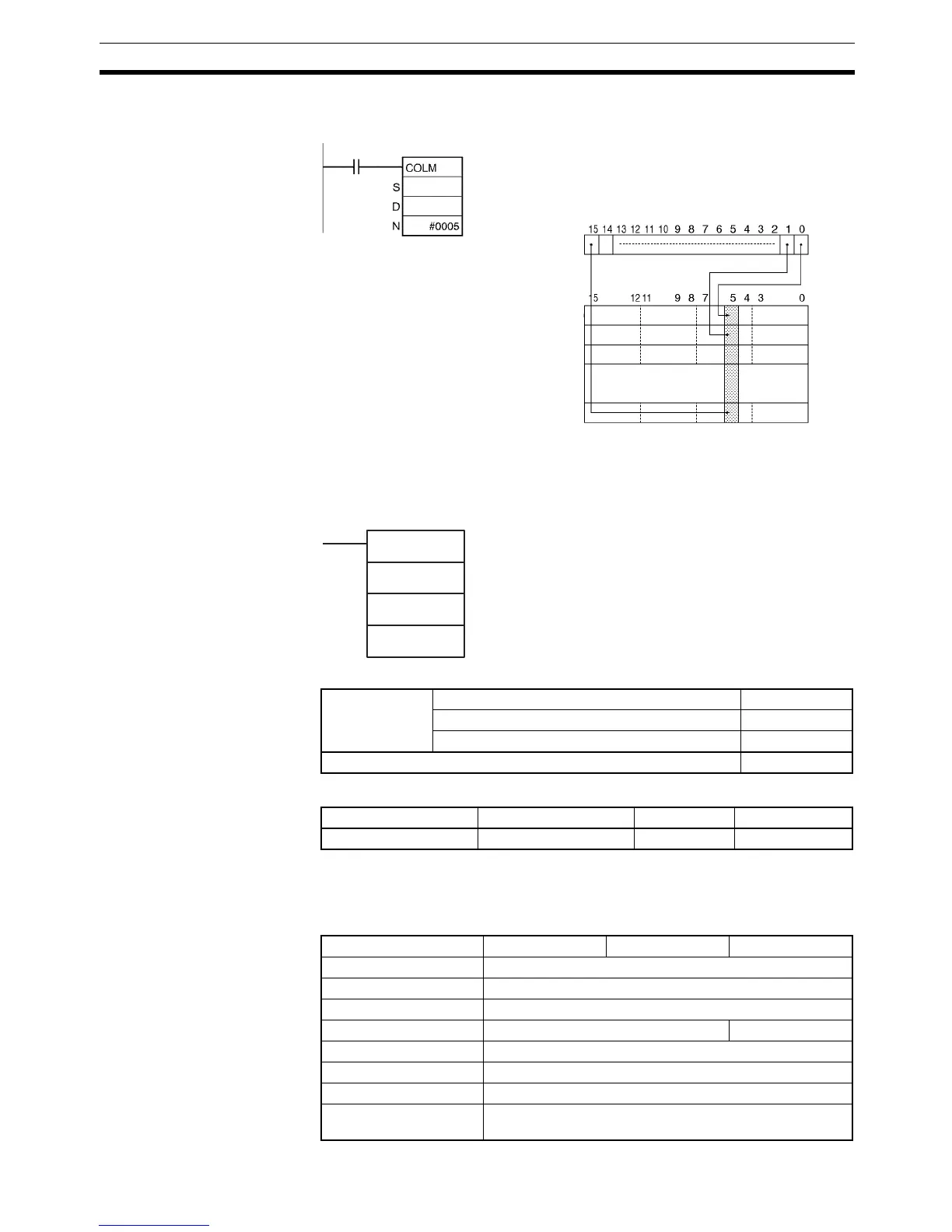

Example When CIO 0.00 is ON in the following example, COLM(064) copies the 16 bits
in D200 (bits 00 through 15) to bit 5 in D100 through D115.
3-11-14 SIGNED BCD-TO-BINARY: BINS(470)
Purpose Converts one word of signed BCD data to one word of signed binary data.
Ladder Symbol
Variations
Applicable Program Areas
Operands C: Control Word
Specifies the signed BCD format. C must be 0000 to 0003.
Operand Specifications
S: D200
to
D: D100
D101
D102
to
0.00
D200
D100
D115
BINS(470)
C
S
D
C: Control word
S: Source word
D: Destination word
Variations Executed Each Cycle for ON Condition BINS(470)
Executed Once for Upward Differentiation @BINS(470)
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification Not supported
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
Area C S D
CIO Area CIO 0 to CIO 6143
Work Area W0 to W511
Holding Bit Area H0 to H511
Auxiliary Bit Area A0 to A959 A448 to A959
Timer Area T0000 to T4095
Counter Area C0000 to C4095
DM Area D0 to D32767
Indirect DM addresses
in binary
@ D0 to @ D32767
