Floating-point Math Instructions Section 3-14
Operand Specifications
Description SQRT(466) calculates the square root of the 32-bit floating-point number in
S+1 and S and places the result in R+1 and R. (The floating point source data
must be in IEEE754 format.)
The source data must be positive; if it is negative, an error will occur and the
instruction will not be executed.
If the absolute value of the result is greater than the maximum value that can
be expressed as floating-point data, the Overflow Flag will turn ON and the
result will be output as
±∞.

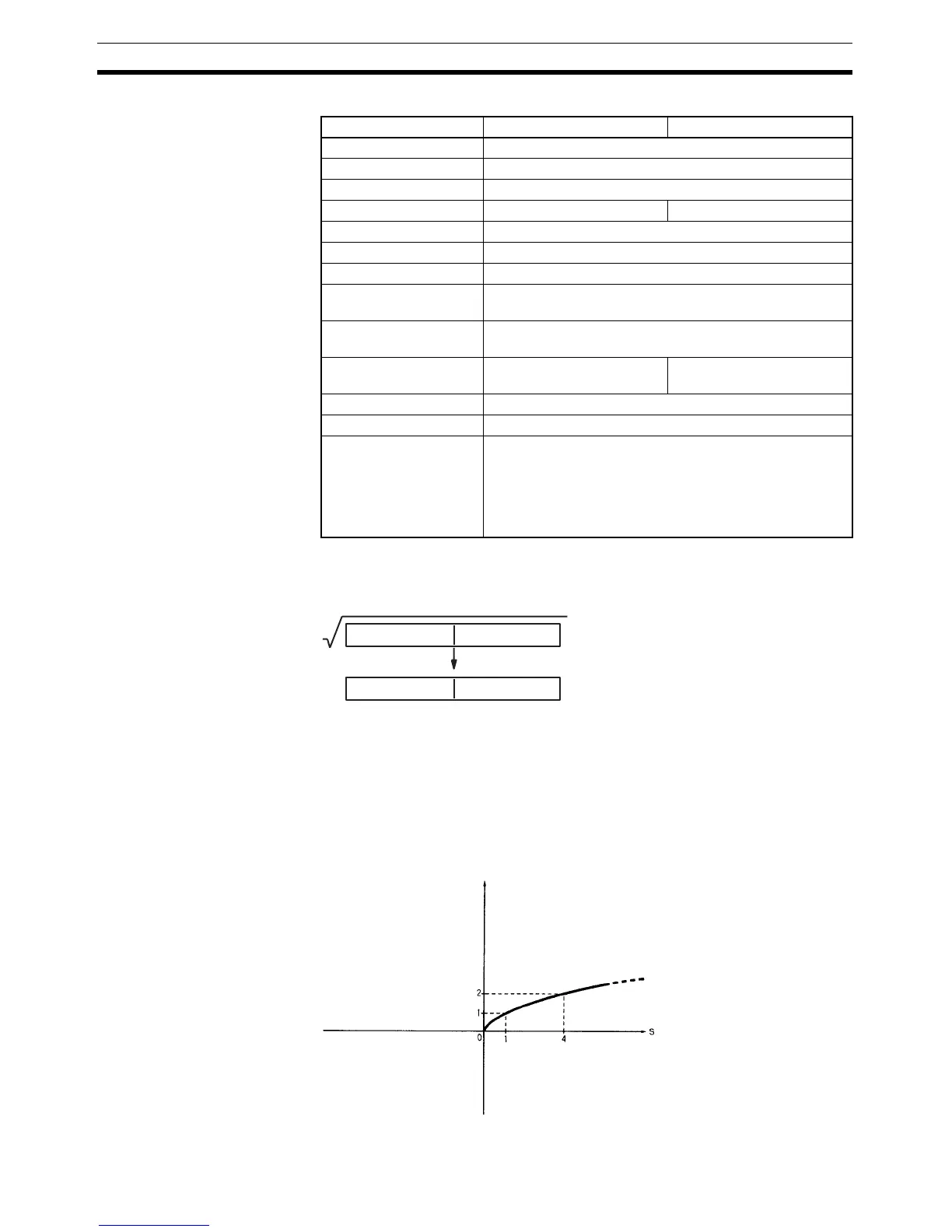

The following diagram shows the relationship between the input data and
result.
Area S R
CIO Area CIO 0 to CIO 6142
Work Area W0 to W510
Holding Bit Area H0 to H510
Auxiliary Bit Area A0 to A958 A448 to A958
Timer Area T0000 to T4094
Counter Area C0000 to C4094
DM Area D0 to D32766
Indirect DM addresses
in binary
@ D0 to @ D32767
Indirect DM addresses
in BCD
*D0 to *D32767
Constants #00000000 to #FFFFFFFF
(binary)
---
Data Registers ---
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
R+1
R
S
S+1
Source (32-bit floating-point data)
Result (32-bit floating-point data)
R
S: Input data
R: Result
