Data Control Instructions Section 3-17
Operand Specifications
Description When the execution condition is ON, PID(190) carries out target value filtered
PID control with two degrees of freedom according to the parameters desig-
nated by C (set value, PID constant, etc.). It takes the specified input range of
binary data from the contents of input word S and carries out the PID action
according to the parameters that are set. The result is then stored as the
manipulated variable in output word D.
The parameters are obtained when the execution condition turns from OFF to
ON, and the Error Flag will turn ON if the settings are outside of the permissi-
ble range.

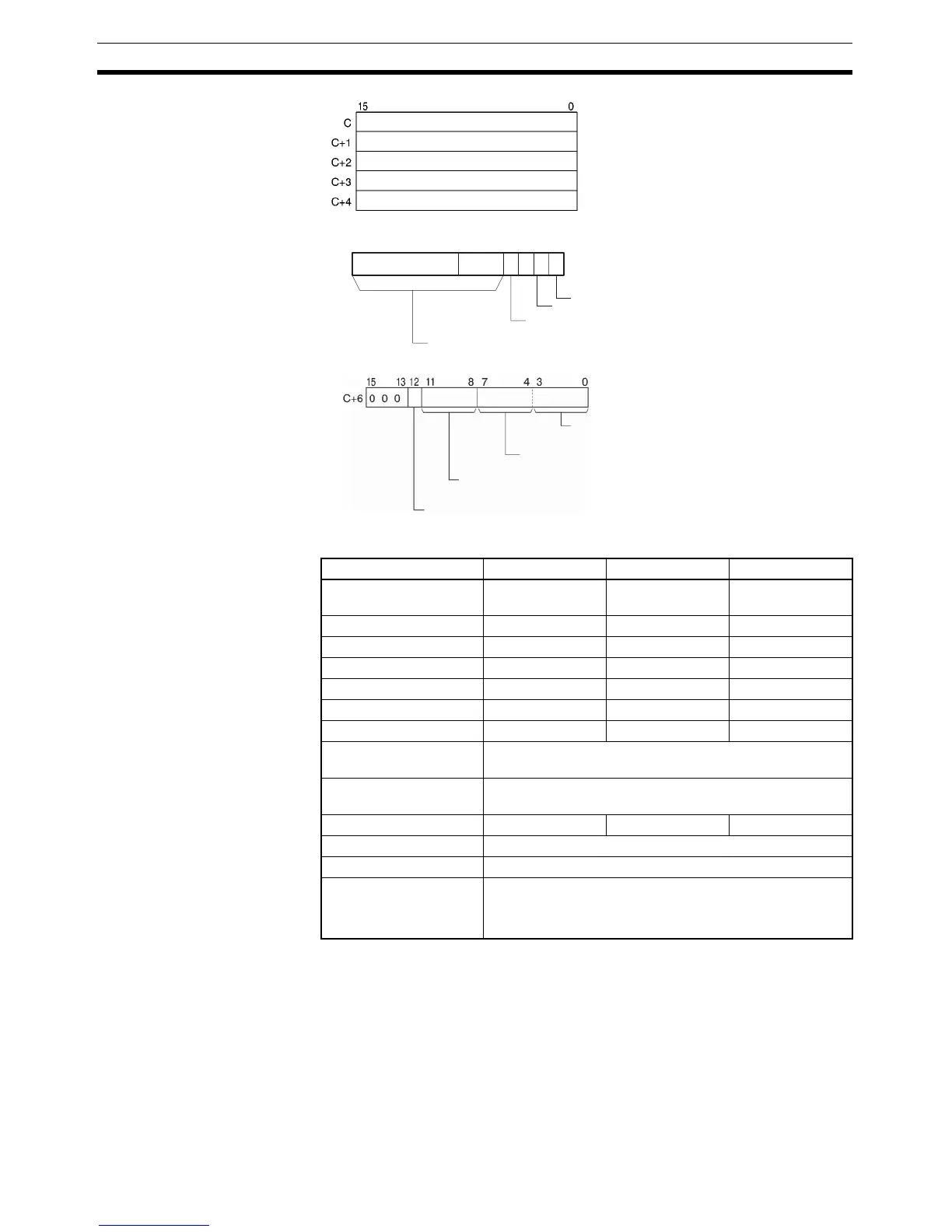

15 8 07
C+5
0
32 14
Set value (SV)
Proportional band (P)
Integral constant (Tik)
Derivative constant (Tdk)
Sampling period ( τ)
Forward/reverse designation
PID constant update timing designation
Manipulated variable output setting
2-PID parameter (α)
Output range
Integral and derivative unit
Input range
Manipulated variable output limit control
Area S C D
CIO Area CIO 0 to
CIO 6143
CIO 0 to
CIO 6105
CIO 0 to
CIO 6143
Work Area W0 to W511 W0 to W473 W0 to W511
Holding Bit Area H0 to H511 H0 to H473 H0 to H511
Auxiliary Bit Area A0 to A959 A0 to A921 A448 to A959
Timer Area T0000 to T4095 T0000 to T4057 T0000 to T4095
Counter Area C0000 to C4095 C0000 to C4057 C0000 to C4095
DM Area D0 to D32767 D0 to D32729 D0 to D32767
Indirect DM addresses
in binary
@ D0 to @ D32767
Indirect DM addresses
in BCD
*D0 to *D32767
Constants DR0 to DR15 --- DR0 to DR15
Data Registers ---
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
