Network Instructions Section 3-24

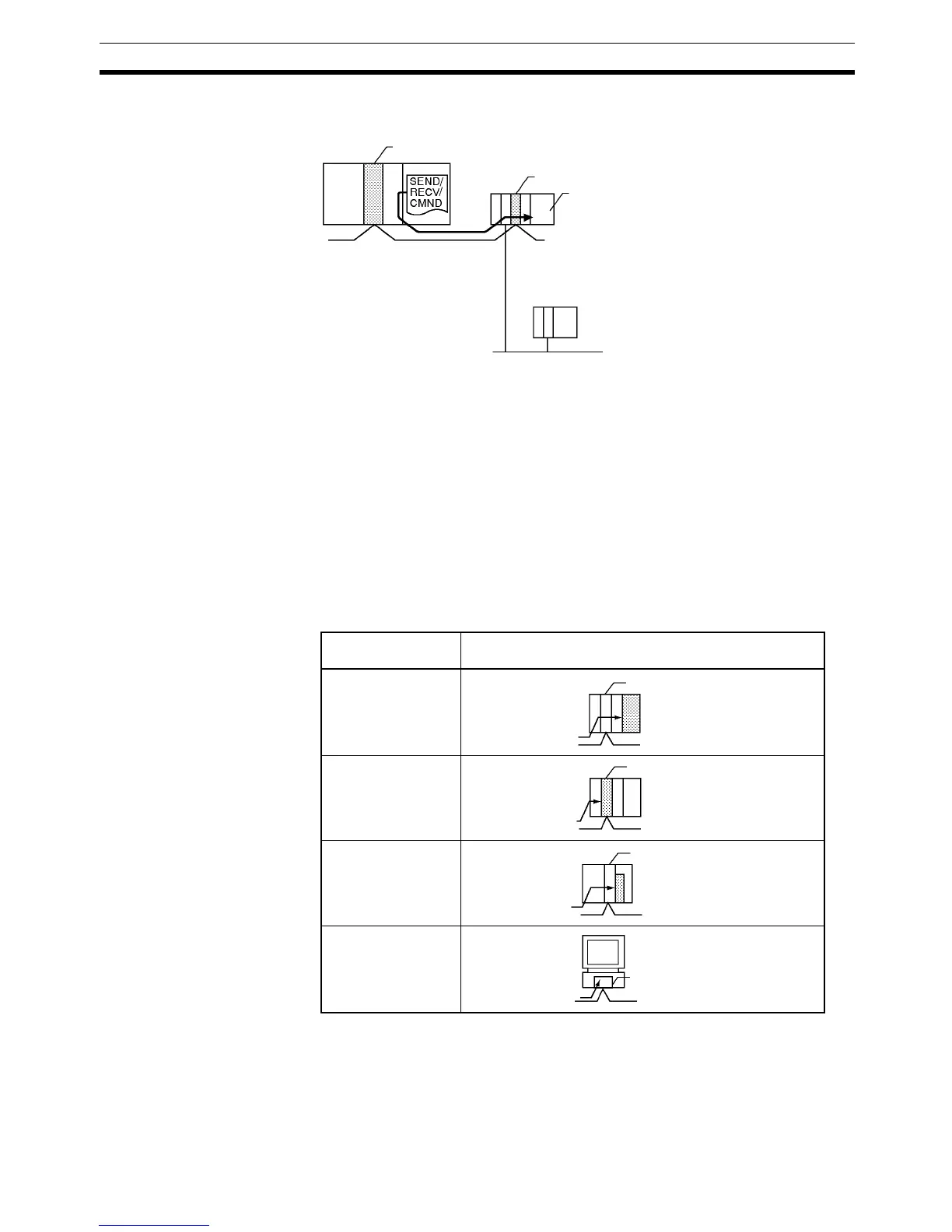

In the following example, a FINS command is sent to the CPU Unit through
node number 2 in network address 00.
1,2,3... 1. Network address:
Address of the network (local network = 00)
2. Node number
Logical address in the network
3. Unit number
Unit number of the destination Unit
a. CP-series or CS/CJ-series CPU Unit: 00
b. CS/CJ-series CPU Bus Unit: Unit number + 10 hexadecimal
c. CS/CJ-series Special I/O Unit: Unit number + 20 hexadecimal
d. CS-series Inner Board: E1 hexadecimal
e. Computer:01
Note It is also possible to directly specify a serial port (unit address) within the des-
tination device.
Network address 01
CPU Unit (Rack)
Node number 2
Node number 1
Network address 00
(local network)
Unit number
(hexadecimal)
Destination device
00
Unit number +10
E1
01
Node number
Node number
Node number
Node number
