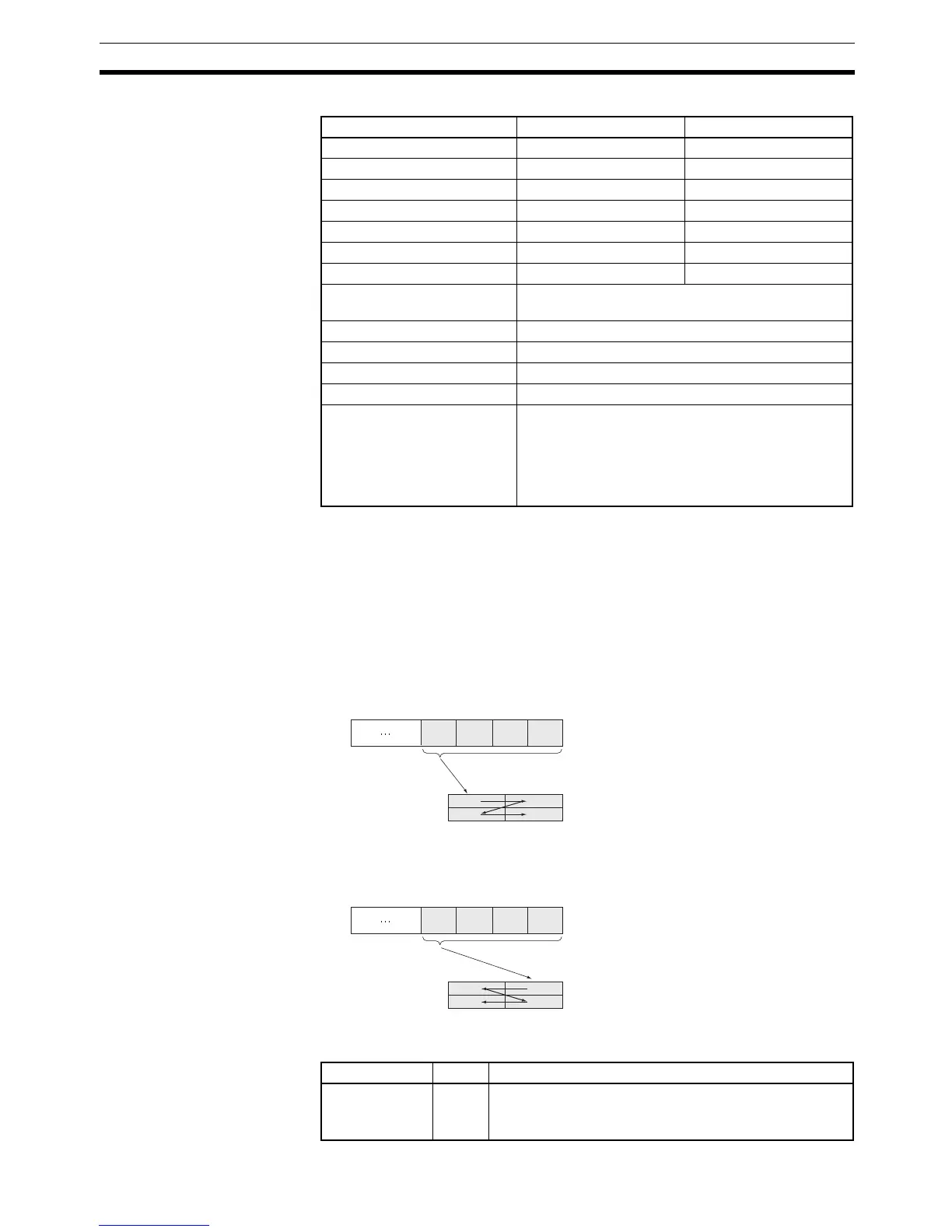

899
Network Instructions Section 3-24
Operand Specifications
Description Sends the explicit message command with service code 10 hex (stored in the
range of words beginning at S+2) to the node address specified in S+1, via
the Communications Unit with the FINS unit address specified in bits 00 to 07
of C. When the response to the explicit message is received, it is stored in the
range of words beginning at D+2.
The setting in bits 12 to 15 of C (0 or 8 hex) determines the byte-order of the
service data stored at S+5.
• Storing Data from the Leftmost Byte
Set bits 12 to 15 of C to 0 hex.
• Storing Data from the Rightmost Byte
Set bits 12 to 15 of C to 8 hex.
Flags
Area S C
CIO Area CIO 0 to CIO 6143 CIO 0 to CIO 6141
Work Area W0 to W511 W0 to W509
Holding Bit Area H0 to H511 H0 to H509
Auxiliary Bit Area A0 to A959 A0 to A957
Timer Area T0000 to T4095 T0000 to T4093
Counter Area C0000 to C4095 C0000 to C4093
DM Area D0 to D32767 D0 to D32765
Indirect DM addresses in
binary
@ D0 to @ D32767
Indirect DM addresses in BCD *D0 to *D32767
Constants ---
Data Registers ---
Index Registers ---
Indirect addressing using
Index Registers
,IR0 to ,IR15
–2048 to +2047, IR0 to –2048 to +2047, IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
A
15
AS+5
S+6
B
CD
08 07 00
BCD
Frame (order of data in line)
Stored from leftmost byte.
Note: A, B, C, and D represent bytes of data.
Data
area
A
15
BS+5
S+6
A
DC
08 07 00
BCD
Frame (order of data in line)
Stored from rightmost byte.
Note: A, B, C, and D represent bytes of data.
Data
area
Name Label Operation
Error Flag ER ON if the Communications Port Enabled Flag is OFF for
the communications port number specified in C.
OFF in all other cases.
