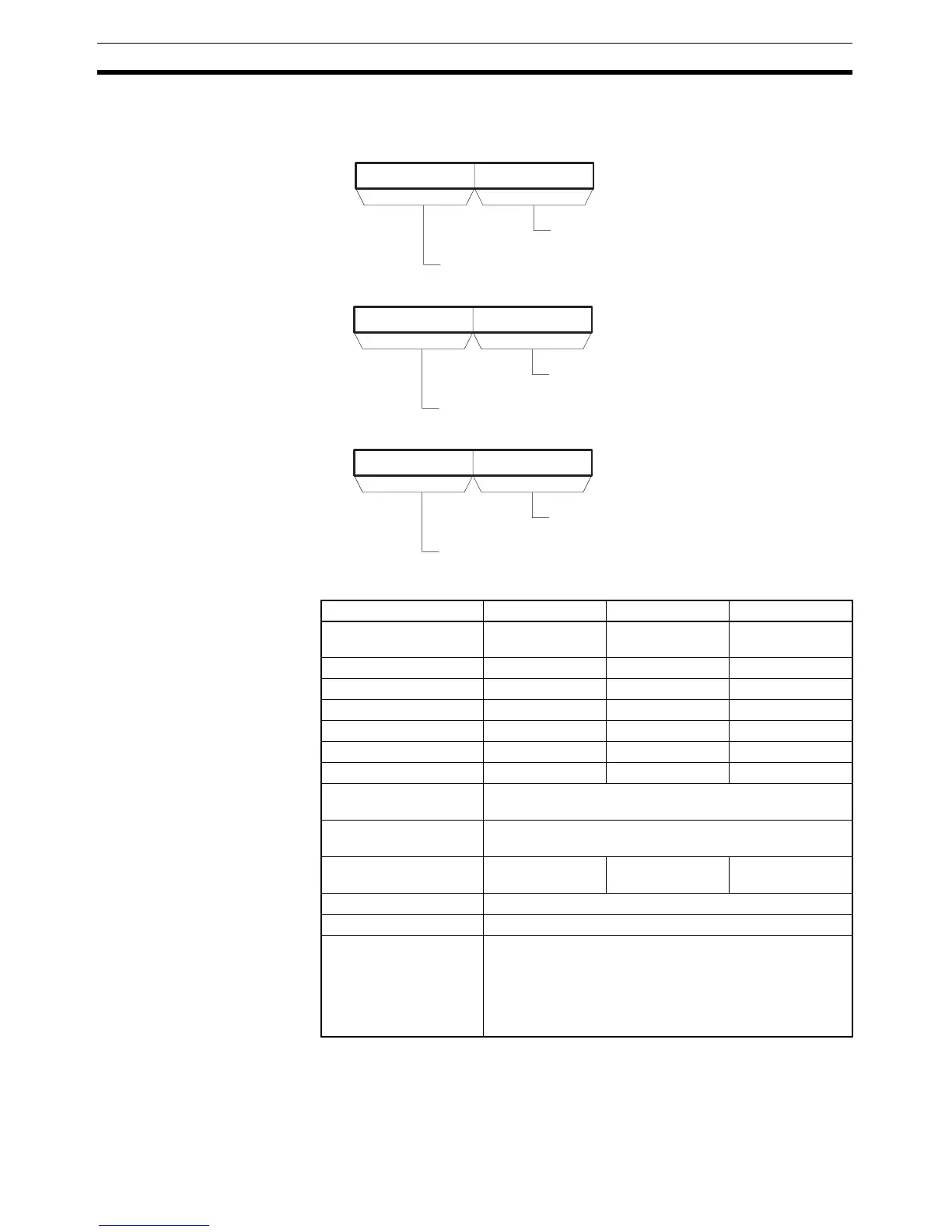

Clock Instructions Section 3-26
R through R+2: Result Data
R through R+2 contain the result of the addition.
Operand Specifications
15 8 07
R
15 8 07
R+1
15 8 07
R+2
Seconds: 00 to 59 (BCD)
Minutes: 00 to 59 (BCD)
Hour: 00 to 23 (BCD)
Day: 01 to 31 (BCD)
Month: 01 to 12 (BCD)
Year: 00 to 99 (BCD)
Area C T R
CIO Area CIO 0 to
CIO 6141
CIO 0 to
CIO 6142
CIO 0 to
CIO 6141
Work Area W0 to W509 W0 to W510 W0 to W509
Holding Bit Area H0 to H509 H0 to H510 H0 to H509
Auxiliary Bit Area A0 to A957 A0 to A958 A448 to A957
Timer Area T0000 to T4093 T0000 to T4094 T0000 to T4093
Counter Area C0000 to C4093 C0000 to C4094 C0000 to C4093
DM Area D0 to D32765 D0 to D32766 D0 to D32765
Indirect DM addresses
in binary
@D0 to @D32767
Indirect DM addresses
in BCD
*D0 to *D32767
Constants --- Specified values
only
---
Data Registers ---
Index Registers –
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR05+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
