CHAPTER 6 CALIBRATION
E5GN
6–2
6.1 Parameter Structure
Ă• To calibrate the E5GN, enter the password 1201" at the move to calĆ
ibration level" parameter in the advanced function setting level".
" is displayed.
Ă• However, note that the move to calibration level" parameter might not
be displayed when, for example, the user is calibrating the E5GN for the
first time. If this happens, set the initial/communications protection"
parameter in the protect level to 0" before moving to the advanced
function setting level".
Ă• The calibration mode is quit by turning the power OFF.

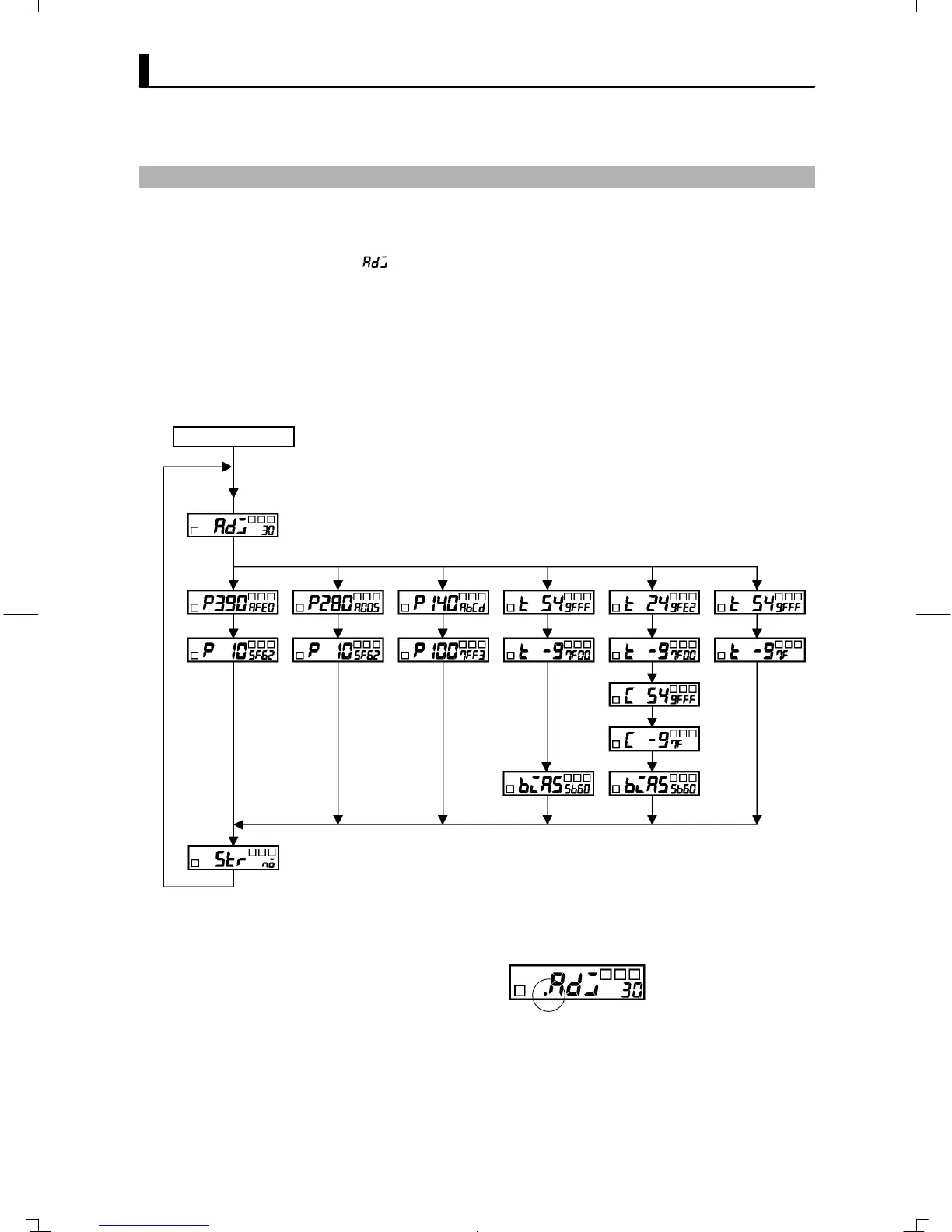

Ă• The parameters in the calibration level are structured as follows:
These parameters are automatically moved to according to the event input.
Advanced function setting
level
Once the user has calibrated the E5GN, a dot will be displayed when
the calibration level is moved to, to indicate that the E5GN has
already been calibrated by the user.
Dot is displayed.
