CHAPTER 3 BASIC OPERATION
E5GN
3–2
3.1 Initial Setup Examples
On previous controllers, sensor input type, alarm type and control period
were set by the DIP switches. These hardware settings are now set in
parameters in setup menus. The and keys are used to switch
between setup menus, and the amount of time that you hold the keys down
for determines which setup menu you move to. This section describes two
typical examples.
F Typical example 1
Input type : 0 K thermocouple -200 to
1300_C
Control method : ON/OFF control
Alarm type : 2 upper limit
Alarm value 1 : 20_C (deviation)
Set point : 100_C

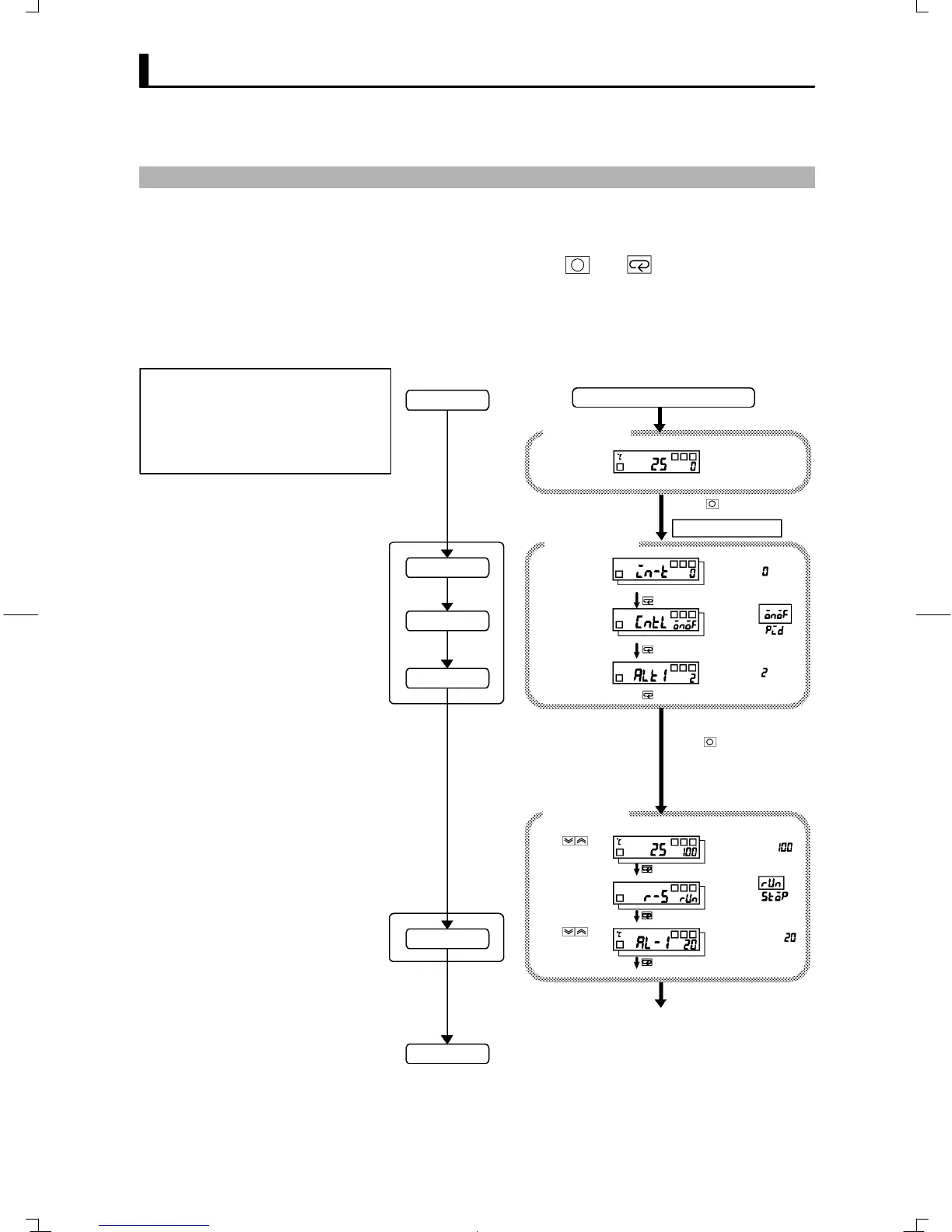

Setup procedure
Power ON
Initial setting level
Set input specifications
Set control specifications
Set alarm
type
Set alarm values
Operation level
Start operation
Power ON
Operation level
Initial setting level
Operation level
Process value/
set point
Input type
In ON/OFF
control
Alarm 1
type
Check input
type.
Check that con-
trol is ON/OFF
control.
Check alarm type.
Press key for at least
three seconds.
Control stops.
Process value/
set point
Make sure that
control is run-
ning.
Press key for at
least one second.
During run
During stop
Alarm value
1
Press keys
to set set point to
“100_C”.
Press key
s to set alarm
value to “20_C”.
Start operation
