Standby sequence reset
method
The alarm 1 type must be set to “with standby
sequence.”
Ă• This parameter selects the conditions for enabling reset after the standby sequence
of the alarm has been canceled.
Output is turned OFF when the initial setting level, communications setting level,
advanced function setting level or calibration level is switched to.
Ă• Condition A:
Control started (including power ON), and set point, alarm value (upper/lowerĆlimit
alarm value) or input shift value (upper/lowerĆlimit temperature input shift value)
changed
Ă• Condition B:
Power ON

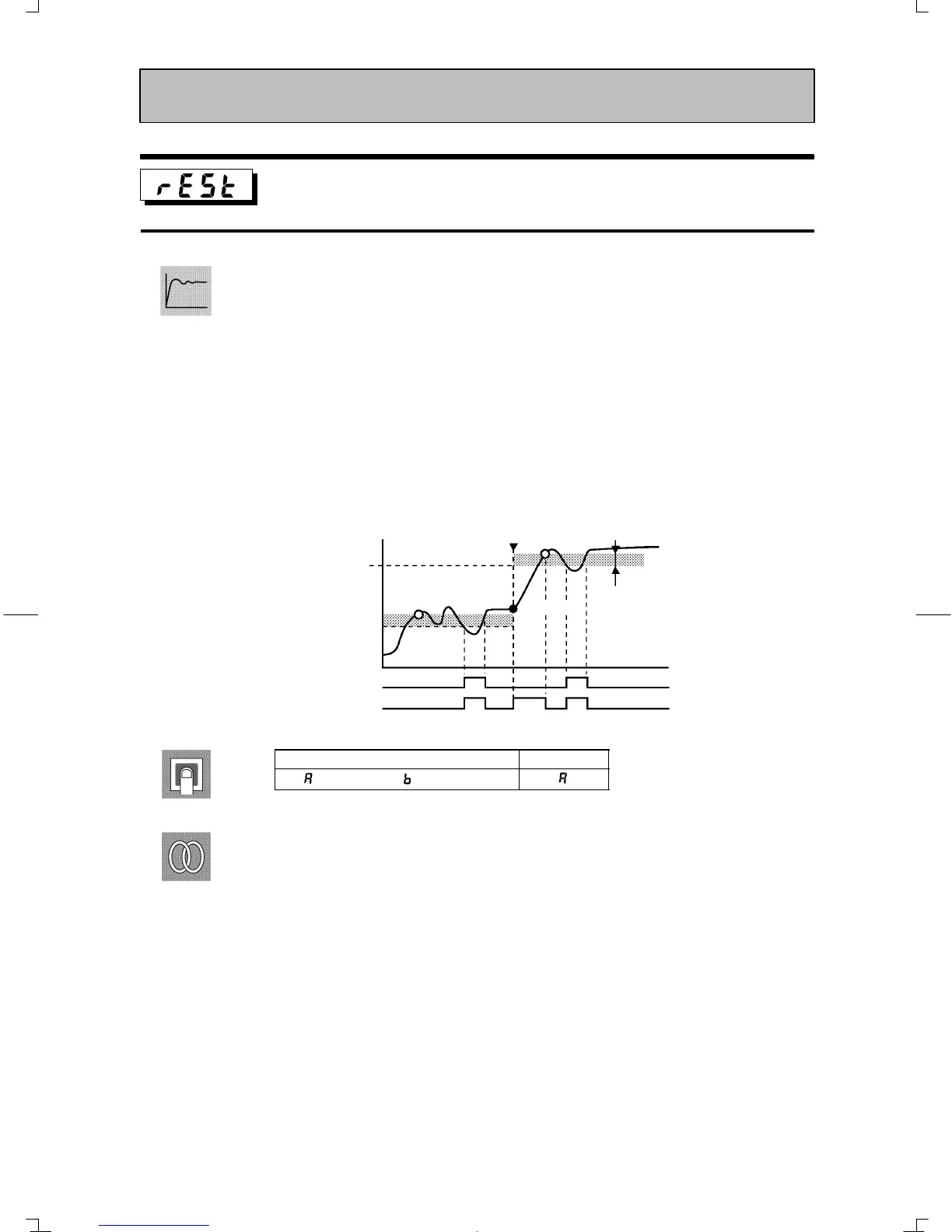

Ă• The following example shows the reset action when the alarm type is lowerĆlimit
alarm with standby sequence.
f: Standby sequence canceled point
F: Standby sequence reset point
Alarm output: Condition A
Alarm output: Condition B
Alarm point
(after change)
Alarm point
SP change
Condition A only
Alarm hysteresis
Condition A only
Setting Range Default
: Condition A / : Condition B
FĂRelated parameter
Alarm 1 type" (initial setting level)
Alarm 1 latch" (initial setting level)
